QUICK START GUIDE
Kinesis
Savant Elite2
®
Config App, Models FP30A, FP30AJ & FPW30A-IPX8
There is no software or special drivers to install — all you need is a USB port. The Savant Elite2
works with Windows, Mac, Android, and Linux. SmartSet Config App versions are onboard for
graphical programming in Windows & OSX. Visit the SE2 Resources page for full User's Manual
including how to program in Android and Linux: www.kinesis.com/savant-elite2-resources/.
LANGUAGE NOTE: You must use U.S. English keyboard driver when re-programming your device,
then switch back to your normal language.
DEFAULT CONFIGURATION

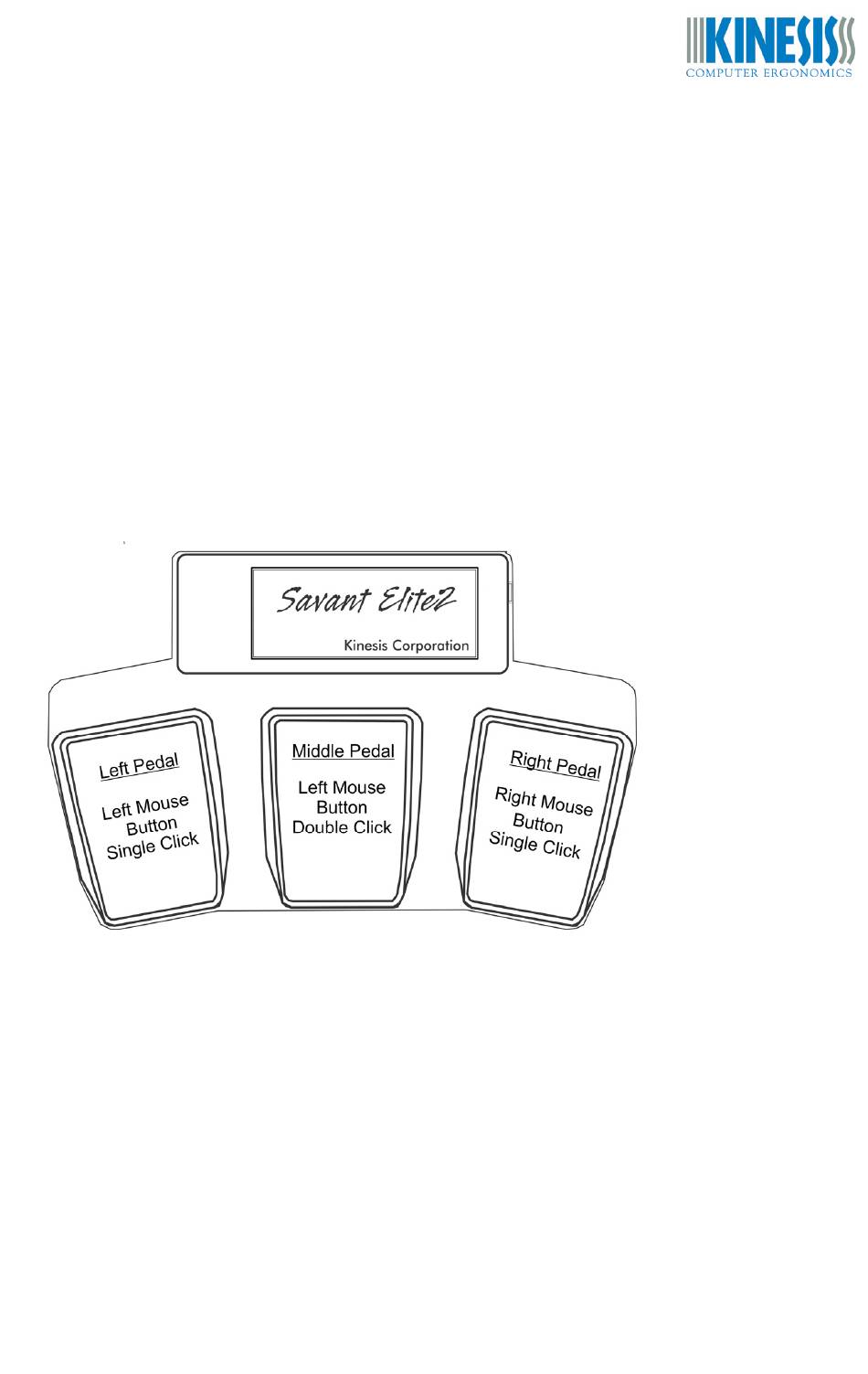

Your Savant Elite2 Triple Pedal comes with three or four factory-programmed actions:
To use your Savant Elite2 Triple Pedal with the factory-programmed actions:
1. Plug the USB cable into your computer.
2. The red LED will illuminate and a device installation notice will appear.
3. When the green LED illuminates, the device is ready to use with the pre-programmed actions.
4. To access Jack 1 on FP30AJ models, connect a Kinesis stand-alone foot pedal or hand trigger
(sold separately).
© 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are
trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
All manuals and user guides at all-guides.com
™
22030 20th Avenue SE, Suite 102, Bothell, Washington 98021 USA
sales@kinesis.com, 800-454-6374, www.kinesis.com
Triple Pedal & SmartSet
Jack 1 (FP30AJ Models Only)
Left Mouse Button Single Click
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kinesis Savant Elite 2 FP30A
Summary of Contents for Kinesis Savant Elite 2 FP30A
- Page 1 800-454-6374, www.kinesis.com © 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
- Page 2 The SmartSet app is preloaded onto each Savant Elite2 device (both Windows and Mac versions). The app resides on a virtual drive (v-drive™) named “KINESIS FP ” which is only accessible from your computer when the device is placed into Program Mode. No special installation is required other than the auto-install performed by your computer when you first activate Program Mode.
- Page 3 DEPRESS A PEDAL BRIEFLY WHILE PLUG- GING IN THE USB. The red LED will illuminate briefly. 2. Once the LED changes to flashing green, OPEN the “KINESIS FP ” drive. If you do not see an AutoPlay popup, look in “My Computer”...
- Page 4 2. If the Keyboard Setup Assistant pops up, CLOSE that win- dow or SKIP the setup. 3. Once the LED changes to flashing green, OPEN the “KINESIS FP ” drive. If you do not see the icon on the desktop, look in Finder >...
