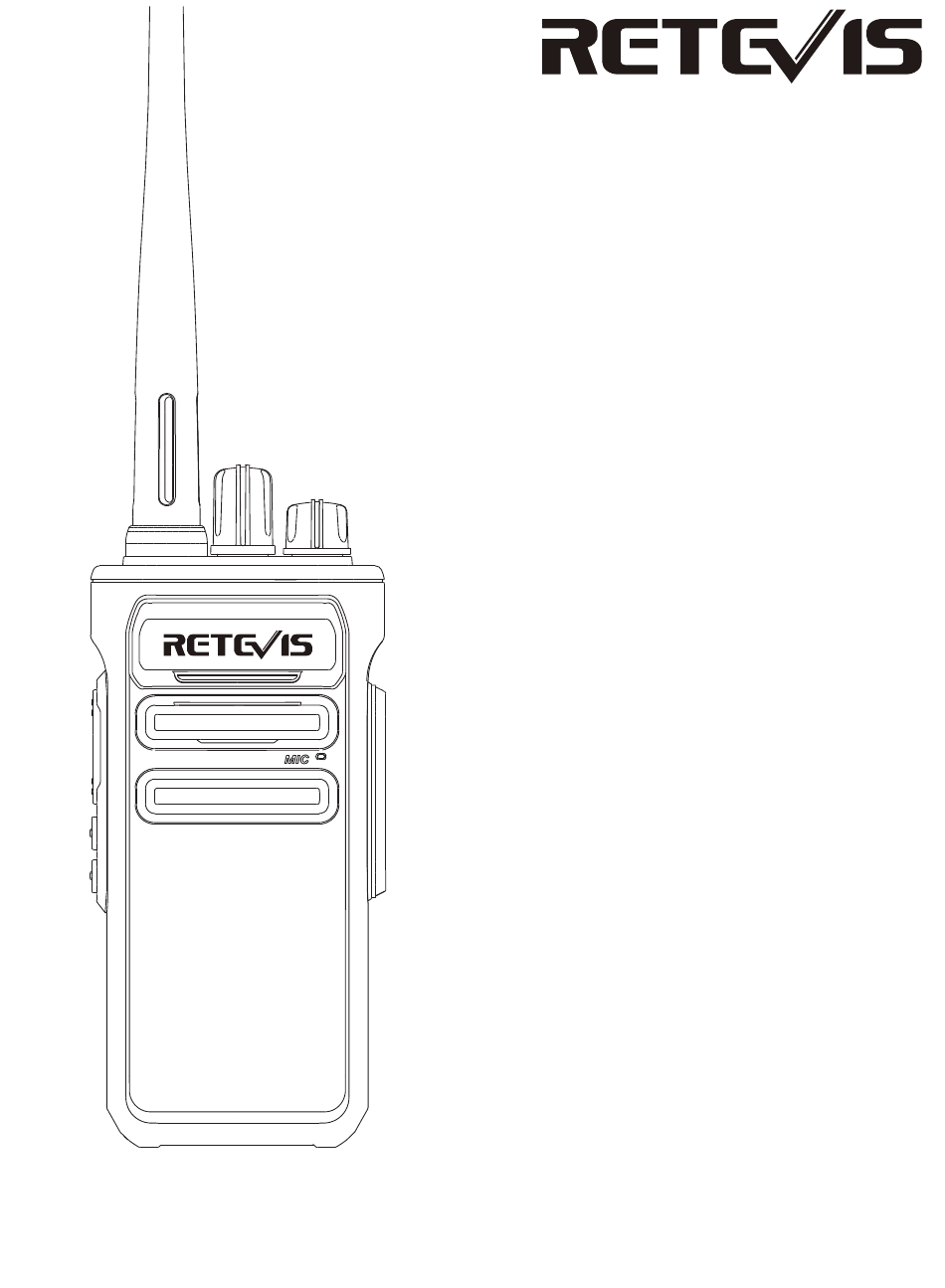

- Page 1 RB23 Wakie Talkie User’s manual...
- Page 2 Welcome to shopping our two way radios. We believe our product can bring great convenience to your life and work. Retevis two way radios are manufactured by using the advanced technologies, and We hope you will be satisfied with the quality and functionality of this product. This two way radio can give you a more convenient, fast, and reliable usage experience.
-
Page 3: Table Of Contents
CONTENT Unboxing and checking------------------------------------------------------------------------------------------- Getting Start----------------------------------------------------------------------------------------------------------- Familiar with the radio--------------------------------------------------------------------------------------------- Basic operations----------------------------------------------------------------------------------------------------- QT (50)------------------------------------------------------------------------------------------------------------------- DQT (116*2)------------------------------------------------------------------------------------------------------------ Parameter--------------------------------------------------------------------------------------------------------------... -
Page 4: Unboxing And Checking
Unboxing and checking Carefully unpack the transceiver. We recommend that you identify the items in the following table before discarding the packing material. If any item is missing or has been damaged during shipment, please contact the deliveryman or your seller. 1. -
Page 5: Familiar With The Radio
To remove the battery, please ensure that the Insert the top terminal vertexes of the battery into radio is off, and then push the battery latch button the slots in the radio battery slot, then press the at the bottom of the radio to the right. Remove the bottom of the battery until hear the snap sound. -
Page 6: Basic Operations
Press [PTT] button and speak to call, light red. Light red with alert when the channel is free. Release [PTT] button to receive, light green and speaker works. 5. Customize the side keys Program the side keys’ function on programming software of RB23. Short press [PF1] or [PF2]: A. Monitor B. Alert C. VOX D. VOX delay E. Scan Monitor: listen for calls on the chosen channel. - Page 7 caused by continuous transmission of the radio. If the transmission time exceeds the limit time, the radio will stop transmitting and prompt alert. Release [PTT] return to receive condition. 8. Scan When channels are set to scannable, rotate channel knob to one channel enter the scanning. If the current channel is 16, the radio can detect the signal from channel 1~30 (Scan function can be customized for each channel in the programming software).
-
Page 8: Dqt (116*2)
DQT (116*2) D032N D036N D043N D047N D050N D017N D023N D025N D026N D031N D053N D054N D055N D065N D071N D072N D073N D074N D114N D051N D115N D116N D122N D125N D131N D132N D134N D135N D143N D145N D172N D174N D205N D212N D217N D152N D155N D156N D162N D165N D225N... - Page 9 462.6625 462.6625 12.5KHz 136.5 462.6875 462.6875 12.5KHz 141.3 462.7125 462.7125 12.5KHz 146.2 467.5625 467.5625 0.5W 12.5KHz D243N 467.5875 467.5875 0.5W 12.5KHz D032N 467.6125 467.6125 0.5W 12.5KHz D047N 467.6375 467.6375 0.5W 12.5KHz D051N 467.6625 467.6625 0.5W 12.5KHz D053N 467.6875 467.6875 0.5W 12.5KHz D065N 467.7125...
- Page 10 Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
- Page 11 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
- Page 12 IC Requirements: Licence-exempt radio apparatus This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 13 •When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
- Page 14 Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. WARNING •For a list of Retevis-approved accessories for your radio model, visit the following website: http://www.Retevis.com...
- Page 15 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: 4.For warranty service, you will need to provide a receipt proof of...
- Page 16 Shenzhen Retevis Technology Co.,Ltd. Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/retevis...
- Page 17 装钉：胶合订...
