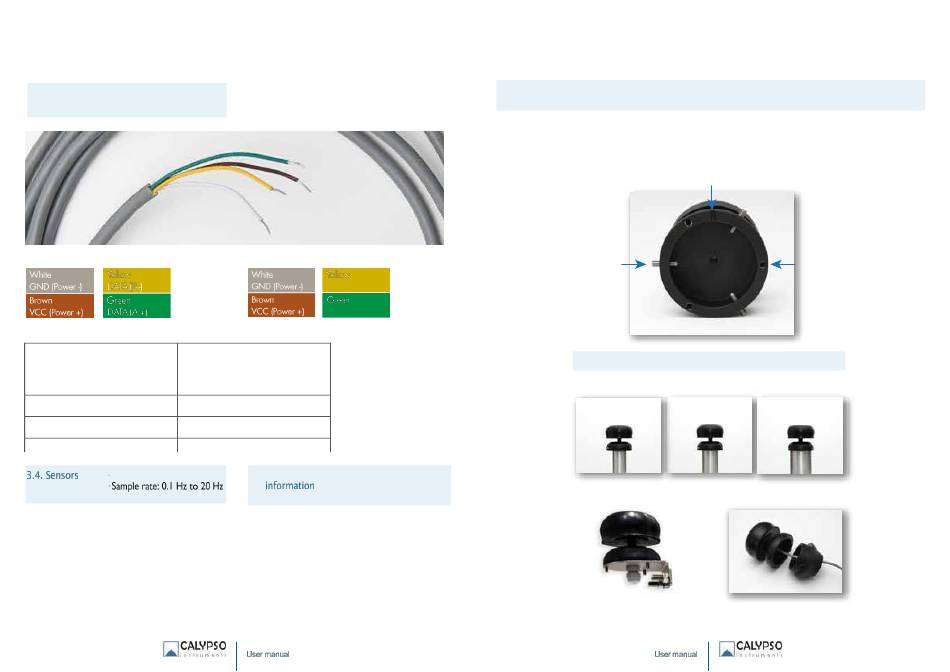

Calypso Instruments ULTRASONIC ULP User Manual page 3

3. Technical specifications
(continuation)
3.3. Power · 3,3-18V
ULP 485 has to be connected as is shown below:
RS485 Output:
Image 5. Cable connections.
1-Stream output
Data interface
2-POLL output
3- MODBUS
Data format NMEA0183
Baudrate 2400 to 115200 bauds
Voltage range 3,3-18V
Ultrasonic transducers (4x)
The ULP has been designed to avoid any
mechanical parts to maximize reliability and
minimize maintenance.
The transducers communicate between themsel -
ves two by two using ultrasonic range waves. Each
couple of transductors calculates the signal delay
and gets information about both, wind direction
and wind speed.
UART/TTL Output:
DATA Rx
DATA Tx
3.5. Wind · Windspeed
· Wind direction
Wind speed
Range: 0- 45 m/s
Accuracy: ±0.1 m/s at 10m/s
Wind direction
Range: 0- 360°
Accuracy: ± 1°
ULTRASONIC ULP
3.6 Easy mount
Lateral and inferior female thread. It can be mounted either on a plate (inferior screws) or on a tube
(lateral screws).
North mark position
Make sure the north mark is perfectly aligned
M4x0,5
Mounting accessories
Pole mount up to 52 mm
Flat mount
ULTRASONIC ULP
- 3 x M4 lateral female thread
- 3 x M4 inferior female thread
M4x0,5
Adapter to Poles up to 39mm
