Furuno MU-270W Installation Setting

[INSTALLATION SETTING] menu

The [INSTALLATION SETTING] menu appears only when the power is turned on for the first time
after installation.
INSTALLATION SETTING
EXT BRILL CTRL
SERIAL BAUDRATE
COLOR CALIBRATION
KEY LOCK
SAVED AND EXIT
For FMD-3x00 and FAR-3xx0 series, no adjustment is necessary. Keep this equipment in the de-
fault settings as below.
Connected Connected
equipment Unit
FMD-3x00, EC-3000
FAR-3xx0 ser.
*: "DVI PWR SYNC" is the slide switch at the bottom rear of the monitor unit. See the "Slide switch"
below.

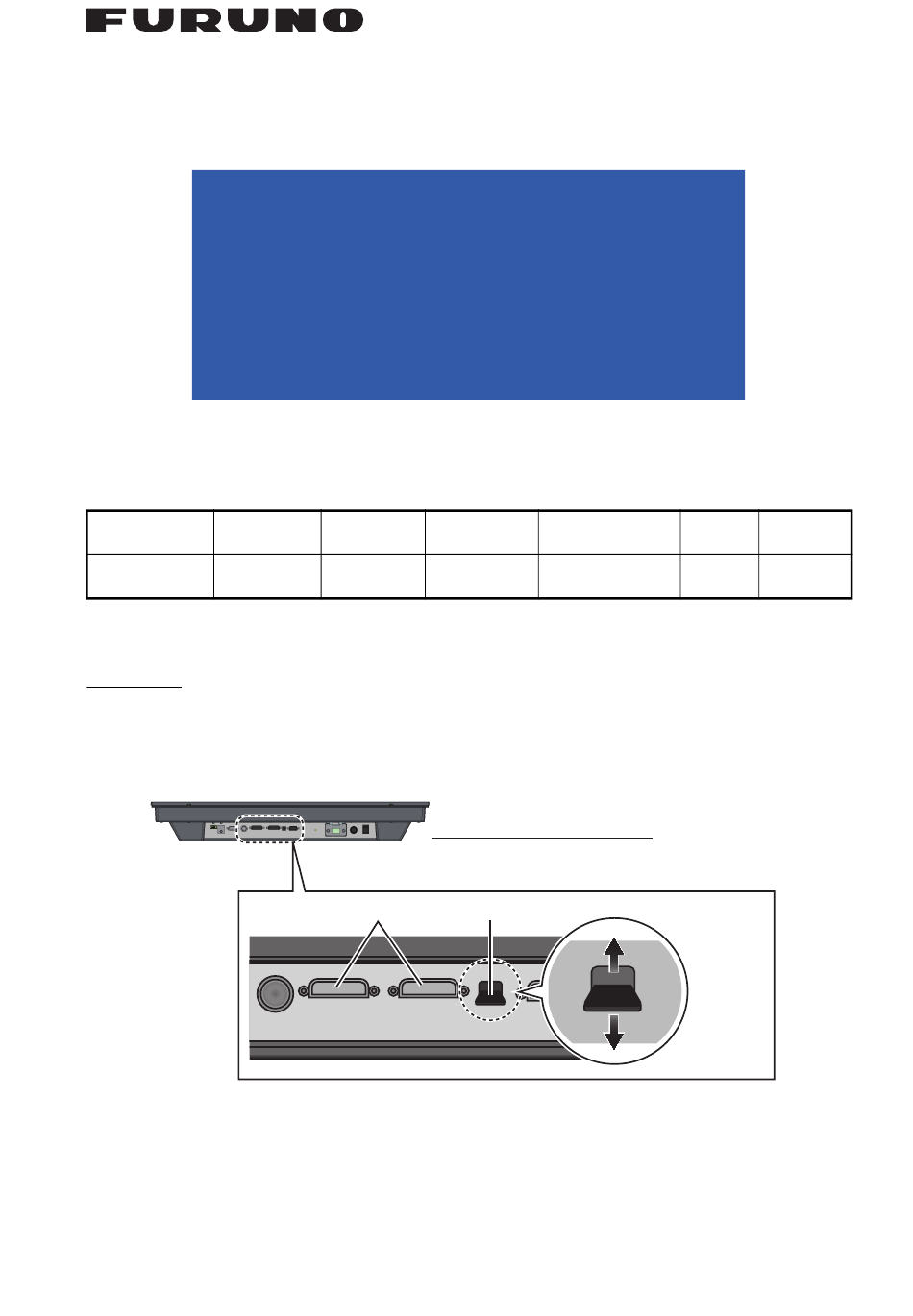

Slide switch

The slide switch is set to ON at the factory to allow for power control from external DVI signals. To
connect RGB or RGB and DVI signals, set the slide switch (located between the RGB and DVI
ports) to OFF. Otherwise the monitor will not turn on.
RS-485 (OFF/DVI1/DVI2/RS-232C/RS-485/USB)
4800bps (4800/9600/19200/38400)
ON (OFF/ON)
ON (OFF/ON)
YES (NO/YES)

[INSTALLATION SETTING] menu

EXT BRILL SERIAL
CTRL BAUDRATE
RS-485 4800
Bottom rear of the monitor unit
DVI port Slide switch Slide switch
COLOR KEY
CALIBRATION LOCK
ON ON
OFF OFF
ON (Default setting) ON (Default setting)
For MU-270W
DVI PWR
SYNC *
ON
