Install the Access Point

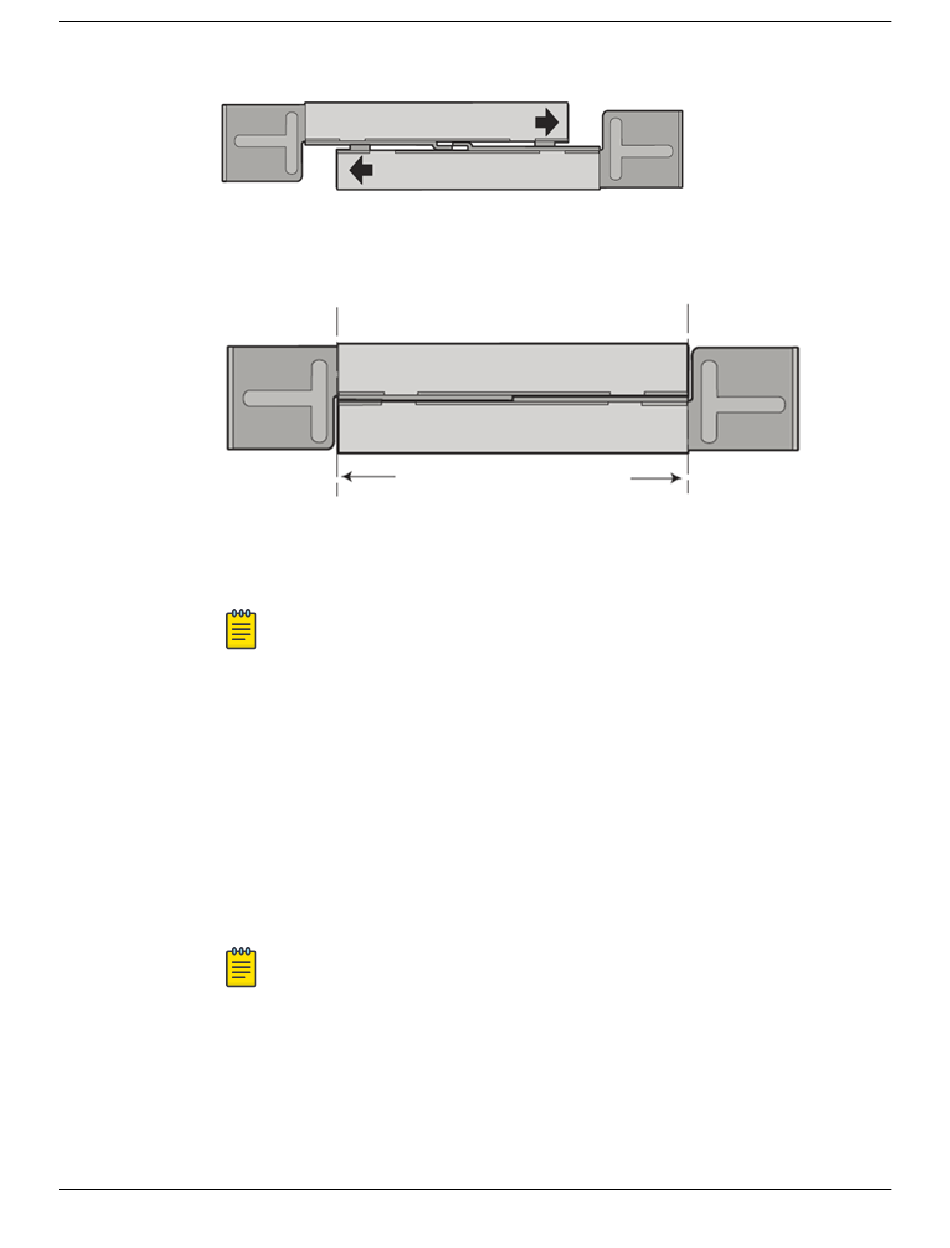

Figure 4: Bracket halves attachment procedure
c. When the locking tabs click into place, the bracket ends will line up.
Figure 5: AH-ACC-BKT-AC-KIT protruded ceiling tile bracket parts attached
together
3. Using the bracket guide on the top half of the AH-ACC-BKT-AC-KIT, align and attach the -KIT on the
ceiling rail.
a. Align the -TB accessory back metal hinges on the bottom half of the AH-ACC-BKT-AC-KIT.
b. Rotate the -TB accessory clockwise until the metal hinges hook over the -KIT bracket part and
clicks in place.
4. If you are not using the AH-ACC-BKT-AC-KIT, attach the -TB accessory directly onto the ceiling rail.
a. Align the accessory on the ceiling rail in such a way that the accessory metal hinges are almost
parallel to the sides of the ceiling rail.
b. Rotate the accessory clockwise until the metal hinges hook over the edge of the rail and the
white tabs click in place.
Note
When the bracket parts are put together properly, the parts are interlocked in three
places and is locked together as a single piece.
Note
There are two white tabs in the back of the accessory that holds on to the ceiling rail in
place. Use your finger to push and unhook one side of the white tab if you want to
remove the accessory from the ceiling rail.
