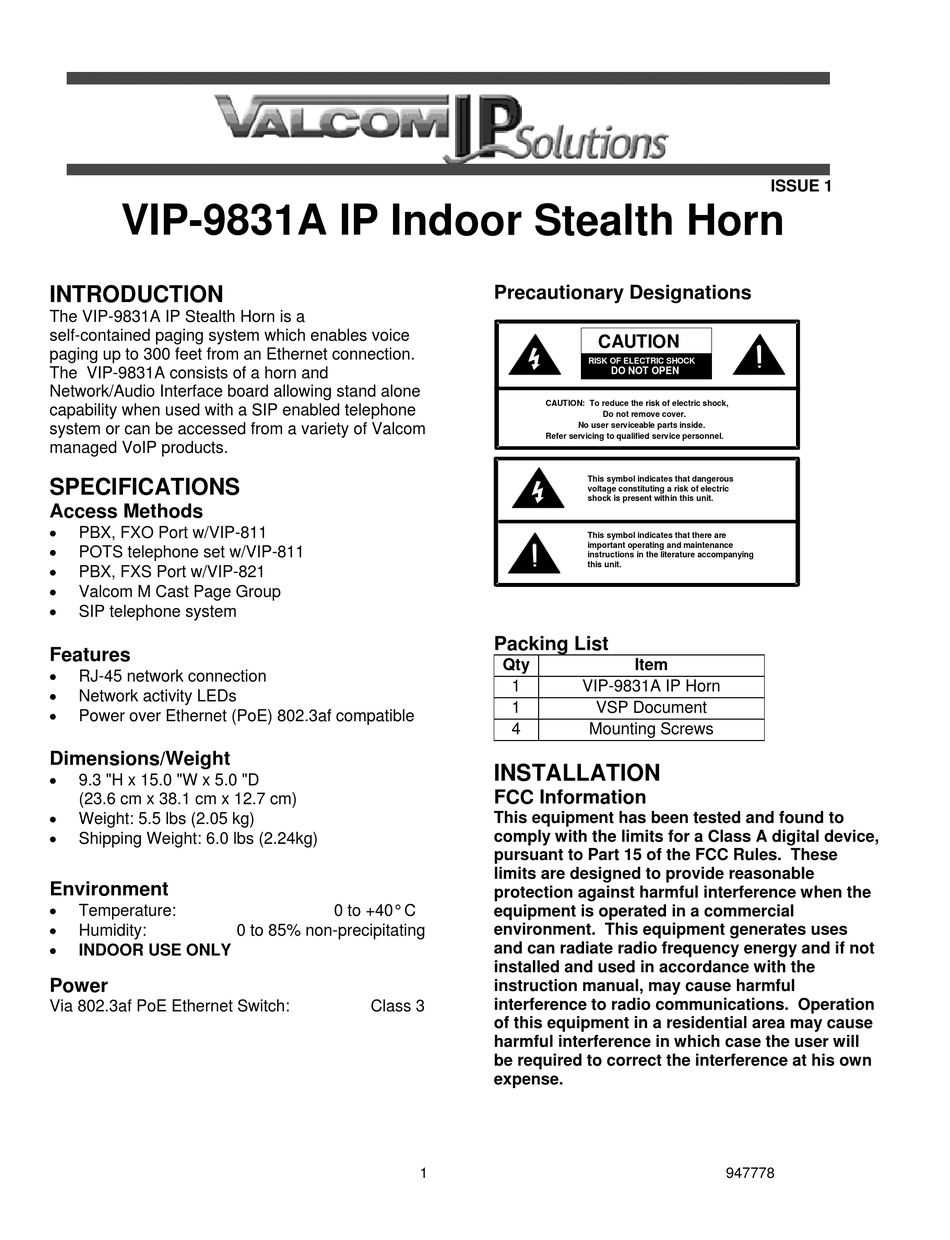

VIP-9831A IP Indoor Stealth Horn
INTRODUCTION

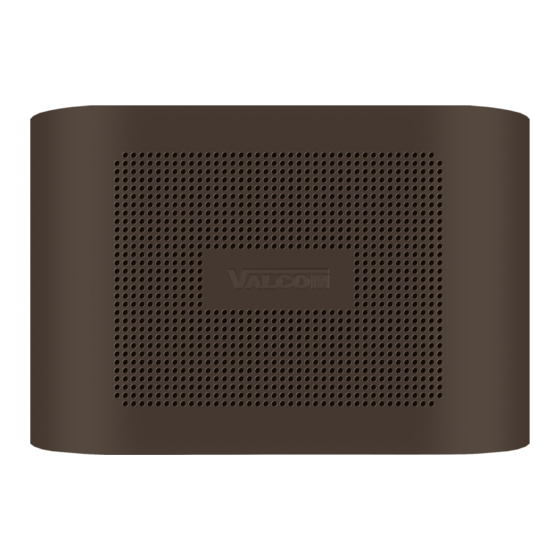

The VIP-9831A IP Stealth Horn is a
self-contained paging system which enables voice
paging up to 300 feet from an Ethernet connection.
The VIP-9831A consists of a horn and
Network/Audio Interface board allowing stand alone
capability when used with a SIP enabled telephone
system or can be accessed from a variety of Valcom
managed VoIP products.
SPECIFICATIONS
Access Methods

PBX, FXO Port w/VIP-811

POTS telephone set w/VIP-811

PBX, FXS Port w/VIP-821

Valcom M Cast Page Group

SIP telephone system
Features

RJ-45 network connection

Network activity LEDs

Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight

9.3 "H x 15.0 "W x 5.0 "D
(23.6 cm x 38.1 cm x 12.7 cm)

Weight: 5.5 lbs (2.05 kg)

Shipping Weight: 6.0 lbs (2.24kg)
Environment

Temperature:

Humidity:

INDOOR USE ONLY
Power
Via 802.3af PoE Ethernet Switch:
0 to +40° C
0 to 85% non-precipitating
Class 3
Precautionary Designations
RISK OF ELECTRIC SHOCK
CAUTION: To reduce the risk of electric shock,
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Packing List
Qty
1 VIP-9831A IP Horn
1
4
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates uses
and can radiate radio frequency energy and if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area may cause
harmful interference in which case the user will
be required to correct the interference at his own
expense.
1
CAUTION
DO NOT OPEN
Do not remove cover.
Item
VSP Document
Mounting Screws
947778
ISSUE 1
