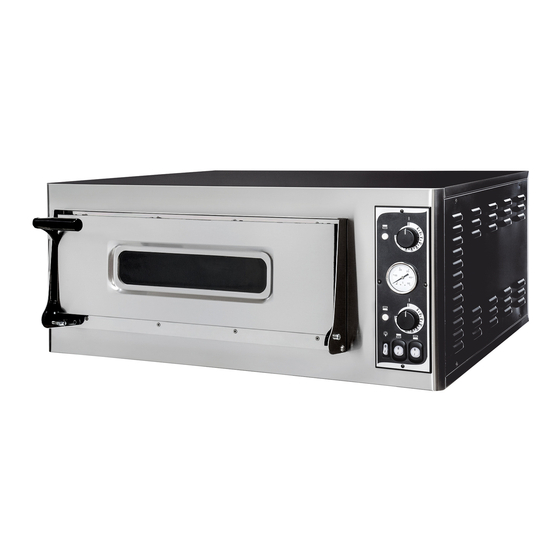

- Page 1 INSTRUCTIONS FOR USE AND MAINTENANCE ELECTRIC OVENS FOR PIZZA BASIC 4/44G ENGLISH...
- Page 3 WARNING! BEFORE SWITCHING ON THE OVEN: REMOVE THE POLYSTYRENE. ATTENZIONE! TOGLIERE IL POLISTIROLO PRIMA DI ACCENDERE. ВНИМАНИЕ! ПЕРЕД ВКЛЮЧЕНИЕМ ПЕЧИ: ИЗВЛЕЧЬ ПОЛИСТИРОЛ. ATTENTION! AVANT D’ALLUMER LE FOUR ENLEVER LE POLYSTYRENE. ATENCION ! ANTES DE ENCENDER EL HORNO RETIRAR EL POLIESTIRENO. ACHTUNG! BITTE DAS POLYSTYROL VOR DEM EINSCHALTEN DES OFENS ENTFERNEN.
-
Page 4: Table Of Contents
INDEX 1- “CE” DECLARATION OF CONFORMITY AND MARKING 1.1- “CE” marking ................. p. 5 2– GENERAL INFORMATION 2.1- The importance of the manual ............... p. 5 2.2- Status of “turned off oven” ..............p. 5 2.3- Warranty ..................p. 5 3–... -
Page 5: Ce" Marking
1—DECLARATION OF CONFORMITY AND MARKING 1.1- “CE” MARKING The “CE” marking consists of a gray lable applied on the back of the oven. The plate bears in readable and indelible way the following data: - Name of the manufacturer; - Serial number ; - CE marking;... -
Page 6: 3-Technical Descriptions
3—TECHNICAL DESCRIPTIONS 3.1 TECHNICAL DATA... -
Page 7: Destination Of Use
3—TECHNICAL DESCRIPTIONS 3.2– DESTINATION OF USE The foreseen use for which this oven has been designed and produced is the following FORESEEN USE: PIZZA BAKING, GRATINATING OF GASTRONOMY PRODUCTS AND HEATING OF FOODSTUFF IN BAKING PANS. THE OVEN CAN BE USED EXCLUSIVELY BY AN AUTHORIZED OPERATOR (USER). THIS APPLIANCE INTENDED... -
Page 8: Electric Connection
4—INSTALLATION 4.2– ELECTRIC CONNECTION ELECTRIC CONNECTION OVEN MAINS MUST COMPULSORILY EXCLUSIVELY PERFORMED AUTHORIZED TECHNICIAN (ELECTRICIAN) SATISFYING THE TECHNICAL AND PROFESSIONAL REQUIREMENTS STATED BY THE REGULATIONS IN FORCE IN THE COUNTRY OF USE OF THE OVEN, WHO MUST ISSUE A DECLARATION OF CONFORMITY FOR THE INTERVENTION PERFORMED. -
Page 9: Terminal Box
4—INSTALLATION 4.3– TERMINAL La terminal is placed internally of the oven. yellow/green yellow/green blue blue brown brown SINGLE PHASE PIC. A yellow/green yellow/green blue blue grey black brown brown THREE PHASE PIC. B Oven type N. of cables Section (mm²) Single phase, one chamber Single phase, two chambers and versions 9 single phase Three phase one chamber and two chambers... -
Page 10: 5- Use And Functioning
5– USE AND FUNCTIONING 5.1– CONTROL PANEL The control panel is installed on the front side of the oven as shown below: PIC.1 Control panel LEGEND PIC.1 REF. DENOMINATION FUNCTION Warning light If lighted, it signals the operation of the resistor in use. •... -
Page 11: First Commisioning
5– USE AND FUNCTIONING 5.2– FIRST COMMISSIONING Before the ignition of the oven remove the protective film without using tools that can damage the surfaces. DESPITE THE THERMAL POTENTIALITIES OFFERED BY THE OVEN, FOR SAFETY PURPOSE THE MAXIMUM ALLOWED TEMPERATURE IS 500°C AND CAN BE SELECTED BY MEANS OF THE TIMERS. -
Page 12: Turning Off Oven
5- USE AND FUNCTIONING 5.4– TURNING OFF THE OVEN Once the use of the oven has ended, proceed as follows: Turning off the oven bringing the knobs that regulate the thermostats in pos.”0” (PIC.1 - Ref.2); 6– MAINTENANCE BEFORE PERFORMING ANY TYPE OF MAINTENANCE INTERVENTION, IT IS COMPULSORY TO DISCONNECT THE PLUG OF THE OVEN FROM THE POWER SUPPLY OUTLET. -
Page 13: 8-Spare Parts
8—SPARE PARTS 8.1 - SPARE PARTS BASIC BASIC DESCRIPTION Door Handle 5M200030 5M200030 Small lateral door handles Door Glass 5V010015 5V010015 Door glass gasket 5G100001 5G100001 Lamp holder 5P110003 5P110003 Lamp glass 5V010003 5V010003 Lamp 5L020005 5L020005 Thermostat 5T010001 5T010001 Thermostat knob 5M200003 5M200003... -
Page 14: Exploded View
8—SPARE PARTS 8.3–EXPLODED VIEW: MOD. BASIC... -
Page 15: 9-Electric Equipment
9-ELECTRIC EQUIPMENT 9.1 LIST OF COMPONENTS MARK DESCRIPTION Single (1) pole thermostat Three (3) poles thermostat Heating elements on/off switch Heating elements spy light QF0/1 Chamber light on/off switch Contactor Timer... -
Page 16: Wiring Diagrams
9– ELECTRIC EQUIPMENT...
