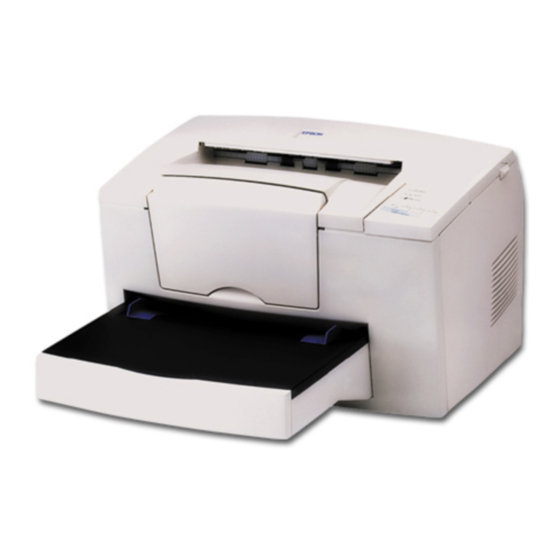

Page 1 Laser Printer Reference Guide 4011133 C01-00...
Page 2: Printer Parts
Printer Parts printer cover latch power switch manual feed slot paper path selector USB interface connector ready light (green) error light (red) extension output tray Parallel interface connector paper-tray AC inlet...
Page 3: Laser Printer
Neither is any liability assumed for damages resulting from the use of the information contained herein. Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly...
Page 4: Declaration Of Conformity
Model: Conforms to the following Directive(s) and Norm(s): Directive 89/336/EEC: Directive 73/23/EEC: October 1999 Y. Ishii President of EPSON EUROPE B.V. SEIKO EPSON CORPORATION 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392 Japan EPSON EUROPE B.V. Prof. J. H. Bavincklaan 5 1183...
Page 5: Table Of Contents
Ready and Error lights ........1-2 Controlling the Printer ........1-2 Accessing the printer driver .
Page 6 Chapter 3 EPSON Status Monitor 3 Utility About the EPSON Status Monitor 3 ..... . . 3-2 Environment for EPSON Status Monitor 3 ... . . 3-2 Accessing the EPSON Status Monitor 3 .
Page 7 Cleaning the Printer ........
Page 8 Index...
Page 9: Getting Started
Chapter 2, “Using Options,” gives step-by-step instructions for installing the options available for the printer. Chapter 3, “EPSON Status Monitor 3 Utility,” allows you to view printer status information such as the remaining amount of toner and check for any printer errors.
Page 10: About Your Printer
Appendix B, “Contacting Customer Support,” explains customer support information. About Your Printer Your printer is the latest in EPSON’s advanced line of laser printers. The printer’s 600/300-dpi (dots per inch) resolution is enhanced by EPSON’s Resolution Improvement Technology (RITech), which smooths the jagged edges of diagonal and curved lines in both text and graphics.
Page 11: Options
High-quality printing Your printer provides 600/300-dpi printing at a speed of up to eight pages per minute. You’ll appreciate the professional print quality produced by your printer and its quick processing speed. Toner Save Mode To reduce the amount of toner used in printing documents, you can print drafts using the Toner Save Mode.
Page 12 Getting Started...
Page 13 Controlling the Printer ........1-2...
Page 14: Ready And Error Lights
The ready (green) and error (red) lights on the top of the printer indicate the printer status. Whether the lights are flashing or not indicates different things, as described below. More detailed information can be found in the Alert window in the EPSON Status Monitor 3. Ready Light...
Page 15: Accessing The Printer Driver
To access the printer driver from Windows 98/95 and Windows NT 4.0, click Start, point to Settings, and click Printers. Next, right-click the EPSON EPL-5700L/EPL-5700i Advanced icon and click Properties (in Windows 98/95) or Document Defaults (in Windows NT 4.0).
Page 16: Note For Using Shared Printers In Windows Nt 4.0
First, you need to set up the printer as a shared printer on the computer to which the printer is connected. Then, you must specify the network path to the printer from each computer that will use it, and install the printer software on those computers.
Page 17 To access your printer from another computer on the network, follow these steps. Note: Your printer must be set up as a shared resource on the computer to which it is directly connected before you can access it from another computer.
Page 18 1. Install the printer driver to the client computer from the software CD-ROM. 2. Open the Printer folder from the Control Panel, then open the Properties for your printer. 3. Click the Ports tab, then click Add Port. Using Your Printer...
Page 19 4. The following dialog box appears. Select Local Port, then click New Port. 5. The following dialog box appears. In the text box, type the following information: \\name of computer that is connected to the printer\name of the shared printer Then click OK. Using Your Printer...
Page 20 6. In the Printer Ports dialog box, click Close to return to the Ports menu. 7. On the Ports menu, make sure that the new port is added and the check box is selected. Click OK to close the printer driver.
Page 21: Using The Dma
Using the DMA Faster printing with a Direct Memory Access (DMA) is possible if your printer is connected to your computer through an Extended Capability Port (ECP), a type of parallel port with expanded specifications. With the DMA and the ECP, you can send print-job data directly to the printer without going through the CPU, which increases the effectiveness of data flow.
Page 22: Paper Handling
Paper Handling The printer can feed paper from either of two sources: the standard paper-tray or the optional lower cassette. Please note the following points: Paper should be high quality and relatively smooth with a weight between 60 and 90 g/m² (16 to 24 lb).
Page 23 Insert the paper printable side up into the tray and adjust the paper guides. Note: Before printing make sure the Paper Size setting in your printer driver matches the paper you load. 3. Place the cover on the paper-tray.
Page 24 Insert a single sheet with the printable side up, as far as it will go into the manual feed slot above the paper-tray cover. Adjust the paper guides to match the paper size you are using. 1-12 Using Your Printer...
Page 25: Printing On Special Media
Note: Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot guarantee the quality of any type of paper. Always test samples of paper stock before purchasing large quantities or printing large jobs.
Page 26: Optimizing Print Quality
Optimizing Print Quality Using RITech Resolution Improvement Technology (RITech) is EPSON’s original printer technology that improves the appearance of printed lines, text, and graphics. The RITech setting The factory setting for RITech is on. The RITech gives the best quality text and graphics for nearly all purposes.
Page 27: Adjusting Print Density
Increasing the print density increases toner consumption. If you select darker print, you may need to replace the developer cartridge more often. Enhanced MicroGray Enhanced MicroGray (Enh. MG) is EPSON’s new printer technology created especially for high quality output of photos and other images with smooth tonal changes.
Page 28 1-16 Using Your Printer...
Page 29 Printer Options........
Page 30: Printer Options
Printer Options You can add to your printer’s capabilities by installing any of the following options: 500-Sheet Lower Cassette Unit (C81287 for A4 size paper, C81288 for Letter size paper) increases paper feeding capacity, up to 500 sheets of paper.
Page 31: Installing
3. Remove all interface cables from the interface connectors. 4. Make sure the printer and cassette are facing the same way. Lift the printer and align the pins on the cassette with the holes on the bottom of the printer. Then, lower the printer until it rests securely on the Lower Cassette Unit.
Page 32: Loading Paper
Printer Driver by selecting the Optional Settings tab under Properties, and Macintosh users can check the memory installation in the EPSON Status Monitor 3. Be sure to select the paper source in your application program. Since the selection method varies from application to application, see your software documentation for more information.
Page 33: Face-Up Tray
4. Insert the paper-tray in the paper cassette. Face-up Tray The printer normally outputs paper face down on top of the printer. If you want face-up output, you can install the optional Face-up Tray (C81286 ). This tray gives you immediate viewing...
Page 34: Using
Using The printer is factory set for face-down output. After installing the Face-up Tray, you can switch the paper path from face-up to face-down. The selector is located on the right side of the printer near the back. Using Options...
Page 35: Memory Module
2. Unplug the power cord from the electrical outlet. 3. Turn the printer so that its right side faces you. 4. Open the printer cover by pressing the latch on the left side of the printer. 26 mm (1.02...
Page 36 5. Remove the printer’s side cover by lifting the clip and sliding the side cover backward. Then lift the side cover away from the printer. Using Options...
Page 37 6. Loosen the retaining screws securing the shield cover, and remove the cover. Caution: Before you install the module, be sure to discharge any static electricity by touching the printer’s shield cover. Otherwise, you may damage static-sensitive components. Using Options...
Page 38 7. Insert the SIMM module into the RAM slot at an angle, making sure the pin numbers either 1 or 72 of the slot and the SIMM match. 8. Press the module down until it clicks into place at right angles to the slot.
Page 39 After installing the printer driver, you can confirm the optional memory is installed correctly. Windows users can check in the Printer Driver by selecting the Optional Settings tab under Properties, and Macintosh users can check the memory installation in the EPSON Status Monitor Using Options 2-11...
Page 40: Removing
If an incorrect amount of memory is shown on the status sheet, turn off the printer and review the steps above to make sure you correctly installed the SIMM. If the amount of memory is still incorrect, contact your dealer or a qualified service person for assistance.
Page 41 EPSON Status Monitor 3 Utility About the EPSON Status Monitor 3 ......3-2 Environment for EPSON Status Monitor 3 ....3-2 Accessing the EPSON Status Monitor 3 .
Page 42: About The Epson Status Monitor 3
About the EPSON Status Monitor 3 EPSON Status Monitor 3 is a utility program that monitors your printer and gives you information about its current status, including the amount of remaining toner. If a print error occurs, the Status Monitor also provides you with a message describing the error.
Page 43 Windows shared printer To monitor a shared printer from the client through the server machine, select Allow monitoring of shared printer in the Monitoring Preference dialog box in the server machine. For information, see “Setting Monitoring Preferences” on page 3-9.
Page 44: Accessing The Epson Status Monitor 3
Settings. Then click the Enable bi-directional support for this printer radio button. Accessing the EPSON Status Monitor 3 EPSON Status Monitor 3 monitors the printer during printing or when the EPSON Status Monitor 3 dialog box is opened. For Windows users Follow these steps to access EPSON Status Monitor 3.
Page 45: For Macintosh Users
Status Alert window to stop monitoring some errors. For Macintosh users You can find the EPSON Status Monitor 3 for EPL-5700L and EPL- 5700i by selecting the EPSON Status Monitor 3 (alias) in the Apple menu. EPSON Status Monitor 3 Utility...
Page 46: Getting Printer Status Details
The appropriate printer port must be selected in the Chooser to receive the necessary information from the selected printer driver when the EPSON Status Monitor 3 starts. If the printer port is not correct an error will occur. If you change the printer driver in the Chooser, while the spool file is being printed in background printing, the output to the printer may be disrupted.
Page 47 Optional cassettes are displayed only if they are installed. Displays the amount of toner remaining. The toner icon flashes when the toner is low (10 percent or less). Displays the Photoconductor unit’s remaining functional life. EPSON Status Monitor 3 Utility...
Page 48 Text box: Close button: Simple display Paper: Toner: EPSON Status Monitor 3 Utility The image at the upper left shows the printer status graphically. The text box next to the printer image displays the current status of the printer. When a problem occurs, the most likely solution is displayed.
Page 49: Setting Monitoring Preferences
Life: Setting Monitoring Preferences For Windows users To make specific monitoring settings, click the Monitoring Preferences button in the Utility menu of the printer driver’s properties dialog box. The Monitoring Preferences dialog box appears. Note: This utility is only available in Windows.
Page 50 EPSON Status Monitor 3 dialog box. To monitor shared printer, check this box. You need to make this setting with EPSON Status Monitor 3 on the server. Saves new changes. Cancels any changes. Opens the Help screen of the Monitoring...
Page 51: Status Alert Window
OK button. For Macintosh users The EPSON Status Monitor 3 automatically appears when a problem occurs with your printer, if background printing is ON. EPSON Status Monitor 3 Utility...
Page 52: Stopping Monitoring (Windows Only)
If you clear the Monitor the Printing Status check box, the Alert window no longer notifies you when errors occur; however, you can still monitor the current printer status by clicking the EPSON Status Monitor 3 icon on the Utility menu.
Page 53 Option problems ........4-18 Problems Using EPSON Status Monitor 3 ....4-19...
Page 54: Problems And Solutions
Whether the lights are flashing or not indicates different things, as described below. The StatusAlert window in the EPSON Status Monitor 3 utility indicates what type of error has occurred and offers you a possible solution.
Page 55: Preventing Paper Feed And Paper Jam Problems
Clearing paper jams The printer stops and the error light (red) is flashing The following steps describe how to remove paper when it is jammed in the manner shown. Other types of paper jams are described later in the chapter.
Page 56 2. Open the printer cover by pressing the latch on the left side of the printer and lifting the cover up all the way. Warning: Opening the printer cover exposes the fuser, which is marked CAUTION Hot Surface Avoid Contact. Be careful not to touch the fuser.
Page 57 3. Remove the developer cartridge. Caution: When removing the developer cartridge, never touch the developing roller under the flap; otherwise, the print quality may be impaired. Troubleshooting...
Page 58 4. Remove the photoconductor unit. Caution: Never touch the photoconductor unit’s light-sensitive drum; otherwise, the print quality may be impaired. Troubleshooting...
Page 59 5. Remove any paper from the paper path. Note: If paper is jammed at the fuser, grasp the bottom of the paper and pull it out. 6. Reinstall the photoconductor unit, then the developer cartridge. Troubleshooting...
Page 60 Printing automatically restarts from the page that jammed. If the error light (red) continues flashing after removing all jammed paper, open and close the printer cover to clear the error. Feed Jams Note: Feed jams are shown in the illustration below.
Page 61 2. Carefully remove all the paper from the paper-tray along with any sheets that have fed part way into the printer. 3. Open the printer cover. Be sure to remove any pieces of paper that may have torn off or are remaining in the printer.
Page 62 5. Close the printer cover. The jammed page’s print data is automatically reprinted. Feed Jam when using the optional 500-Sheet Lower Cassette Unit Note: When a feed jam occurs, the jammed paper looks like the illustration below. 1. Remove the cassette from the 500-Sheet Lower Cassette Unit.
Page 63 (C81288 ) accomodates Letter size paper. Also make sure you are using paper that meets the specifications for this printer. 6. Reinstall the cassette to the 500-Sheet Lower Cassette Unit. 7. Open then close the printer cover. The jammed page’s print data is automatically reprinted. 4-11...
Page 64: Operational Problems
Getting Ready guide. The interface cable may not be plugged in securely. Check both ends of the cable between the printer and the computer. Be sure to secure the connector using the wire retaining clips. Make sure you use a double-shielded, twisted-pair interface cable no more than six feet in length.
Page 65: Printout Problems
Make sure both ends of the interface cable are plugged in securely. Make sure you use a double-shielded, twisted-pair interface cable no more than six feet in length. If the printer still does not print correctly, contact your dealer or a qualified service person. Position of the printout is not correct Make sure you are using the correct page length, margin settings and offset settings in your software program.
Page 66 You may not be using the correct type of paper for your printer. If the surface of your paper is too coarse, printed characters may appear distorted or broken. Smooth, high-quality copier paper is recommended for best results. See “Specifications” on page A-2 for information on choosing paper.
Page 67 Your paper may be moist or damp. Do not store your paper in a humid or damp environment. You may not be using the correct type of paper for your printer. If the surface of your paper is too rough, printed characters may appear distorted or broken.
Page 68 Completely blank pages If, after checking the toner status in the EPSON Status Monitor 3, the Toner LOW message indicates that the amount of toner is low, see “Replacing the developer cartridge” on page 5-2.
Page 69 The problem may be with your software program or interface cable. Print out a status sheet through the printer driver. If blank pages continue to print, the problem may be with the printer. Turn off the printer and contact your dealer.
Page 70: Memory Problems
The printer may not print correctly or an under run error may occur. The under run error is displayed in the alert window in the EPSON Status Monitor 3. For information on installing more memory, see “Memory Module” on page 2-7.
Page 71: Problems Using Epson Status Monitor 3
Unit” on page 4-10. Problems Using EPSON Status Monitor 3 The Status Alert Window in the EPSON Status Monitor 3 shows the various troubles and the methods to solve them. To solve your particular problem open the EPSON Status Monitor 3, find the trouble and solve the problem.
Page 72 The status information does not match the real status of the printer EPSON Status Monitor 3 monitors the printer at regular intervals. You may need to wait until EPSON Status Monitor 3 monitors the printer again, and automatically changes the status. Windows shared printers cannot be monitored Monitoring of shared printers is set internally by EPSON Status Monitor 3.
Page 73 Disconnect the USB cable from the printer, then reconnect it and reinstall the printer driver. Cannot print from Windows The driver’s printer port may be incorrect. To check the setting of the printer port, select properties in the file menu of the printer dialog box in the program group.
Page 74 Although connected to the USB hub, the printer does not operate correctly The printer may not be connected to the first level USB hub. There are five levels of USB connectors, make sure that your printer is connected to the first level.
Page 75 Cleaning the printer case ......5-11 Transporting the Printer ........5-12...
Page 76: Replacing Consumable Products
Follow these steps to replace the developer cartridge. 1. Make sure the printer is turned off. 2. Open the printer cover by pressing the latch on the left side of the printer and lifting the cover up all the way.
Page 77 Caution: You must completely open the printer cover when replacing the developer cartridge; otherwise, you may damage the printer. 3. Hold the cartridge by the handle and pull it straight up and out of the printer. Warning: Do not touch the fuser, which is marked CAUTION Hot Surface Avoid Contact.
Page 78 5. Remove the new developer cartridge from its bag. While holding the cartridge horizontally, gently shake it a few times from side to side and then from front to back to distribute the toner evenly. 6. Remove the protective tape seal from the cover of the developer cartridge.
Page 79 Never touch the developing roller under the flap. Otherwise, the print quality may be impaired. 7. Hold the cartridge by its handle and lower it into the printer, making sure that the pins on each side of the cartridge fit into the grooves inside the printer.
Page 80: Replacing The Photoconductor Unit
5-9. Replacing the photoconductor unit 1. Make sure the printer is turned off. 2. Open the printer cover by pressing the latch on the left side of the printer and lifting the cover up all the way. Maintenance and Transportation...
Page 81 You must completely open the printer cover to replace the photoconductor unit; otherwise, you may damage the printer. 3. Remove the developer cartridge. 4. Slide the photoconductor unit gently out of the printer as shown below. Warning: Do not touch the fuser, which is marked CAUTION Hot Surface Avoid Contact.
Page 82 Never touch the photoconductor unit’s light-sensitive drum; otherwise, print quality may be impaired. 6. Insert the pins on each side of the new photoconductor unit into the grooves inside the printer. Slide the unit gently into the opening until it locks into place. Maintenance and Transportation...
Page 83: Cleaning The Printer
10. Click OK to reset the Photoconductor level counter. Cleaning the Printer The printer needs only minimal cleaning. If you notice a decline in print quality, clean the inside of the printer as described in this section. You should also clean the paper cassette and the printer cover every few months.
Page 84: Removing Spilled Toner
Removing spilled toner If toner spills inside the printer, do not use the printer until you remove all the spilled toner. If only a small amount of toner is present, carefully wipe out the inside of the printer with a clean, dry, lint-free cloth.
Page 85: Cleaning The Printer Case
Cleaning the printer case If the printer’s outer case is dirty or dusty, turn off the printer and clean it with a clean, dry, lint-free cloth, dampened with a mild detergent.
Page 86: Transporting The Printer
Transporting the Printer If you need to transport your printer, carefully repack it using the original box and packing materials as follows: 1. Turn off the printer. 2. Lift off the paper-tray cover. Remove all paper from the paper-tray. 3. Grasp the base part of the paper-tray with both hands, press inward on the edges, and pull it out of the printer.
Page 87: Technical Specifications
Printer ........
Page 88: Paper
Note: Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot guarantee the quality of paper. Always test samples of paper stock before purchasing large quantities or printing large jobs.
Page 89 Envelopes: Monarch (3 7/8 7 1/2 in.) Commercial 10 (4 1/8 9 1/2 in.) DL (110 mm C5 (162 mm C6 (114 mm International B5 (176 mm Caution: Only load paper sizes that are listed above. Printable area: The area on a page contained within a 4 mm minimum margin on all sides 220 mm) 229 mm)
Page 90: Printer
Printer General Printing method: Resolution: Printing speed: First print: Warm-up time: Paper feed: Paper feed alignment: Center alignment for all sizes Input paper supply (75g/m² paper): Paper output: Paper output capacity (75g/m² paper): RAM: Technical Specifications Laser beam scanning and dry...
Page 91: Environmental
Power consumption * in Standby mode * No option installed Note: Check the label on the back of the printer for its specified voltage. Operation: 10 to 35 °C (50 to 95 °F) Storage: 0 to 35 °C (32 to 95 °F)
Page 92: Interface
Interface Parallel interface The parallel (IEEE 1284-B compliant) interface connector pin assignments are shown in the table below. Note Windows 98/95 and NT 4.0 support the parallel interface. Pin No. Direction IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT Technical Specifications IEEE 1284-B connector Compatibility Nibble...
Page 93 Nibble mode: Always high ECP mode: Used to transfer data and addresses from the host to the printer with handshaking via PeriphAck (Busy) DATA1 to DATA8 (bidirectional, but may always be an input if ECP or EPP mode is not supported)
Page 94 Reverse idle phase: When switched from low to high, generates an interrupt that notifies the host that there is data available. ECP mode: Used to transfer data from the printer to the host with handshaking via HostAck (nAutoFd) Busy/PtrBusy/PeriphClk...
Page 95 PError/AckDataReq/nAckReverse Compatibility mode: High signal indicates that a feed jam occurred in the paper supply section, or that there is no paper in the paper-tray or cassette. Negotiation phase: High signal indicates whether or not IEEE 1284 is supported or not. Afterwards, this signal conforms with nDataAvail (nFault).
Page 96 Reverse data transfer phase: In nibble mode, setting this signal low indicates to the printer that the host is ready to receive data. When this signal is subsequently set high, it indicates that the host received the data. Reverse idle phase: This signal is set high in response to a PtrClk (nAck) low pulse in order to return to the reverse data phase.
Page 97 HostBusy is low in order to request 1284 mode. Reverse data transfer phase: This signal is set high to indicate that the bus direction is from the printer to the host. This signal is set low to terminate 1284 mode, setting the bus direction from the host to the printer.
Page 98: Using The Ecp Mode
3. Right-click the System icon, and click Open in the menu that appears. 4. Select the Device Manager tab. 5. Select the ECP Printer Port under Ports [COM & LPT], then click the Properties button. 6. Select the Resources tab.
Page 99: Usb Interface
For Windows 98 1. Click the Start button, point to Settings, and then click Printers. 2. Right-click the EPSON EPL-5700L/EPL-5700i icon, and click Properties in the menu that appears. 3. Select the Details tab. 4. Click the arrow next to the Printer Port drop-down list. Then select a EPUSB1 port.
Page 100: Options And Consumables
Paper feed speed: Paper types: Power supply: Dimensions and weight: Height Width Depth Weight Face-up Tray (C81286 ) Dimensions (including printer) and weight: Height Width Depth Weight Paper output capacity: 20 sheets (75 g/m A-14 Technical Specifications A4 (Unit C81287 ) Letter (Unit C81288 ) ²...
Page 101: Developer Cartridge (S050010
Developer cartridge (S050010) Storage temperature: 0 to 35 °C (32 to 95 °F) Storage humidity: Shelf life: Life: Photoconductor unit (S051055) Storage temperature: 0 to 35 °C (32 to 95 °F) Storage humidity: Shelf life: Life: The number of pages you can print with a developer cartridge or a photoconductor unit varies depending on the type of printing.
Page 102 A-16 Technical Specifications...
Page 103: Contacting Customer Support
Appendix B Contacting Customer Support Where to Get Help ........B-2 For United Kingdom and the Republic of Ireland Users .
Page 104: Where To Get Help
For United Kingdom and the Republic of Ireland Users If you purchased your product in the UK or the Republic of Ireland, EPSON (UK) LTD provides a range of customer services and technical support. Support Via the World Wide Web...
Page 105 For a full list of EPSON Customer and Warranty Support services: http://www.epson.co.uk/support/ Support Via Telephone Our Customer and Warranty Support teams can be contacted by calling 0870 163 7766 in the UK or 0044 0870 163 7766 from the Republic of Ireland.
Page 106: For Australian Users
Where to purchase genuine EPSON consumables, accessories, and options For Australian Users EPSON Australia wishes to provide you with a high level of Customer Service. As well as this Reference Guide, we provide the following sources for obtaining information: EPSON FAXBACK EPSON FAXBACK will fax you the latest specifications and pricing for most EPSON products offered in Australia.
Page 107 EPSON Helpdesk EPSON Helpdesk is provided as a final backup to make sure our clients have access to advice. Operators on the Helpdesk can aid you in diagnosing hardware and software problems. They can also advise you on the latest EPSON products and where the nearest dealer or service agent is located.
Page 108: For Singapore Users
To obtain technical support as well as other after-sales services, users are welcome to contact EPSON Hong Kong Limited. Internet home page EPSON Hong Kong has established a local home page in both Chinese and English on the Internet to provide users with the following information:...
