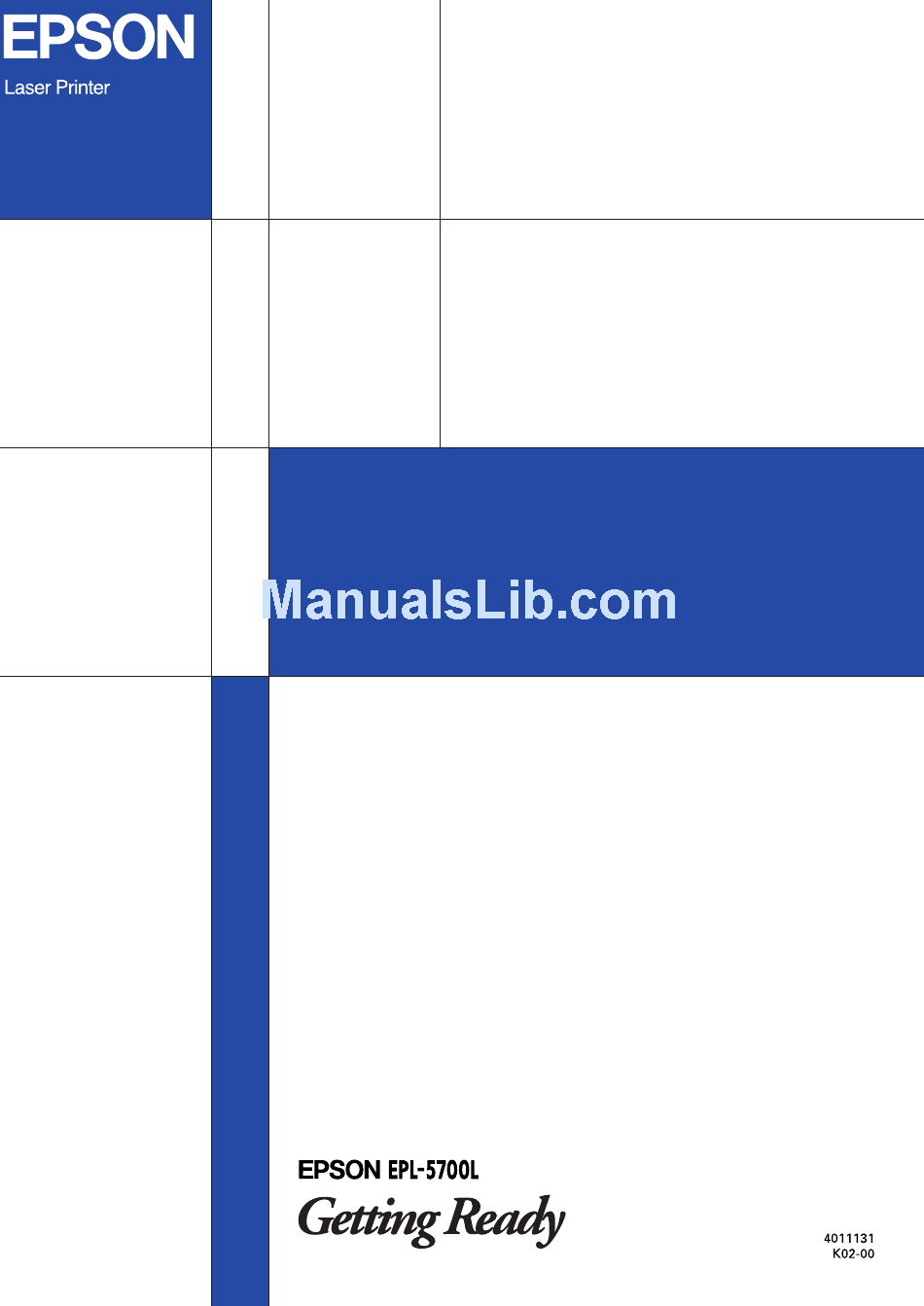

Epson epl-5700l: user guide
Hide thumbs Also See for EPL-5700L:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Reference Manual

Advertisement

Table of Contents
loading

Related Manuals for Epson EPL-5700L

Summary of Contents for Epson EPL-5700L

  • Page 2: Where To Find Information

    Where to Find Information Unpacking Guide Provides you with information and instructions on how to unpack the printer. Before using the printer, you need to remove all protective materials as described in the instructions contained in this guide. Getting Ready (this manual) Provides you with information on assembling the printer’s parts...

  • Page 4: Laser Printer

    Neither is any liability assumed for damages resulting from the use of the information contained herein. Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly...

  • Page 5: Declaration Of Conformity

    Model: Conforms to the following Directive(s) and Norm(s): Directive 89/336/EEC: Directive 73/23/EEC: October 1999 H. Horiuchi President of EPSON EUROPE B.V. SEIKO EPSON CORPORATION 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 Japan EPSON EUROPE B.V. Prof. J. H. Bavincklaan 5 1183...

  • Page 6: Table Of Contents

    Safety Instructions Laser Printer Precautions ....... . . 1 Important Safety Instructions ......4 Warnings, Cautions, and Notes.
  • Page 7 Testing the Printer ........

  • Page 8: Safety Instructions

    Warning: Be careful not to touch the fuser, which is marked CAUTION Hot Surface Avoid Contact. If the printer has been in use, the fuser can be very hot. Avoid touching the components inside the printer unless instructed to do so in this guide.
  • Page 9 Never force the printer’s components into place. Although the printer is designed to be sturdy, rough handling can damage When removing the developer cartridge, never touch the developing roller under the flap; otherwise, the print quality will decline. Do not turn the cartridge upside down or stand it on its sides.
  • Page 10 The green cylinder, visible through the openings in the unit, is a light-sensitive drum. If the photoconductor unit is out of the printer for a long period, covering it with an opaque cloth prevents extended exposure to light and possible damage.

  • Page 11: Important Safety Instructions

    Keep these slots and openings clear to allow proper ventilation. Avoid placing the printer on a bed, sofa or other soft surface, or in a small enclosed area, as this restricts proper ventilation. Connect your printer to the correct power supply. Your printer’s power requirements are indicated on a label...
  • Page 12 If you use an extension cord with the printer, make sure the total ampere rating of the devices plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet’s ampere rating.

  • Page 13: Warnings, Cautions, And Notes

    Warnings, Cautions, and Notes Warnings must be followed carefully to avoid bodily injury. Cautions must be observed to avoid damage to your equipment. Notes contain important information and useful tips on the operation of your printer. Safety Instructions...

  • Page 14: Finding A Place For The Printer

    If you install the optional 500-Sheet Lower Cassette Unit, you will need an additional 130 mm (5.1 inches) in height. If you install the optional Face-up Tray, you will need an additional 200 mm (7.9 inches) at the back of the printer. 100 mm 300 mm...
  • Page 15 Caution: Never place the printer on a stand that is narrower than the printer’s width as shown in the illustration below, as this may damage the printer. Avoid locations that are subject to direct sunlight, extreme temperatures, moisture, or dust.

  • Page 16: Installing The Options

    Installing 1. Make sure the printer and cassette are facing the same way. Lift the printer and align the pins on the cassette with the holes on the bottom of the printer. Then, lower the printer until it rests securely on the 500-Sheet Lower Cassette Unit.

  • Page 17: Face-Up Tray

    After installing the printer driver, you can confirm the 500-Sheet Lower Cassette Unit is installed correctly. Macintosh users can check the installation in the EPSON Status Monitor 3 and Windows users can check in the Printer Driver by selecting the Optional Settings tab.

  • Page 18: Installing

    Memory Module By installing a Single In-line Memory Module (SIMM), you can increase printer memory up to 13 MB (printer default 2 MB + optional 4, 8, 16 or 32 MB). You may want to add additional memory if you are having difficulty printing complex or graphics- intensive pages.

  • Page 19: Installing

    To avoid electrical shock, do not attempt to install a SIMM unless the printer is turned off. 1. Turn off the printer. 2. Open the printer cover by pressing the latch on the left side of the printer. 3. Remove the printer’s side cover by lifting the clip and sliding the side cover backward.
  • Page 20 4. Loosen the retaining screws securing the shield cover, and remove the shield cover. Caution: Before you install the module, be sure to discharge any static electricity by touching the printer’s shield cover. Otherwise, you may damage static-sensitive components. Installing the Options...
  • Page 21 5. Insert the SIMM module into the RAM slot at an angle, making sure the corner of the SIMM module with the cut-out corner is facing downward. Also confirm that the pin numbers, either 1 or 72, of the slot and the SIMM match. 6.
  • Page 22 7. Replace the shield cover and tighten its screws. Caution: When replacing the shield cover, be sure not to pinch wires inside the printer between the printer case and the shield cover. 8. Replace the printer’s side cover. 9. Gently close the printer cover.

  • Page 23: Removing

    If an incorrect amount of memory is shown on the status sheet, turn off the printer and review the steps above to make sure you correctly installed the SIMM. If the amount of memory is still incorrect, contact your dealer or a qualified service person for assistance.

  • Page 24: Connecting The Printer

    Connecting the Printer Loading Paper 1. Insert the paper tray under the slots at the front of the printer, as shown below, then push it all the way into the printer. 2. Fan a stack of paper (up to 150 sheets), then align the edges by tapping the stack on a flat surface.
  • Page 25 3. Place the cover on the paper tray, as shown below. 4. Pull up the extension output tray on the front of the printer. Note: Before printing make sure the Paper Size setting in your printer driver matches the paper you load.

  • Page 26: Attaching The Power Cord

    Attaching the Power Cord 1. Make sure the printer is turned off. It is off when the N side of the power switch on the left side of the printer is pushed in. 2. Insert the power cord into the back of the printer. Then plug the other end into a properly grounded electrical outlet.

  • Page 27: Connecting To The Computer

    Your printer comes with two standard interface connectors, parallel and USB. Parallel interface for PCs To connect the printer to your PC, you need a shielded, twisted- pair parallel cable. Note: Windows 98, 95 and Windows NT 4.0 support the parallel interface.

  • Page 28: Using A Usb Connection

    Using a USB connection To connect the printer to a USB port, you need a standard shielded USB cable. Follow these steps. Note: Only Macintosh and Windows 98 pre-installed PCs support the USB interface. 1. Make sure both the printer and computer are turned off.

  • Page 29: Installing The Printer Software

    The EPSON Status Monitor 3 utility allows you to view printer status information such as the amount of toner remaining and check for any printer errors. When the printer driver is installed, the EPSON Status Monitor 3 utility is also installed automatically. Note:...

  • Page 30: For Parallel Interfaces

    Follow these steps to install the printer driver for Windows 98/ 95 and Windows NT 4.0. 1. Make sure that the printer is off and Windows is running. 2. Insert the CD-ROM that comes with your printer into your CD-ROM drive (this is usually the D: drive).
  • Page 31 If this dialog box still does not appear, double-click the Setup.exe icon. You may need to use the arrows to scroll through the folder to find it. 4. In the dialog box that appears, select EPSON EPL-5700L Advanced and click OK. This automatically installs the printer driver.

  • Page 32: For Usb Interfaces (Windows 98 Pre-Installed Pcs Only)

    For USB interfaces (Windows 98 pre-installed PCs only) If you connected your printer using the USB interface, you need to install the EPSON USB device driver and the printer driver included in the printer software CD-ROM. Note: To connect your printer to the USB interface on your PC, you must purchase a USB cable.
  • Page 33 4. When the following dialog box appears, select Specify a location and type D:\Win98 in the text box (if your CD-ROM drive has a drive letter other than “D”, substitute the appropriate letter). Insert the printer software CD-ROM, then click Next. Clear any selected boxes.
  • Page 34 6. After the installation is completed, the following dialog box appears. Click Finish. 7. The printer software installation automatically starts and the following dialog box appears. Click Next. Installing the Printer Software Click here. Click here.
  • Page 35 8. When the dialog box below appears, click Next and follow the instructions on the screen. Click here. Note: If the EPSON Installation program appears, click Cancel. If the Wizard instructs you to restart, you must restart your computer. Installing the Printer Software...
  • Page 36 Use the following procedure to confirm that the USB driver was installed correctly. 1. Click the Start button, point to Settings and click on the Printers folder. Make sure the icon for the printer appears in the Printers folder. 2. Click the printer icon, and select Properties from the File menu.
  • Page 37 3. Click the Details tab and make sure EPUSBx: (EPL-5700L) is displayed in the Print to the following port list box. 4. If the correct port is not displayed, see “Troubleshooting” in the Reference Guide. Installing the Printer Software...

  • Page 38: For Macintosh Users

    Follow these steps to install your printer software. 1. Turn on your Macintosh and insert the software CD in the CD-ROM drive. 2. The EPSON printer software disk opens automatically. 3. If a single Installer icon appears, double-click the icon. Installing the Printer Software...
  • Page 39 The following dialog box appears. 4. To install all of the printer software included on your printer software CD-ROM, make sure the Install Location box displays the correct disk drive and click Install. 5. Click Continue. 6. When a message appears informing you that the installation is finished, click Restart to complete the installation and restart your computer.
  • Page 40 When background printing is on, you can use your Macintosh while it is preparing a document for printing. In order to use the EPSON Monitor 4 utility to manage print jobs, background printing must be turned on. 3. Close the Chooser.

  • Page 41: Making Basic Driver Settings

    4.0). 4. Click the Basic Settings tab. 5. Select the paper size you loaded in the printer from the Paper settings. If you don’t see your paper size on the list, use the arrow on the right to scroll through the list.

  • Page 42: Testing The Printer

    1. Make sure A4 size paper is loaded in the printer. 2. Turn on the printer as shown below. It is on when the “|” side of the power switch on the left side of the printer is pushed in.
  • Page 43 4. Click Start, and select Settings and Printers. 5. Right-click the icon of your printer, and click Properties. 6. Click the Optional Settings tab and select the Status Sheet button. The printer starts printing a status sheet.
  • Page 44 1. Choose Chooser from the Apple menu. Select your printer then click the Setup button, and the printer setup window will appear. Click your printer’s icon and then the port your printer is connected to. 2. Select the Status Sheet button. Then the Status Sheet window appears.

  • Page 45: Safety Information

    For United Kingdom users The EPL-5700L is a page printer which utilizes a semiconductor laser. There is no possibility of danger from the laser, provided that the printer is operated according to the instructions in the guides provided.

  • Page 46: Cdrh Regulations

    Use of controls, adjustments, or performance of procedures other than those specified in this guide may result in hazardous radiation exposure. Your printer is a Class 1 laser product as defined in IEC 825 specifications. The label shown below is attached in countries where required.

  • Page 47: Internal Laser Radiation

    For Denmark, Finland, Sweden, and Norway users An additional laser warning label is affixed to the inside of the printer, as shown below. Safety Information 0.73 mW at laser aperture of the...

  • Page 48: Ozone Safety

    The recommended exposure limit for ozone is 0.1 parts per million (ppm) expressed as an average time-weighted concentration over an eight (8) hour period. The EPL-5700L laser printer generates less than 0.01ppm for eight hours of continuous printing when considering a closed room of approximately 1000 cubic feet (8’...

  • Page 49: Energy Star Compliance

    For United Kingdom Users Use of options Epson (UK) Limited shall not be liable against any damages or problems arising from the use of any options or consumable products other than those designated as original EPSON products or EPSON approved products by Epson (UK) Limited.
  • Page 50 If you need to fit a plug: As the colours of the mains lead of this appliance may not match any coloured markings used to identify the terminals in a plug, please proceed as follows: The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or the Earth symbol ( G).
  • Page 51 Safety Information...

  • Page 52: Index

    Basic driver settings, 34 CDRH regulations, 39 Connecting the printer, 17 Connecting to the computer, 20 ENERGY STAR, 42 EPSON Status Monitor 3, 22 Face-up Tray, 10 Installing 500-Sheet Lower Cassette Unit, 9 EPSON Status Monitor 3, 22 Face-up Tray, 11...
