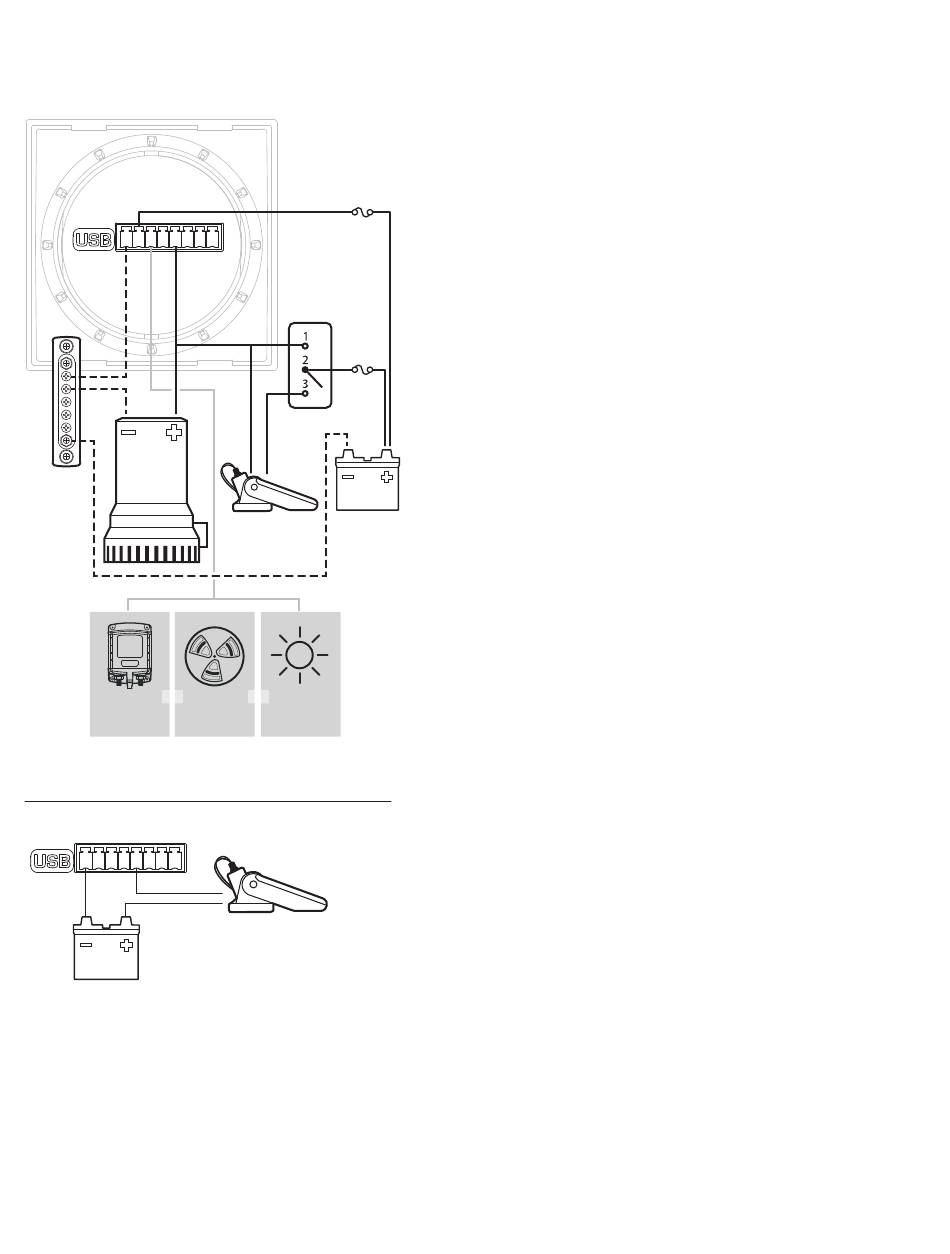

Detailed Wiring

1842 Bilge Pump Monitor

1 2 3 4 5 6 7 8

Busbar

Bilge Pump

Relay

Alarm (1070)

(7713 12V)

(7717 24V)

* Use bilge pump manufacturers recommended fuse.

Float Switch Connections

1 2 3 4 5 6 7 8

Battery

SPDT Switch

Battery

Float Switch

LED

(8033 Amber)

(8171 Red)

(8172 Green)
