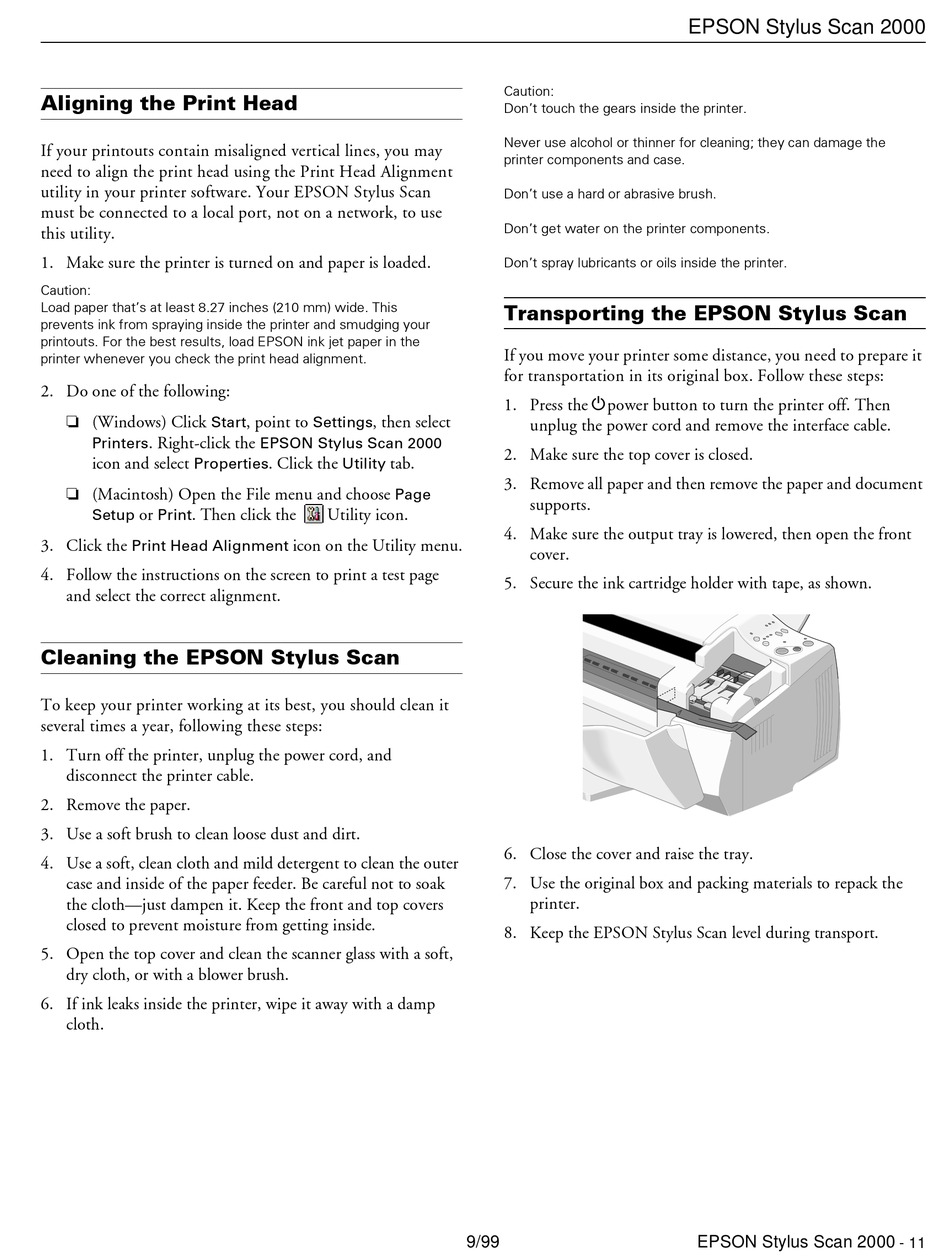

Aligning The Print Head; Transporting The Epson Stylus Scan; Cleaning The Epson Stylus Scan - Epson Stylus Scan 2000 Product Information Manual

Aligning the Print Head

If your printouts contain misaligned vertical lines, you may
need to align the print head using the Print Head Alignment
utility in your printer software. Your EPSON Stylus Scan
must be connected to a local port, not on a network, to use
this utility.
1. Make sure the printer is turned on and paper is loaded.
Caution:
Load paper that's at least 8.27 inches (210 mm) wide. This
prevents ink from spraying inside the printer and smudging your
printouts. For the best results, load EPSON ink jet paper in the
printer whenever you check the print head alignment.
2. Do one of the following:
(Windows) Click
Start
. Right-click the
Printers
icon and select
Properties
(Macintosh) Open the File menu and choose
or . Then click the
Setup Print
3. Click the
Print Head Alignment
4. Follow the instructions on the screen to print a test page
and select the correct alignment.

Cleaning the EPSON Stylus Scan

To keep your printer working at its best, you should clean it
several times a year, following these steps:
1. Turn off the printer, unplug the power cord, and
disconnect the printer cable.
2. Remove the paper.
3. Use a soft brush to clean loose dust and dirt.
4. Use a soft, clean cloth and mild detergent to clean the outer
case and inside of the paper feeder. Be careful not to soak
the cloth—just dampen it. Keep the front and top covers
closed to prevent moisture from getting inside.
5. Open the top cover and clean the scanner glass with a soft,
dry cloth, or with a blower brush.
6. If ink leaks inside the printer, wipe it away with a damp
cloth.
, point to , then select
Settings
EPSON Stylus Scan 2000
. Click the tab.
Utility
Page
Utility icon.
icon on the Utility menu.
Caution:
Don't touch the gears inside the printer.
Never use alcohol or thinner for cleaning; they can damage the
printer components and case.
Don't use a hard or abrasive brush.
Don't get water on the printer components.
Don't spray lubricants or oils inside the printer.

Transporting the EPSON Stylus Scan

If you move your printer some distance, you need to prepare it
for transportation in its original box. Follow these steps:
1. Press the Ppower button to turn the printer off. Then
unplug the power cord and remove the interface cable.
2. Make sure the top cover is closed.
3. Remove all paper and then remove the paper and document
supports.
4. Make sure the output tray is lowered, then open the front
cover.
5. Secure the ink cartridge holder with tape, as shown.
6. Close the cover and raise the tray.
7. Use the original box and packing materials to repack the
printer.
8. Keep the EPSON Stylus Scan level during transport.
9/99
EPSON Stylus Scan 2000
EPSON Stylus Scan 2000
- 11
