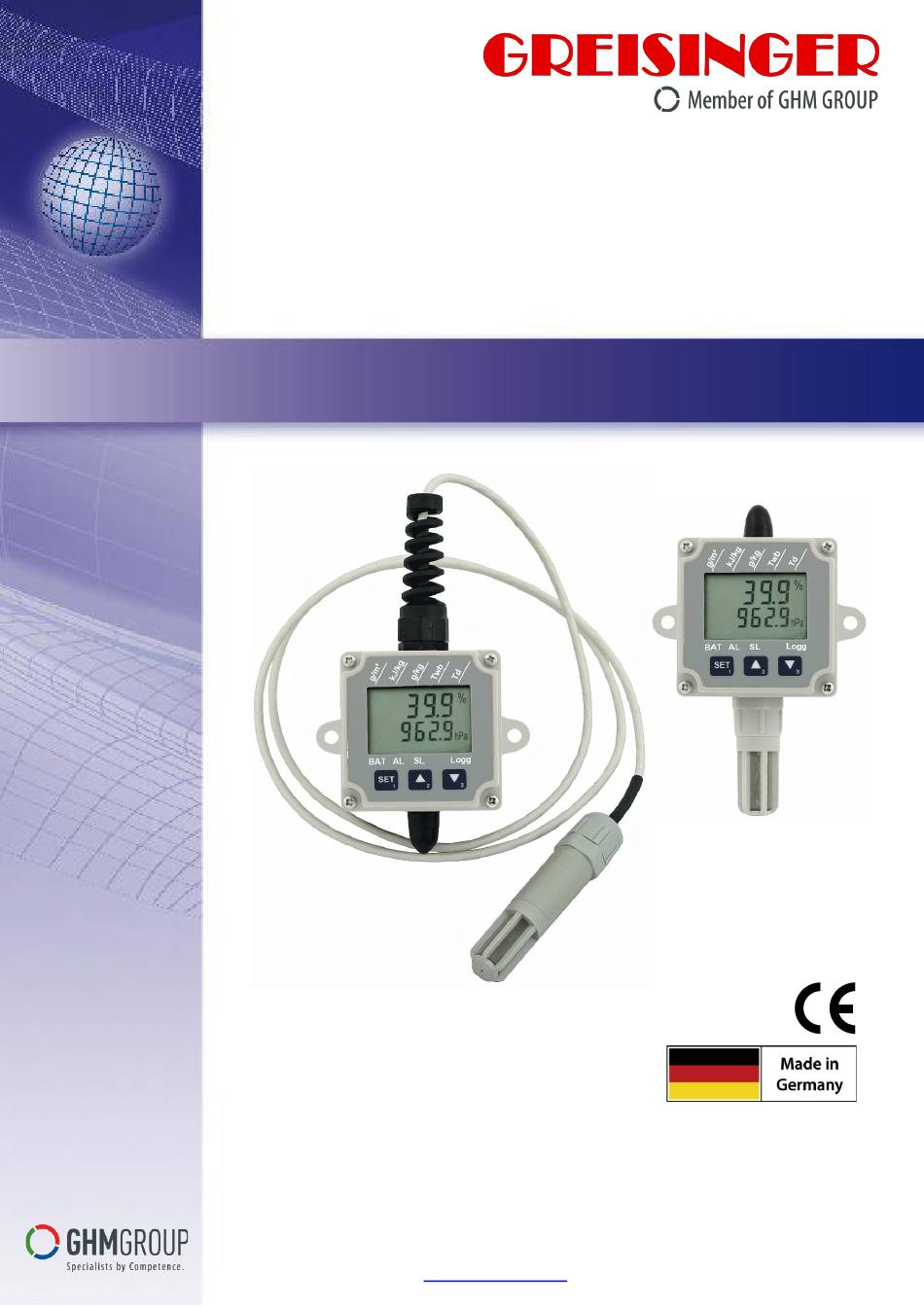

- Page 1 EB-Logg 80CL Operating Manual from from Version V2.7 EB-Logg 80CL-E WEEE-Reg.-Nr. DE 93889386 GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Tel.: +49 9402 9383-0 | info@greisinger.de | www.greisinger.de...
-
Page 2: Table Of Contents
Keep this document within easy reach near the device for consulting in case of doubt. © Copyright 2020 GHM Messtechnik GmbH / Standort Greisinger. All Rights Reserved. No part of this documentation may without previous written permission of the company GHM Messtechnik GmbH stored in some form, reproduced, pro- cessed, duplicated or spread become. -
Page 3: Safety
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 3 of 16 2. Safety 2.1 Intended Use The logger EB-Logg 80CL is designed for long term monitoring of climate data. Not only rela- tive humidity, temperature and air pressure can be displayed, but also wet-bulb temperature, dew-point temperature, enthalpy and the moisture content of the air. -
Page 4: Safety Guidelines
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 4 of 16 2.4 Safety guidelines This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaran- teed unless the standard safety measures and special safety advises given in this manual will be adhered to when using the device. -
Page 5: Product Description
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 5 of 16 3. Product description 3.1 Required accessory The logger is configurated, started and read-out via the EASYBus-interface. Therefore the following accessories are required: Level converter - RS232 <> EASYBus (i.e. EBW 1, EBW 64, EBW 240) - USB <>... -
Page 6: Display And Control Elements
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 6 of 16 4. Display and control elements 4.1 Display Main display Secondary display Arrows for unit display (for calculated variables) Display element for max / min Logg: indicates that logger is °C °C recording h P a BAT: signals weak battery... -
Page 7: Operation
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 7 of 16 5. Operation 5.1 Operating possibilities at the device - display selection Function Procedure Push button shortly The measuring channel is switched Switch display Note: The measuring channel is automatically switched every 4 sec. Push button shortly The max-values of the measuring channel are displayed for 4... -
Page 8: Operating Possibilities At The Device - Logger Operation
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 8 of 16 5.2 Operating possibilities at the device - logger operation Function Procedure Push button at the same time. The main display shows “CYCL”. The secondary display shows the currently adjusted cycle time [in sec.]. If the logger is currently not recording, the desired cycle time [4 sec to 5h (18000 sec)] can be adjusted via the buttons Display and adjust... -
Page 9: Operating Possibilities At The Device - Choose Number Of Easybus-Channels
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 9 of 16 5.3 Operating possibilities at the device - Choose number of EASYBus-Channels Function Procedure Push button at the same time. The main display shows „S ch“. The secondary display shows the number of channels, which are addressable via EASYBus. Adjust via button the desired number of chan- nels (1..4). -
Page 10: Operating Possibilities Via Software Gsoft 40K
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 10 of 16 5.4 Operating possibilities via software GSOFT 40K You can easily operate the logger via the software GSOFT 40K (> V7.14). This software provides a variety of functions to operate the logger. For example: •... -
Page 11: Operating Displays
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 11 of 16 7. Operating displays The logger provides two LCD-displays: 7 mm (main display) and 5.8 mm (secondary display). 7.1 Measured value display The LCD mainly displays the measured values: MEASURED VALUE DISPLAY Alternating display of the following measuring channels: a) main display: humidity [ % ]... -
Page 12: System Messages
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 12 of 16 7.3 System messages BATTERY • display of the BAT-arrow left hand down: The battery is almost spent and needs to be replaced. The data recording is still active. °C • permanent display The battery is spent and the recording has been automatically stopped (even if at EASYBus-operation). -
Page 13: Specifications
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 13 of 16 8. Specifications Measuring range: -25.0 … +60.0 °C Temperature 0.0 … 100.0 %RH Humidity (recommended range : 10 … 90 %RH) 300.0 … 1100.0 hPa (mbar) Air pressure Additional selectable var- iables -27.0 …... -
Page 14: Decommissioning, Reshipment And Disposal
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 14 of 16 Recording period depending on the chosen measuring cycle i. e. 521 days at 3 min measuring cycle 7.1 years at 15 min measuring cycle Alarm function alarm points selectable within the measuring range and alarm delay adjustable from 0 to 500 min Nominal temperature 25 °C... -
Page 15: Frequently Asked Questions [Faq]
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 15 of 16 10. Frequently asked questions [FAQ] Problem: The logger cannot be stopped via keys. “Logger stop via buttons disabled” has been activated at the configu- Possible reason: ration of the logger. Deactivate this function by means of GSOFT 40K (at tab „settings“). Remedy: Problem: The logger cannot be stopped both via keys and GSOFT 40K. -
Page 16: Device Options
E40.0.01.6C-08 Operating Manual EB-Logg 80CL page 16 of 16 11. Device options Additional information for options of the EB-Logg 80CL and EB-Logg 80CL-E. 11.1 ALARM With the option „ALARM“ the device has an additional switching output (NPN) for the alarm function of the device. Device connection: Alarm output EASYBus...
