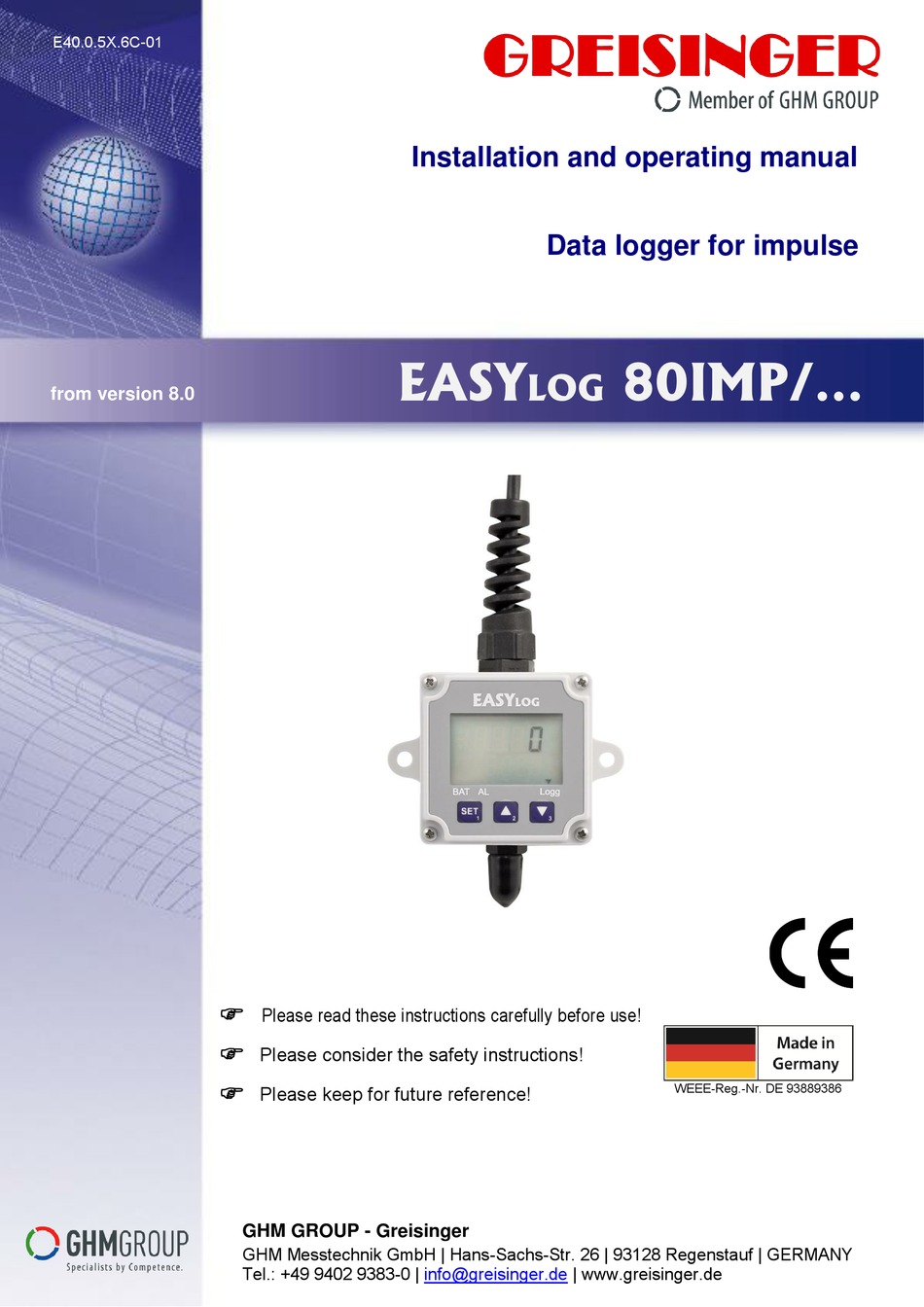

E40.0.5X.6C-01
from version 8.0
Installation and operating manual
EASY
Please read these instructions carefully before use!
Please consider the safety instructions!
Please keep for future reference!
GHM GROUP - Greisinger
GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY
Tel.: +49 9402 9383-0 |
Data logger for impulse
LOG
info@greisinger.de
| www.greisinger.de
80IMP/...
WEEE-Reg.-Nr. DE 93889386
Advertisement
Table of Contents
Related Manuals for GHM GREISINGER EASYLOG 80IMP Series
Summary of Contents for GHM GREISINGER EASYLOG 80IMP Series
- Page 1 Please read these instructions carefully before use! Please consider the safety instructions! WEEE-Reg.-Nr. DE 93889386 Please keep for future reference! GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Tel.: +49 9402 9383-0 | info@greisinger.de | www.greisinger.de...
-
Page 2: Table Of Contents
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 2 of 16 Content General note ......................2 Safety ......................... 3 2.1 Intended Use......................3 2.2 Safety signs and symbols ..................3 2.3 Skilled personnel ..................... 3 2.4 Safety guidelines ..................... 4 Product description ....................5 3.1 Required accessory .................... -
Page 3: Safety
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 3 of 16 2. Safety 2.1 Intended Use The logger EASYLOG 80IMP/… are especially designed for long-time monitoring of low fre- quencies. The combination of low power consumption with high battery capacity ensure a long record- ing time. -
Page 4: Safety Guidelines
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 4 of 16 2.4 Safety guidelines This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaran- teed unless the standard safety measures and special safety advises given in this manual will be adhered to when using the device. -
Page 5: Product Description
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 5 of 16 3. Product description 3.1 Required accessory The EASY 80IMP… is configurated, started and read-out via the EASYBus-interface. Therefore the following accessories are required: Level converter - RS232 <> EASYBus (i.e. EBW 1, EBW 64, EBW 240) - USB <>... -
Page 6: Display And Control Elements
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 6 of 16 4. Display and control elements 4.1 Display Main display Secondary display Display element for max / min Logg: indicates that logger is recording ... -
Page 7: Electric Connection
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 7 of 16 5. Electric connection For the types “active signal” mind the maximum input current rating of 2 mA under any circumstances ! 5.1 EASY 80IMP/… The connection of the logger occurs via 2-wire connection cable. connection wire colour EASY... -
Page 8: Operation
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 8 of 16 6. Operation 6.1 Operating possibilities at the device - min/max value memory Function Procedure Push button shortly The max-value is displayed for 4 seconds. Display max-value (The max-value display function is signalled by the display el- ement “MAX”). -
Page 9: Operating Possibilities At The Device - Logger Operation
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 9 of 16 6.3 Operating possibilities at the device - logger operation Function Procedure Push button at the same time. The main display shows “CYCL”. The secondary display shows the currently adjusted cycle time [in sec.]. If the logger is currently not recording, the desired cycle time [2 sec to 5h (18000 sec)] can be adjusted via the buttons Display and adjust... -
Page 10: Operating Possibilities Via Software Gsoft 40K
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 10 of 16 6.4 Operating possibilities via software GSOFT 40K You can easily operate the logger via the software GSOFT 40K (> V7.14). This software provides a variety of functions to operate the logger. For example: •... -
Page 11: Operating Displays
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 11 of 16 8. Operating displays The EASY provides two LCD-displays: 7 mm (main display) and 5.8 mm (secondary display). 8.1 Measured value display The LCD mainly displays the measured values: MEASURED VALUE DISPLAY a) main display: scaled display value sec. -
Page 12: System Messages
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 12 of 16 8.3 System messages BATTERY • display of the BAT-arrow left hand down: The EASY battery is almost spent and needs to be replaced. The data recording is still active. • permanent display The battery is spent and the recording has been automatically stopped (even if at EASYBus-operation). -
Page 13: Specifications
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 13 of 16 9. Specifications 0 … 60000 pulse / measuring cycle Measuring range Signal input Note: input is not isolated from EASYBus Electrically isolated switching contact EASYLog 80IMP/S contact closed (R < 50 Ohm) contact open (R >... -
Page 14: Decommissioning, Reshipment And Disposal
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 14 of 16 alarm points selectable within the display range and alarm Alarm function delay adjustable from 0 to 500 min 25 °C Nominal temperature -25.0 … +60.0 °C Operating temperature -30.0 … +70.0 °C Storage temperature ABS housing, transparent screen made of polyester Housing... -
Page 15: Frequently Asked Questions [Faq]
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 15 of 16 11. Frequently asked questions [FAQ] Problem: The logger cannot be stopped via keys. “Logger stop via buttons disabled” has been activated at the configu- Possible reason: ration of the logger. Deactivate this function by means of GSOFT 40K (at tab „settings“). Remedy: Problem: The logger cannot be stopped both via keys and GSOFT 40K. -
Page 16: Device Options
E40.0.5X.6C-01 Operating Manual EASY 80IMP… page 16 of 16 12. Device options Additional information’s for options of the EASY 80IMP/… 12.1 ALARM With the option „ALARM“ the device has an additional switching output (NPN) for the alarm function of the device. In result of the option there are following extensions: Device connection: Alarm output...
