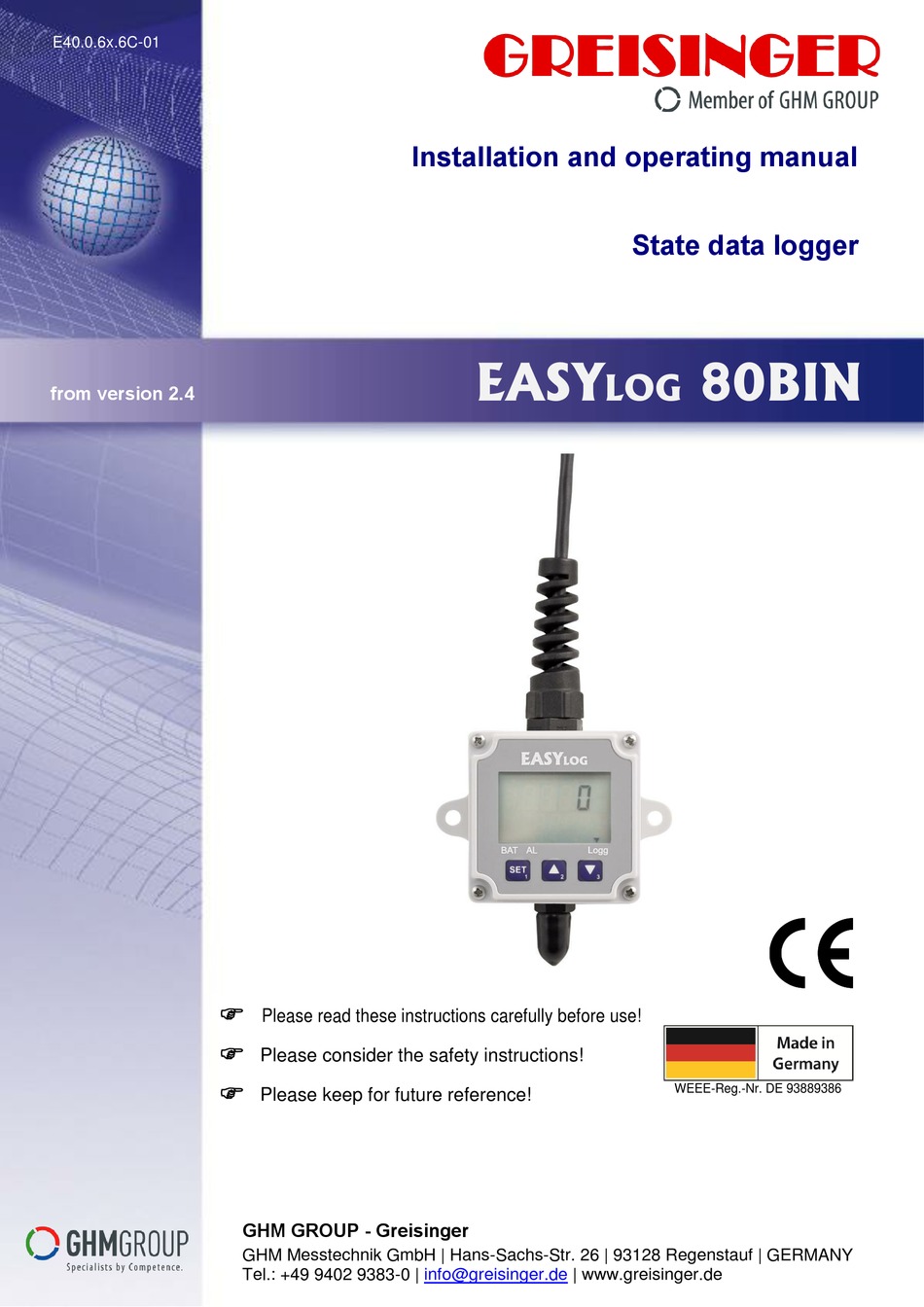

E40.0.6x.6C-01
from version 2.4
Installation and operating manual
Please read these instructions carefully before use!
Please consider the safety instructions!
Please keep for future reference!
GHM GROUP - Greisinger
GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY
Tel.: +49 9402 9383-0 |
EASY
info@greisinger.de
| www.greisinger.de
State data logger
80BIN
LOG
WEEE-Reg.-Nr. DE 93889386
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GHM Greisinger EASYLOG 80BIN
Summary of Contents for GHM Greisinger EASYLOG 80BIN
- Page 1 Please read these instructions carefully before use! Please consider the safety instructions! WEEE-Reg.-Nr. DE 93889386 Please keep for future reference! GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Tel.: +49 9402 9383-0 | info@greisinger.de | www.greisinger.de...
-
Page 2: Table Of Contents
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 2 of 14 Content General note ......................2 Safety ......................... 3 2.1 Intended Use......................3 2.2 Safety signs and symbols ..................3 2.3 Skilled personnel ..................... 3 2.4 Safety guidelines ..................... 4 Product description ....................5 3.1 Required accessory .................... -
Page 3: Safety
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 3 of 14 2. Safety 2.1 Intended Use The logger EASY 80BIN is designed for long term state monitoring. The combination of low power consumption with high battery capacity ensure a long record- ing time. The last 250.000 measuring values are stores in the memory. -
Page 4: Safety Guidelines
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 4 of 14 2.4 Safety guidelines This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaran- teed unless the standard safety measures and special safety advises given in this manual will be adhered to when using the device. -
Page 5: Product Description
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 5 of 14 3. Product description 3.1 Required accessory 80BIN is configurated, started and read-out via the EASYBus-interface. The EASY Therefore the following accessories are required: Level converter - RS232 <> EASYBus (i.e. EBW 1, EBW 64, EBW 240) - USB <>... -
Page 6: Display And Control Elements
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 6 of 14 4. Display and control elements 4.1 Display Main display Secondary display Display element for max / min Logg: indicates that logger is recording ... -
Page 7: Operating Possibilities At The Device - Logger Operation
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 7 of 14 Push button for about 5 seconds. Delete min-value “CLr” is displayed and the min-values of all measuring channels are deleted. 5.2 Operating possibilities at the device - logger operation Function Procedure Push button at the same time. -
Page 8: Operating Possibilities Via Software Gsoft 40K
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 8 of 14 5.3 Operating possibilities via software GSOFT 40K You can easily operate the logger via the software GSOFT 40K (> V7.14). This software provides a variety of functions to operate the logger. For example: •... -
Page 9: Operating Displays
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 9 of 14 7. Operating displays The EASY provides two LCD-displays: 7 mm (main display) and 5.8 mm (secondary display). 7.1 Measured value display The LCD mainly displays the measured values: MEASURED VALUE DISPLAY a) main display: measured value sec. -
Page 10: System Messages
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 10 of 14 7.3 System messages BATTERY • display of the BAT-arrow left hand down: The EASY battery is almost spent and needs to be replaced. The data recording is still active. • permanent display The battery is spent and the recording has been automatically stopped (even if at EASYBus-operation). -
Page 11: Specifications
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 11 of 14 8. Specifications Input Passive volt-free switching contact 1 = contact is closed (R < 50 Ohm) Measuring values 0 = contact is open (R > 20 kOhm) Electrical connection approx. 0.5 m cable, with open ends Display two 4½-digit LCD-displays (about 7 and 5.8 mm high) Interface... -
Page 12: Decommissioning, Reshipment And Disposal
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 12 of 14 Directives and standards The instruments confirm to following European directives: 2011/65/EU RoHS 2014/30/EU EMV directives Applied harmonized standards: EN 50581 : 2012 EN 61326-1:2013 emissions level: class B emi immunity according to table 1 additional error: <... -
Page 13: Frequently Asked Questions [Faq]
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 13 of 14 10. Frequently asked questions [FAQ] Problem: The logger cannot be stopped via keys. “Logger stop via buttons disabled” has been activated at the configu- Possible reason: ration of the logger. Deactivate this function by means of GSOFT 40K (at tab „settings“). Remedy: Problem: The logger cannot be stopped both via keys and GSOFT 40K. -
Page 14: Device Options
E40.0.6x.6C-01 Operating Manual EASY 80BIN page 14 of 14 11. Device options 80BIN Additional information’s for options of the EASY 11.1 ALARM With the option „ALARM“ the device has an additional switching output (NPN) for the alarm function of the device. In result of the option there are following extensions: Device connection: Alarm output...
