H3C S6800-2C Installation, Quick Start

H3C S6800-2C Switch Installation Quick Start-6W103
H3C S6800-2C交换机 快速安装指南-6W103

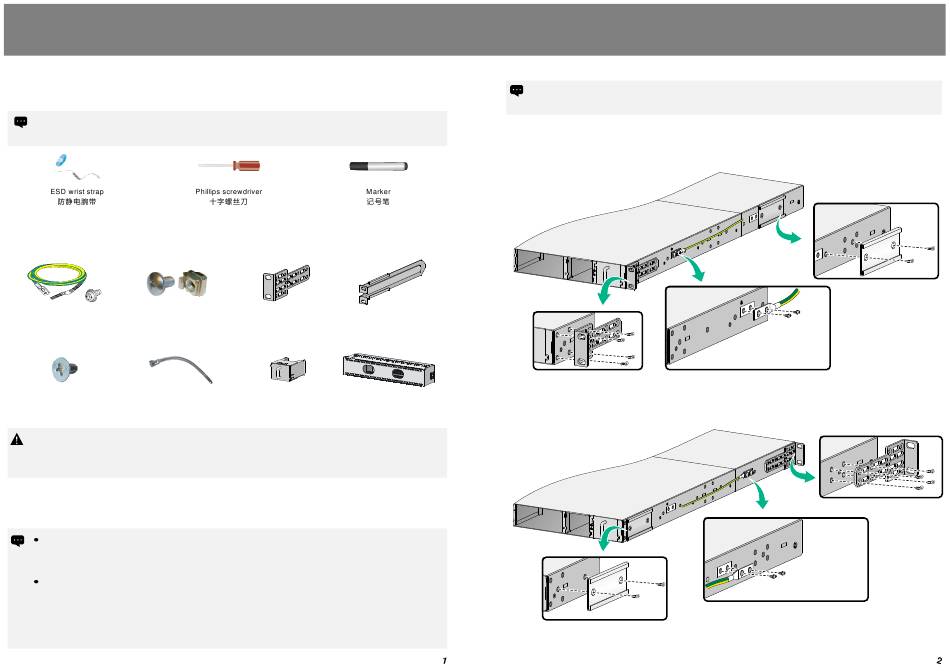

Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Installation accessories 安装附件介绍
Grounding cable and M6 screw and cage nut
grounding screw (user supplied)
接地线和接地螺钉 M6 螺钉和浮动螺母（请用户自备）
M4 screw Removable cable tie
可拆卸式扎带
M4螺钉
Before installation, wear an ESD wrist strap, and make sure the wrist strap makes good skin contact
!
and is reliably grounded.
在以下安装过程中，请您佩戴防静电腕带，并确保防静电腕带已经正确接地并与皮肤良好接触。
Mounting the switch in a rack 安装交换机到机柜
The installation positions of the accessories in the following figures are for illustration only. Select
installation positions for the accessories based on the installation requirements.
以下图中附件的安装位置仅供参考，请根据实际安装场景的需要选择合适的安装位置。
Multiple installation positions are available for the chassis rails on the chassis sides. You can
select an installation position for the chassis rails based on the chassis depth. To maintain switch
stability after installation, verify that the chassis rails reach out of the slide rails.
设备侧面板提供了多个滑道导轨安装位，用户可根据机柜的深度，调整滑道导轨的安装位置；为保
证设备安装后的稳定性，当滑道与滑道导轨安装完成后，请确保滑道的头部露出滑道导轨。
Mounting bracket Chassis rail and slide rail
挂耳 滑道和导轨
Power module filler panel Interface card filler panel
电源假面板 接口模块扩展卡假面板
Select a rack with a distance of 520 mm (20.47 in) to 769 mm (30.28 in) between the front and rear
rack posts.此安装方式适用于前后方孔条间距在520 mm～769 mm范围内的机柜。
Install the mounting brackets near the power module side 挂耳安装到靠近电源侧
Install the mounting brackets near the port side挂耳安装到靠近端口侧
