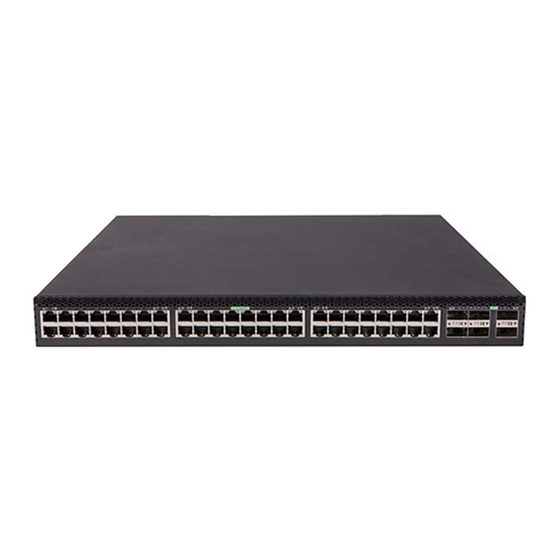

H3C S6800 & S6860 & S6861 Switches
PBB Configuration Examples
Copyright © 2019 New H3C Technologies Co., Ltd. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New
H3C Technologies Co., Ltd.
Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are
the property of their respective owners.
The information in this document is subject to change without notice.
Advertisement
Table of Contents
Related Manuals for H3C S6800
Summary of Contents for H3C S6800
- Page 1 No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd. Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this document are the property of their respective owners.
- Page 2 Contents Introduction ···································································································· 1 Prerequisites ·································································································· 1 Example: Configuring PBB ············································································ 1 Network configuration ········································································································································ 1 Analysis ······························································································································································ 1 Applicable hardware and software versions······································································································· 2 Restrictions and guidelines ································································································································ 2 Procedures ························································································································································· 2 Configuring BEB 1 ······································································································································ 2 Configuring BEB 2 ······································································································································ 3 Configuring BCB ········································································································································...
- Page 3 Introduction This document provides PBB configuration examples. Prerequisites The configuration examples in this document were created and verified in a lab environment, and all the devices were started with the factory default configuration. When you are working on a live network, make sure you understand the potential impact of every command on your network.
- Page 4 Applicable hardware and software versions The following matrix shows the hardware and software versions to which this configuration example is applicable: Hardware Software version S6800 switch series Release 2702 S6860 switch series S6861 switch series Not supported Restrictions and guidelines You need to configure PBB only on BEBs.
- Page 5 [BEB1-Ten-GigabitEthernet1/0/2] port link-type trunk [BEB1-Ten-GigabitEthernet1/0/2] port trunk permit vlan 1000 [BEB1-Ten-GigabitEthernet1/0/2] undo port trunk permit vlan 1 # Create service instance 1 on Ten-GigabitEthernet 1/0/2. [BEB1-Ten-GigabitEthernet1/0/2] service-instance 1 # Configure the service instance to match frames that have an outer VLAN ID of 1000. Associate the service instance with the PBB VSI, and set the access mode to Ethernet.
- Page 6 [DeviceA-Ten-GigabitEthernet1/0/1] quit # Configure Ten-GigabitEthernet 1/0/2 as a trunk port, assign it to VLAN 1000, and remove it from VLAN 1. [DeviceA] interface ten-gigabitethernet 1/0/2 [DeviceA-Ten-GigabitEthernet1/0/2] port link-type trunk [DeviceA-Ten-GigabitEthernet1/0/2] port trunk permit vlan 1000 [DeviceA-Ten-GigabitEthernet1/0/2] undo port trunk permit vlan 1 [DeviceA-Ten-GigabitEthernet1/0/2] quit Configuring Device B # Configure Device B in the same way Device A is configured.
- Page 7 1000 qinq enable interface Ten-GigabitEthernet1/0/2 port link-mode bridge port link-type trunk undo port trunk permit vlan 1 port trunk permit vlan 1000 Related documentation • H3C S6800[S6860][S6861] (R27xx) & S6820 (R630x) Switch Series Layer 2—LAN Switching Command Reference...
- Page 8 • H3C S6800[S6860][S6861] (R27xx) & S6820 (R630x) Switch Series Layer 2—LAN Switching Configuration Guide...
