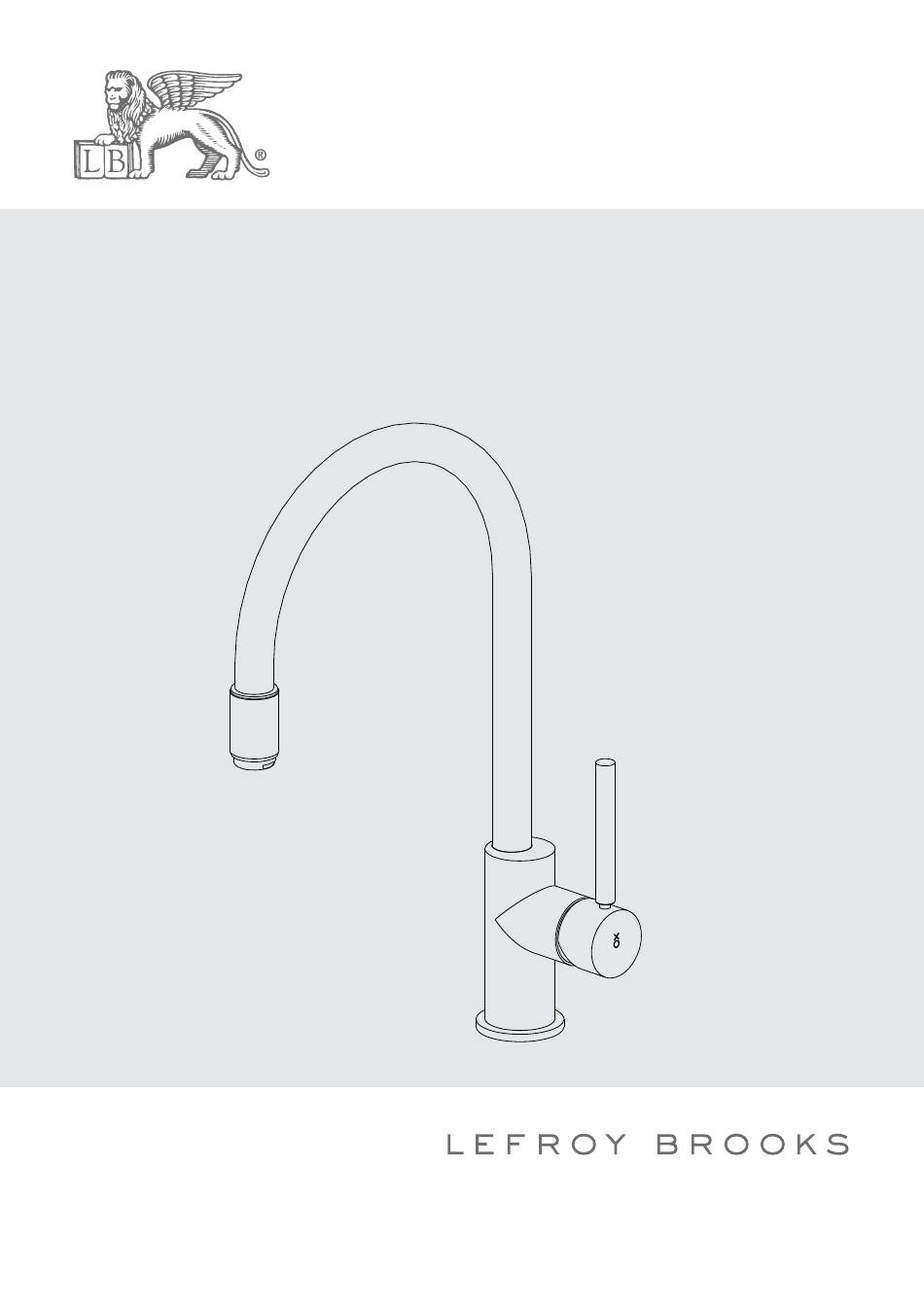

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS X1-2040 ZU SINGLE LEVER KITCHEN MIXER WITH PULL- OUT HOSE...
-
Page 2: Table Of Contents
Contents Dimensions Installation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 4" 9 7/8" (102mm) (251mm) 3 5/16" (83.5mm) Ø2" (Ø50mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Installation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Put base under the bottom of faucet. Install faucet through deck hole From underneath the sink, install washer, seal and tighten nut to fix the faucet. - Page 5 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Screw Oil-seal Adaptor Tighten screws to prevent loosing. Attach oil-seal to the brass pipe. Then tighten the adaptor to the brass pipe tightly to promise sealing.
- Page 6 Installation Procedure Steps 5-6 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Adaptor Oil-seal Attach oil-seal to the adaptor. Then connect hose to the adaptor tightly. Finish.
-
Page 7: Parts List
Parts List Exploded view Copper pipe assembly (064240W) Adaptor (067683W) Handle sleeve (038105) Brass pipe (074067) Oil-seal (010035N) Handle Stem (108926) Check valve (519204N) Plastic adaptor (200196) Handle base (215494) Washer (013005) O-ring (063012) Screw (292505) Clip (012280) Spray housing (033721) Plug (028079) Body (076699W) Washer (013387) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Leaks around handle. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replacement the cartridge if it is damaged. Leaks around the base of spout. Gasket is misfitted or damaged. Check for gasket placement. Aerator leaks or has an inconsistent Aerator is dirty or misfitted. -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
