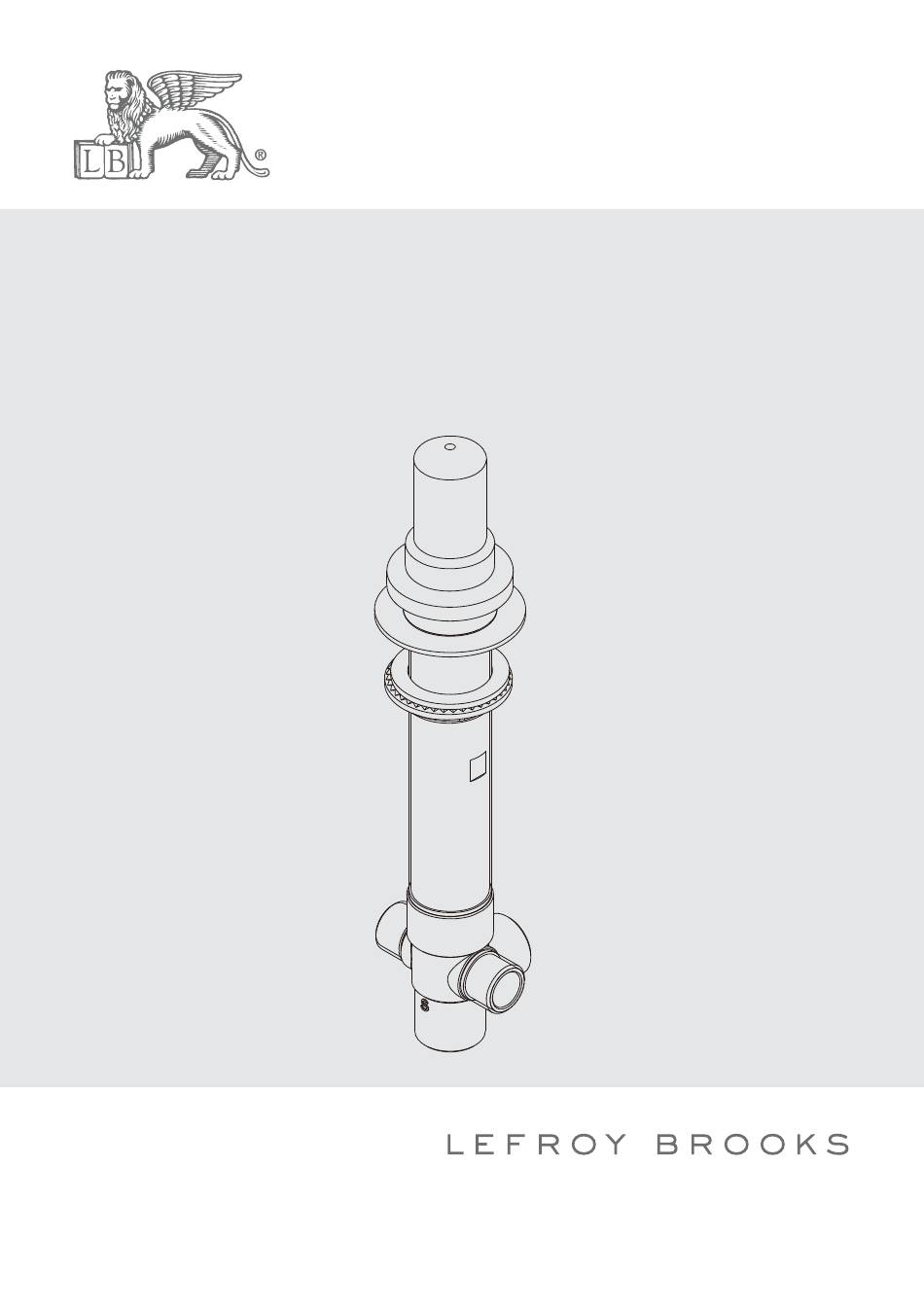

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS R1-4003 TWO-WAY DECK DIVERTER ROUGH ONLY, TO SUIT K1-1016, K1-1017, M1-1016, M1-1017, X1-1001...
-
Page 2: Table Of Contents
Contents Dimensions Instal ation Procedure Parts List Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 1 13/16-20UN-2A 1 1/4-18UNEF-2A 1/2-14NPT Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instal Ation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Remove the protective bubble bag, cap, top mounting nut from body assembly. Install the body through mounting hole from below and attach top mounting nut from top. - Page 5 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Adjust position of the bodies relying on specific gauge (B, C) supplied as the figure indicated to make sure they can fit with the trim in various ranges.
- Page 6 Installation Procedure Step 5 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Replace the protective bubble bag and protective caps to prevent dirt ingress or water leakage during construction.
-
Page 7: Parts List
Parts List Exploded view Protective cap (038103) Nut (054026) Shell (033764) O-ring (048099R) O-ring (072007N) O-ring (004074N) Shell (033095) Diverter valve (208141) Body (076171) Nut (009331) O-ring (063026N) Gauge B (027104) Washer (060255) Spring (005000) Gauge C (027107) Sleeve (041837) Washer (060067) Adaptor (077034) Shank (014546) -
Page 8: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 9: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
