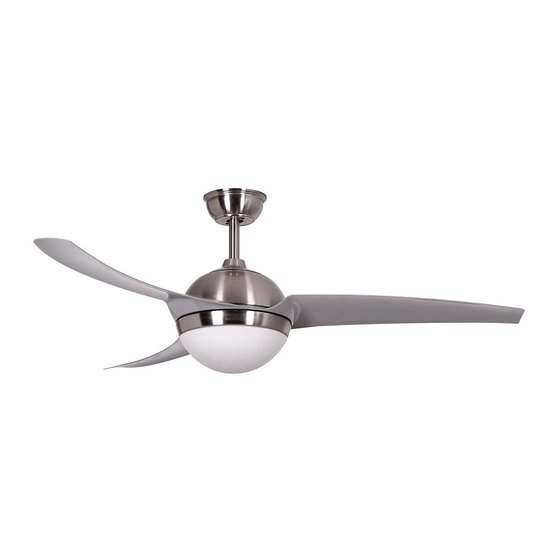

Model: AC-238
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-238 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Acorn AC-238

  • Page 1 Optional Lightkits Available Model: AC-238 Instruction Manual Attention: This appliance is not intended for use by persons (including Children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 2: Table Of Contents

    CONTENTS: 1. Safety Precaution ........... Page 2 2. Fan Structure Drawing ........... Page 3 3. Installation of Hanger Bracket ....... Page 4 4. Installation of Downrod / Hanger Ball ....Page 4 5. Hanging of Ceiling Fan .……………………………………... Page 5 6.
  • Page 3: Safety Precaution

    SAFETY PRECAUTION: IMPORTANT: PLEASE READ BEFORE INSTALLATION The installation work must be carried out by a qualified wiring installer. Turn off the Electrical Main Switch at the circuit breaker fuse box. Using power supply 220 – 240V/50HZ. When mounting the fan, to ensure the safety cable is loop across the ceiling mounting ‘J’...
  • Page 4: Fan Structure Drawing

    FAN STRUCTURE DRAWING:...
  • Page 5: Installation Of Hanger Bracket

    INSTALLATION OF HANGER BRACKET: 1) To use Four Expansion Setscrew to install the hanger bracket firmly. (fig 1) fig 1 Concrete Ceiling 2) Install the ‘J’ hook onto the concrete ceiling and fasten firmly. Note the place of ‘J’ hook as (fig 2) fig 2 INSTALLATION OF DOWNROD / HANGER BALL:...
  • Page 6: Hanging Of Ceiling Fan

    HANGING OF CEILING FAN: 1) Carefully lift assembly into hanger bracket which is attached to the outlet box. 2) Ensure the rod ball’s groove is lined up with tab on the hanger fig 5 bracket. (fig 5) 3) Attach the safety wire (cord) to the expansion ‘J’...
  • Page 7: Wiring Of Ceiling Fan

    WIRING OF CEILING FAN: 1) Total four colors of wires connected from the top of the motor: * White – neutral wire * Blue – live wire for lightkits * Green – Ground wire fig 9 * Black – live wire for fan 2.
  • Page 8: Installation Of Lightkits

    INSTALLATION OF LIGHTKITS: 1) Remove one screw from the switch box, unscrew the other three screws out 3- 4mm. 2) Install E27 lighkit: Attach lightkit to the switch box. fig 11 Total two wires from the switch box. 3) Connect the lightkit wires to switch wires: White to White, Blue to...
  • Page 9: Installation Of Fan Cover (Without Lightkits)

    INSTALLATION OF FAN COVER (WITHOUT LIGHTKITS): 1) Remove all three screws from the cover. (fig 15) 2) Match and pushing up the three notches from the cover to the three bumps on the light fixture (without fig 15 light socket). (fig 16) 3) Ensure the cover holes are pointing to the light fixture holes.
  • Page 10: Maintenance Tips

    MAINTENANCE TIPS: 1. Because of the fan’s natural movement, some connections may be loose. To check the support connections, brackets and blades attachments 2 times a year. Make sure they are all secured (It is not necessary to dismantle the entire fan from ceiling). 2.
  • Page 11: Troubleshooting

    TROUBLESHOOTING: PLEASE CHECK THE FOLLOWING BEFORE LODGING A SERVICE REPORT PROBLEM REASON SOLUTION Fan not 1) Main cables not 1) Check mains & sub circuit moving connected. breakers or fuse. 2) Check the line wires. 2) Check the line wires connections to the fan &...
  • Page 12: Notes

    NOTES: DRAWING SHOWING THE ASSEMBLY OF WIRES THROUGH FAN MOTOR SHAFT FOR DECORATIVE CEILING FAN...
