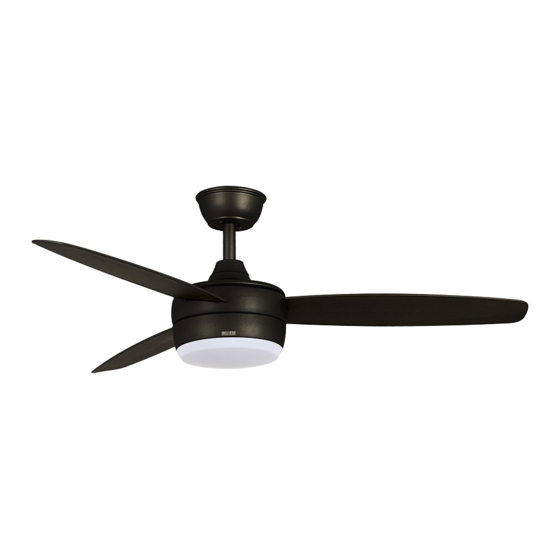

Model: AC-108
Instruction Manual
Attention:
This appliance is not intended for use by persons (including Children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acorn AC-108
Summary of Contents for Acorn AC-108
- Page 1 Model: AC-108 Instruction Manual Attention: This appliance is not intended for use by persons (including Children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 2: Table Of Contents
CONTENTS: 1. Safety Precaution ........... Page 2 2. Fan Structure Drawing ........... Page 3 3. Installation of Hanger Hook ........Page 4 4. Installation of Downrod / Hanger Ball ....Page 4 5. Installation of Fan Blades ..………………………………... Page 5 6. -
Page 3: Safety Precaution
SAFETY PRECAUTION: IMPORTANT: PLEASE READ BEFORE INSTALLATION The installation work must be carried out by a qualified wiring installer. Turn off the Electrical Main Switch at the circuit breaker fuse box. Using power supply 220 – 240V / 50Hz. When mounting the fan, to ensure the safety cable is loop across the ceiling mounting ‘J’... -
Page 4: Fan Structure Drawing
FAN STRUCTURE DRAWING:... -
Page 5: Installation Of Hanger Hook
INSTALLATION OF HANGER HOOK: 1) For Wood Ceiling: Install the hanger hook firmly onto the wood ceiling with two screws (fig 1). fig 1 2) For Concrete Ceiling: To use two expansion setscrew to install the hanger hook onto the concrete ceiling and fasten firmly (fig 2). -
Page 6: Installation Of Fan Blades
INSTALLATION OF FAN BLADES: 1) Remove the screws from the blade bracket. 2) Insert the blades into the motor housing, fasten onto the blade bracket with screws. (fig 5) 3) Ensure all blades are tighten fig 5 firmly. HANGING OF CEILING FAN: 1) Carefully lift assembly into hanger hook which... -
Page 7: Wiring Of Ceiling Fan
WIRING OF CEILING FAN: 1) Total four colors of wires connected from the top of the motor: * White – neutral wire * Blue – live wire for lightkits * Green – ground wire * Red – live wire for fan fig 7 2. -
Page 8: Installation Of Lightkits
INSTALLATION OF LIGHTKITS: 1) Remove the screws from the switch box. 2) Connect the lightkit wires to the switchbox (fig 9) * Blue to Blue * White to White 3) Pointing the lightkit to the screw holes on the switch box and tighten with screws firmly. -
Page 9: Maintenance Tips
MAINTENANCE TIPS: 1. Because of the fan’s natural movement, some connections may be loose. To check the support connections, brackets and blades attachments 2 times a year. Make sure they are all secured (It is not necessary to dismantle the entire fan from ceiling). 2. - Page 10 MAINTENANCE TIPS: PLEASE CHECK THE FOLLOWING BEFORE LODGING A SERVICE REPORT PROBLEM REASON SOLUTION Fan not 1) Main cables not 1) Check mains & sub circuit moving connected. breakers or fuse. 2) Check the line wires. 2) Check the line wires connections to the fan &...
-
Page 11: Notes
NOTES: DRAWING SHOWING THE ASSEMBLY OF WIRES THROUGH FAN MOTOR SHAFT FOR DECORATIVE CEILING FAN...
