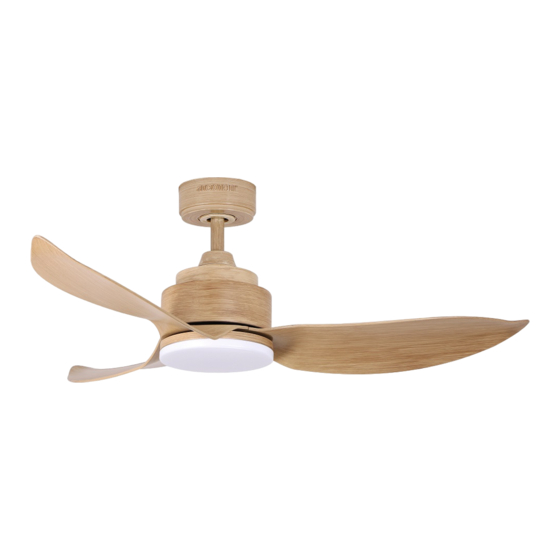

Model: DC-356
Instruction Manual
Attention:
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
Advertisement
Table of Contents
Related Manuals for Acorn DC-356
Summary of Contents for Acorn DC-356
- Page 1 Model: DC-356 Instruction Manual Attention: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 2: Table Of Contents
CONTENTS: 1. Safety Precaution ........... Page 2 2. Fan Structure Drawing ………………….……....Page 3 3. Installation of Hanging Bracket ......Page 4 4. Installation of Downrod / Hanger Ball ....Page 5 5. Hanging of Ceiling Fan ........... Page 6 6. -
Page 3: Safety Precaution
SAFETY PRECAUTION: IMPORTANT: PLEASE READ BEFORE INSTALLATION The installation work must be carried out by a qualified wiring installer. Turn off the Electrical Main Switch at the circuit breaker fuse box. Using power supply 220 - 240V 50Hz. When mounting the fan, ensure the safety cable is loop across the ceiling mounting ‘J’... -
Page 4: Fan Structure Drawing
FAN STRUCTURE DRAWING: Expansion bolts and expansion bolts with hook... -
Page 5: Installation Of Hanging Bracket
INSTALLATION OF HANGER BRACKET: 1) To use Four Expansion Setscrew to install the hanger bracket firmly (fig 1). fig 1 2) Install the ‘J’ hook onto the concrete ceiling fasten firmly. Note the place of ‘J’ hook as (fig 2). fig 2... -
Page 6: Installation Of Downrod / Hanger Ball
INSTALLATION OF DOWN ROD / HANGER BALL: 1) Remove the ‘R’ pin and Cross pin from the down rod. 2) Install the canopy and housing cover through the down rod then thread the wires through the down rod, insert the down rod into the connector (fig 3). -
Page 7: Hanging Of Ceiling Fan
HANGING OF CEILING FAN: 1) Carefully lift assembly into hanger bracket which is attached to the outlet box. Ensure the rod ball’s groove is lined up with tab on the hanger bracket. (fig 5) fig 5 2) Attach the safety wire (cord) to the expansion ‘J’... -
Page 8: Wiring Of Ceiling Fan
WIRING OF CEILING FAN: REMOTE CONTROL RECEIVER fig 7 1) Total six colors of wires connected from the top of the motor: * White – neutral wire for lightkit * Blue – live wire for lightkit * Black/Red, Red/Brown, Brown/Yellow – live wire for fan * Green –... -
Page 9: Installation Of Canopy
INSTALLATION OF CANOPY: 1) After done up the wiring, attach the canopy to the hanger bracket by pushing up and twist to locate screws in the two key holes. 2) Tighten the two screws firmly. The two screws will be protruded with some allowance to receive fig 8 the canopy cover. -
Page 10: Installation Of Lightkit
INSTALLATION OF LIGHTKIT: 1) Remove one screw from the motor round piece, unscrew the other two screws out by 3-4mm. (fig 11) 2) Attach the lightkit to the fan, fix the first screw back to the hole and tighten all the three screws firmly. -
Page 11: Remote Control Manual (Wiring Diagram)
REMOTE CONTROL MANUAL (WIRING DIAGRAM) 1. This manual is to use for the controller of ceiling fan and lightkit. 2. Disconnect power supply before wiring. 3. Install the Receiver inside the canopy of ceiling fan to ensure proper protection. Receiver Adopt RF wireless digit emission technique, biunique controlled, coincident code rate is less than one millionth. -
Page 12: Remote Control Manual (Button Function)
2. Acorn Remote comes pre-paired from the factory. If your remote loses its pairing, you can re-pair by turn ‘ON’ the supply power and within 3 seconds press the Emitter button ‘Main ON/OFF ‘... -
Page 13: Maintenance Tips
MAINTENANCE TIPS: 1. Because of the fan’s natural movement, some connections may be loose. To check the support connections, brackets and blades attachments 2 times a year. Make sure they are all secured (It is not necessary to dismantle the entire fan from ceiling). 2. -
Page 14: Troubleshooting
TROUBLESHOOTING: PLEASE CHECK THE FOLLOWING BEFORE LODGING A SERVICE REPORT PROBLEM REASON SOLUTION Fan not 1) Main cables not 1) Check mains & sub circuit moving connected. breakers or fuse. 2) Check the line wires. 2) Check the line wires connections to the fan &... -
Page 15: Notes
NOTES: DRAWING SHOWING THE ASSEMBLY OF WIRES THROUGH FAN MOTOR SHAFT FOR DECORATIVE CEILING FAN...
