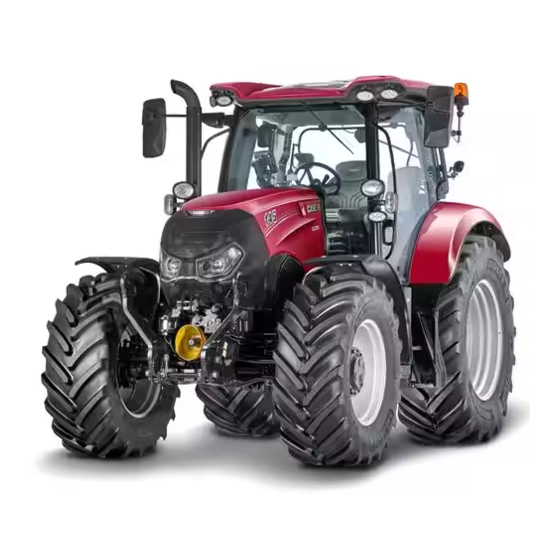

Case IH MAXXUM 115 Service Manual
  1. Manuals
  2. Brands
  3. Case IH Manuals
  4. Tractor
  5. MAXXUM 115
  6. Service manual

Case IH MAXXUM 115 Service Manual

Hide thumbs Also See for MAXXUM 115:

Advertisement

Table of Contents

MAXXUM
115 / MAXXUM
®
MAXXUM
125 / MAXXUM
®
MAXXUM
135 / MAXXUM
®
MAXXUM
145 / MAXXUM
®
115 Multicontroller / MAXXUM
®
125 Multicontroller / MAXXUM
®
135 Multicontroller / MAXXUM
®
145 Multicontroller / MAXXUM
®
MAXXUM
150 / MAXXUM
®
SERVICE MANUAL
CVT 115
®
CVT 125
®
CVT 135
®
CVT 145
®
150 Multicontroller
®
Tier 4B (final)
Tractor
Part number 47938724
1
edition English
st
October 2015

Advertisement

Table of Contents
loading

Related Manuals for Case IH MAXXUM 115

Summary of Contents for Case IH MAXXUM 115

  • Page 1 MAXXUM 115 / MAXXUM 115 Multicontroller / MAXXUM CVT 115 ® ® ® MAXXUM 125 / MAXXUM 125 Multicontroller / MAXXUM CVT 125 ® ® ® MAXXUM 135 / MAXXUM 135 Multicontroller / MAXXUM CVT 135 ® ® ® MAXXUM 145 / MAXXUM 145 Multicontroller / MAXXUM CVT 145...
  • Page 2 SERVICE MANUAL MAXXUM® 115 Multicontroller , MAXXUM® 115 , MAXXUM® 125 Multicontroller , MAXXUM® 125 , MAXXUM® 135 Multicontroller , MAXXUM® 135 , MAXXUM® 145 Multicontroller , MAXXUM® 145 , MAXXUM® 150 Multicontroller , MAXXUM® 150 , MAXXUM® CVT 115 , MAXXUM® CVT 125 , MAXXUM®...
  • Page 3 Link Product / Engine Product Market Product Engine MAXXUM® CVT 115 North America F4DFE4134*B005 MAXXUM® CVT 125 North America F4DFE4133*B007 MAXXUM® CVT 135 North America F4DFE4132*B005 MAXXUM® CVT 145 North America F4DFE4131*B007 MAXXUM® 115 North America F4DFE4134*B006 North America MAXXUM® 115 Multicontroller F4DFE4134*B006 MAXXUM®...
  • Page 4 Contents INTRODUCTION Engine..................10 [10.001] Engine and crankcase ............. 10.1 [10.216] Fuel tanks .
  • Page 5 [23.314] Drive shaft................23.2 Front axle system ...............
  • Page 6 [35.322] Regulated/Low pressure system ........... 35.6 [35.204] Remote control valves .
  • Page 7 [55.015] Engine control system............. . 55.3 [55.301] Alternator .
  • Page 8 INTRODUCTION 47938724 19/10/2015 Find manuals at https://best-manuals.com...

  • Page 9: Table Of Contents

    Contents INTRODUCTION Foreword - Important notice regarding equipment servicing ........3 Foreword - How to use and navigate through this manual .

  • Page 10: Foreword - Important Notice Regarding Equipment Servicing

    Specifications, descriptions, and illustrative material herein are as accurate as known at time of publication but are subject to change without notice. In case of questions, refer to your CASE IH Sales and Service Networks. 47938724 19/10/2015...

  • Page 11: Foreword - How To Use And Navigate Through This Manual

    INTRODUCTION Foreword - How to use and navigate through this manual This manual has been produced by a new technical information system. This new system is designed to deliver technical information electronically through web delivery (eTIM), DVD, and paper manuals. A coding system called SAP has been developed to link the technical information to other Product Support functions, e.g., Warranty.
  • Page 12 INTRODUCTION Manual content This manual is divided into Sections. Each Section is then divided into Chapters. Contents pages are included at the beginning of the manual, then inside every Section and inside every Chapter. An alphabetical Index is included at the end of each Chapter.
  • Page 13 INTRODUCTION 61 - Metering system 62 - Pressing - Bale formation 63 - Chemical applicators 64 - Chopping 66 - Threshing 68 - Tying/Wrapping/Twisting 69 - Bale wagons 70 - Ejection 71 - Lubrication system X X X X X 72 - Separation 73 - Residue handling 74 - Cleaning...
  • Page 14 INTRODUCTION Chapters Each Chapter is identified by a number e.g. Engine - Engine and crankcase - 10.001. The first number is identical to the Section number i.e. Chapter 10.001 is inside Section 10, Engine. The second number is representative of the Chapter contained within the Section.
  • Page 15 INTRODUCTION Information units and information search Each chapter is composed of information units. Each information unit has the SAP code shown in parentheses. This indicates the function and type of information in that information unit. Each information unit has a page reference within that Chapter.

  • Page 16: Safety Rules

    INTRODUCTION Safety rules Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in- structions.

  • Page 17: Safety Rules - Ecology And The Environment

    CASE IH strongly recommends that you return all used batteries to a CASE IH dealer, who will dispose of the used batteries or recycle the used batteries properly. In some countries, this is a legal requirement.

  • Page 18: Basic Instructions - Shop And Assembly

    Only use CNH Original Parts or CASE IH Original Parts. Only genuine spare parts guarantee the same quality, duration, and safety as original parts, as they are the same parts that are assembled during standard production. Only CNH Original Parts or CASE IH Original Parts can offer this guarantee.
  • Page 19 The special tools that CASE IH suggests and illustrate in this manual have been specifically researched and designed for use with CASE IH machines. The special tools are essential for reliable repair operations. The special tools are accurately built and rigorously tested to offer efficient and long-lasting operation.

  • Page 20: Torque

    INTRODUCTION Torque Minimum hardware tightening torques (in N m or lb in /lb ft) for normal assembly applica- tions unless otherwise stated NOTICE: Shown below is the suggested initial torque tightening sequences for general applications, tighten in se- quence from item 1 through to the last item of the hardware. The minimum hardware tightening torque on drawings, in specifications etc.
  • Page 21 INTRODUCTION ZEIL06CS0136F0A ZEIL06CS0135F0A 47938724 19/10/2015...

  • Page 22: Conversion Factors

    INTRODUCTION Conversion factors Length 1 mm 0.0393 in 1 in 25.4 mm 1 km 0.621 miles 1 miles 1.609 km 3.281 ft 1 ft 0.3048 m Area 1 ha 2.471 ac 1 ac 0.404 US fl oz 1 m² 10.76 ft² 1 ft²...

  • Page 23: Consumables Lubrications And Coolants

    (axle and hubs) and front PTO gearbox oil ISO VG32/46 CASE IH AKCELA NEXPLORE™ FLUID NOTE: It is possible to mix CASE IH AKCELA HY-TRAN® ULTRACTION with the other CASE IH AKCELA NEX- PLORE™ FLUID products until their current supply is depleted and a total changeover to CASE IH AKCELA HY-TRAN®...

  • Page 24: Capacities

    INTRODUCTION Capacities MAXXUM® UNIT 4 cylinder 6 cylinder Fuel tank 197.5 L (52.2 US gal) Auxiliary fuel tank 24.5 L (6.5 US gal) 39.5 L (10.4 US gal) DEF/AdBlue® tank Cooling system 21.0 L (5.5 US gal) 15.0 L Engine (including filter) 10.0 L (2.6 US gal) (4.0 US gal) Transmission / Rear axle / Hydraulics...
  • Page 25 INTRODUCTION MAXXUM® CVT UNIT 4WD front hubs 3.6 L (0.95 US gal) (Class 4 axle – Less brakes) 4WD front hubs 4.0 L (1.06 US gal) (Class 4 axle – With brakes) Front Power Take-Off (PTO) 0.5 L (0.13 US gal) 47938724 19/10/2015...
  • Page 26 SERVICE MANUAL Engine MAXXUM® 115 Multicontroller , MAXXUM® 115 , MAXXUM® 125 Multicontroller , MAXXUM® 125 , MAXXUM® 135 Multicontroller , MAXXUM® 135 , MAXXUM® 145 Multicontroller , MAXXUM® 145 , MAXXUM® 150 Multicontroller , MAXXUM® 150 , MAXXUM® CVT 115 , MAXXUM® CVT 125 , MAXXUM®...
  • Page 27 Contents Engine - 10 [10.001] Engine and crankcase ............. . . 10.1 [10.216] Fuel tanks .
  • Page 28 Engine - 10 Engine and crankcase - 001 MAXXUM® 115 Multicontroller , MAXXUM® 115 , MAXXUM® 125 Multicontroller , MAXXUM® 125 , MAXXUM® 135 Multicontroller , MAXXUM® 135 , MAXXUM® 145 Multicontroller , MAXXUM® 145 , MAXXUM® 150 Multicontroller , MAXXUM® 150 , MAXXUM® CVT 115 , MAXXUM® CVT 125 , MAXXUM®...
  • Page 29 Contents Engine - 10 Engine and crankcase - 001 SERVICE Engine Disconnect ................3 MAXXUM®...
  • Page 30 Engine - Engine and crankcase Engine - Disconnect MAXXUM® 115 Multicontroller MAXXUM® 115 MAXXUM® 125 Multicontroller MAXXUM® 125 MAXXUM® 135 Multicontroller MAXXUM® 135 MAXXUM® 145 Multicontroller MAXXUM® 145 MAXXUM® 150 Multicontroller MAXXUM® 150 Prior operation: Discharge the air conditioning system, see Air conditioning - Discharging (50.200). Prior operation: Disconnect the battery, see Battery - Disconnect (55.302).
  • Page 31 Engine - Engine and crankcase All vehicles WARNING Crushing hazard! The wheels on this vehicle are very heavy. Al- ways use a wheel remover or chain hoists to re- move and install the wheels. Use an assistant as required. Failure to comply could result in death or seri- ous injury.
  • Page 32 Engine - Engine and crankcase 5. 1. Disconnect the radar electrical connector (if equipped). 2. Remove the radar (if equipped). BAIL13TR01648AB WARNING Heavy object! ALWAYS use a hoist or get assistance to lift the component. Failure to comply could result in death or seri- ous injury.
  • Page 33 Engine - Engine and crankcase 9. Detach the fuse box. A. Remove the retaining nuts. B. Detach the wiring harnesses from the retaining clips. BAIL14TR00935AB 10. • Disconnect the alternator electrical connector. • Disconnect the in-line electrical connector. BAIL14TR00936AB 11. Remove the side panel mounting bracket. BAIL14TR00937AB 12.
  • Page 34 Engine - Engine and crankcase 13. Disconnect the starter motor electrical connectors. BAIL14TR00884AB 14. 1. Disconnect the starter motor negative terminal. 2. Disconnect the cab heater supply pipe. 3. Detach the cab heater supply pipe. BAIL14TR00885AB 15. Detach the cab heater supply pipe. BAIL14TR00886AB 16.
  • Page 35 Engine - Engine and crankcase 17. Disconnect the heater supply hose from the rear of the cylinder head. BAIL12APH145AVA 18. Disconnect the engine breather pipe. BAIL14TR00888AB 19. 1. Disconnect the brake fluid reservoir electrical con- nector. 2. Remove the brake fluid reservoir heat shield. BAIL15TR00026AA 20.
  • Page 36 Engine - Engine and crankcase 21. Disconnect the steering pipes. NOTE: Mark the pipes to aid installation. BAIL14TR00940AB 22. Remove the fuel line. BAIL14TR00941AB 23. 1. Disconnect the electrical connector (1). 2. Detach the wiring harness (2) from the bracket. 3.
  • Page 37 Engine - Engine and crankcase 25. Remove the aftercooler left-hand hose. BAIL14TR00945AB 26. 1. Detach the electrical connector from the air-con- ditioning pipe. 2. Disconnect the air-conditioning in-line pipe. 3. Disconnect the air-conditioning compressor pipe. NOTE: Seal all openings using clean blanking caps. BAIL14TR00946AB 27.
  • Page 38 Engine - Engine and crankcase 29. Disconnect the differential lock supply pipe. BAIL14TR00949AB 30. 1. Disconnect the in-line electrical connector. 2. Detach the wiring harness from the clip. 3. Cut the cable tie. NOTICE: Seal all openings using clean blanking plugs. BAIL14TR00950AB 31.
  • Page 39 Engine - Engine and crankcase 33. • Disconnect the air intake temperature (IAT) sensor electrical connector. • Detach the wiring harness from the clips. BAIL14TR00953AB 34. Disconnect the air cleaner sensor electrical connec- tors. BAIL14TR00961AB 35. Disconnect the dosing module electrical connector. BAIL14TR00954AB 36.
  • Page 40 Engine - Engine and crankcase 37. 1. Detach the wiring harness from the clips. 2. Disconnect the in-line electrical connector. BAIL14TR00964AB 38. Disconnect the hood wiring harness in-line electrical connector. BAIL14TR00903AB Vehicles with standard front axle 39. Remove the front wheel drive shaft guard front retain- ing bolts.
  • Page 41 Engine - Engine and crankcase 41. Remove the front wheel drive shaft guard. BAIL14TR00965AB 42. Disconnect the front wheel drive shaft. A. Detach the circlip (1). B. Slide the front wheel drive shaft sleeve (2). BAIL14TR00966AB 43. Remove the front wheel drive shaft. BAIL14TR00967AB Vehicles with suspended front axle 44.
  • Page 42 Engine - Engine and crankcase 45. 1. Remove the circlip (1). 2. Slide the front wheel drive shaft sleeve (2). BAIL13TR01695AB 46. Remove the oil cooler lines. BAIL13TR00747AB 47. 1. Using a suitable trolley jack support the front axle suspension arm. 2.
  • Page 43 Engine - Engine and crankcase 49. Remove the engine to transmission lower outer retain- ing bolts. BAIL14TR00969AB 50. Position the static part of the tractor splitting stand 380003352 under the transmission and secure to the right-hand side of the transmission. BAIL14TR00982AB 51.
  • Page 44 Engine - Engine and crankcase 53. Install the tractor splitting stand 380003352 alignment bar to the front part of the splitting kit. BAIL13TR01696AB 54. Install the larger wheeled part of the tractor splitting stand 380003352 to the front frame and support the weight of the tractor with splitting stand.
  • Page 45 Engine - Engine and crankcase 57. Remove the engine to transmission right-hand side retaining bolts. BAIL13TR00797AB 58. Remove the engine to transmission left-hand side re- taining bolts. BAIL15TR00016AA 59. Roll the front axle and engine assembly away from the transmission. 47938724 19/10/2015 10.1 [10.001] / 18...
  • Page 46 Engine - Engine and crankcase Engine - Connect MAXXUM® 115 Multicontroller MAXXUM® 115 MAXXUM® 125 Multicontroller MAXXUM® 125 MAXXUM® 135 Multicontroller MAXXUM® 135 MAXXUM® 145 Multicontroller MAXXUM® 145 MAXXUM® 150 Multicontroller MAXXUM® 150 WARNING Heavy objects! Lift and handle all heavy components using lift- ing equipment with adequate capacity.
  • Page 47 Engine - Engine and crankcase 5. 1. Install the engine to transmission right-hand side retaining bolts. 2. Torque to 285-315 Nm ( 210-232 lb ft). BAIL13TR00797AB 6. 1. Install the engine to transmission upper retaining bolts. 2. Torque to 285-315 Nm ( 210-232 lb ft). NOTE: The center bolt is unique in length.
  • Page 48 Engine - Engine and crankcase 9. Remove the tractor splitting stand 380003352 align- ment bar from the front part of the splitting kit. BAIL13TR01696AB 10. Remove the smaller wheeled part of the tractor split- ting stand 380003352 from under the engine. BAIL14TR00984AB 11.
  • Page 49 Engine - Engine and crankcase 14. 1. Install the engine to transmission lower outer re- taining bolts. 2. Torque to 285-315 Nm ( 210-232 lb ft). BAIL14TR00969AB 15. 1. Install the engine to transmission lower inner re- taining bolts. 2. Torque to 285-315 Nm ( 210-232 lb ft). BAIL14TR00968AB Vehicles with suspended front axle 16.
  • Page 50 Engine - Engine and crankcase 18. 1. Slide the drive shaft sleeve (2). 2. Install the circlip (1). BAIL13TR01695AB 19. Install the front wheel drive shaft guard. BAIL13TR01694AB Vehicles with standard front axle 20. Install the front wheel drive shaft. BAIL14TR00967AB 21.
  • Page 51 Engine - Engine and crankcase 22. Install the front wheel drive shaft guard. BAIL14TR00965AB 23. Install the front wheel drive shaft guard rear retaining bolts. BAIL14TR00956AB 24. Install the front wheel drive shaft guard front retaining bolts. BAIL14TR00955AB All vehicles 25.
  • Page 52 Engine - Engine and crankcase 26. 1. Attach the wiring harness into the clips. 2. Connect the in-line electrical connector. BAIL14TR00964AB 27. • Connect the nitrogen oxide (NOx) amplifier electri- cal connector. • Connect the air-conditioning compressor in-line electrical connector. BAIL14TR00963AB 28.
  • Page 53 Engine - Engine and crankcase 30. • Connect the air intake temperature (IAT) sensor electrical connector. • Attach the wiring harness into the clips. BAIL14TR00953AB 31. 1. Connect the in-line electrical connector. 2. Attach the wiring harness into the clips. BAIL14TR00952AB 32.
  • Page 54 Engine - Engine and crankcase 34. Connect the differential lock supply pipe. BAIL14TR00949AB 35. Connect the water-in-fuel electrical connector. BAIL14TR00948AB 36. • Connect the ground cable. • Connect the in-line electrical connector. • Connect the fuel line. BAIL14TR00947AB 37. 1. Attach the electrical connector to the air-condi- tioning pipe.
  • Page 55 Engine - Engine and crankcase 38. Install the aftercooler left-hand hose. BAIL14TR00945AB 39. Connect the in-line electrical connector. BAIL14TR00944AB 40. 1. Install the bracket. 2. Attach the wiring harness (2) to the bracket. 3. Connect the electrical connector (1). BAIL14TR00943AB 41.
  • Page 56 Engine - Engine and crankcase 42. Connect the steering pipes. BAIL14TR00940AB 43. Attach the brake fluid reservoir. BAIL14TR00939AB 44. 1. Connect the brake fluid reservoir electrical connec- tor. 2. Install the brake fluid reservoir heat shield. BAIL15TR00026AA 45. Connect the engine breather pipe. BAIL14TR00888AB 47938724 19/10/2015 10.1 [10.001] / 29...
  • Page 57 Engine - Engine and crankcase 46. Connect the heater supply hose to the rear of the cylin- der head. BAIL12APH145AVA 47. Connect the block heater electrical connector (if equipped). BAIL14TR00887AB 48. Attach the cab heater supply pipe. BAIL14TR00886AB 49. 1. Attach the cab heater supply pipe. 2.
  • Page 58 Engine - Engine and crankcase 50. Connect the starter motor electrical connectors. BAIL14TR00884AB 51. Install the starter motor shield. A. Install the starter motor shield retaining bolts. B. Install new cable ties. BAIL14TR00938AB 52. Install the side panel mounting bracket. BAIL14TR00937AB 53.
  • Page 59 Engine - Engine and crankcase 54. Attach the fuse box. A. Install the retaining nuts. B. Attach the wiring harnesses into the retaining clips. BAIL14TR00935AB 55. Install the oil cooler supply and return pipes. BAIL14TR00883AB 56. Connect the oil cooler supply and return pipes. BAIL14TR00882AB Vehicles with front hitch WARNING...
  • Page 60 Engine - Engine and crankcase 58. 1. Install the radar (if equipped). 2. Connect the radar electrical connector (if equipped). BAIL13TR01648AB 59. Install the front hitch hydraulic pipes. BAIL13TR01647AB 60. Connect the front hitch hydraulic pipes to the mid- mount valve. BAIL13TR01645AB All vehicles 61.
  • Page 61 Engine - Engine and crankcase Calibrate the front suspension, see Electronic module Central Control Unit (CCU) - H1 - Calibration procedures (55.640). 47938724 19/10/2015 10.1 [10.001] / 34...
  • Page 62 Engine - Engine and crankcase Engine - Remove MAXXUM® 115 Multicontroller MAXXUM® 115 MAXXUM® 125 Multicontroller MAXXUM® 125 MAXXUM® 135 Multicontroller MAXXUM® 135 MAXXUM® 145 Multicontroller MAXXUM® 145 MAXXUM® 150 Multicontroller MAXXUM® 150 Prior operation: Discharge the air conditioning system, see Air conditioning - Discharging (50.200) Air conditioning - Evacuate (50.200).
  • Page 63 Engine - Engine and crankcase All Vehicles 1. Drain the transmission oil. A. Remove the transmission housing drain plug and drain the transmission oil into a suitable container. B. Install the drain plug and torque to 68 - 82 N·m (50 - 60 lb ft).
  • Page 64 Engine - Engine and crankcase 5. • Disconnect the alternator electrical connector. • Disconnect the in-line electrical connector. BAIL14TR00936AB 6. Remove the side panel mounting bracket. BAIL14TR00937AB 7. Remove the starter motor shield. A. Cut the cable ties. B. Remove the starter motor shield retaining bolts. BAIL14TR00938AB 8.
  • Page 65 Engine - Engine and crankcase 9. 1. Disconnect the starter motor negative terminal. 2. Disconnect the cab heater supply pipe. 3. Detach the cab heater supply pipe. BAIL14TR00885AB 10. Detach the cab heater supply pipe. BAIL14TR00886AB 11. Disconnect the block heater electrical connector (if fit- ted).
  • Page 66 Engine - Engine and crankcase 13. Disconnect the engine breather pipe. BAIL14TR00888AB 14. 1. Disconnect the brake fluid reservoir electrical con- nector. 2. Remove the brake fluid reservoir heat shield. BAIL15TR00026AA 15. Detach the brake fluid reservoir and position it to one side.
  • Page 67 Engine - Engine and crankcase 17. Remove the fuel line. BAIL14TR00941AB 18. 1. Disconnect the electrical connector (1). 2. Detach the wiring harness (2) from the bracket. 3. Remove the bracket. BAIL14TR00943AB 19. Disconnect the A/C compressor high pressure pipe and position it to one side.
  • Page 68 Engine - Engine and crankcase 21. Disconnect the differential lock supply pipe. BAIL14TR00949AB 22. 1. Disconnect the in-line electrical connector. 2. Detach the wiring harness from the clip. 3. Cut the cable tie. NOTICE: Seal all openings using clean blanking plugs. BAIL14TR00950AB 23.
  • Page 69 Engine - Engine and crankcase 25. Disconnect the DEF/A ® dosing module electri- cal connector. BAIL14TR00954AB 26. Disconnect the nitrogen oxide (NOx) module electrical connector. BAIL14TR00972AB 27. 1. Detach the wiring harness from the clips. 2. Disconnect the in-line electrical connector. BAIL14TR00964AB 28.
  • Page 70 Engine - Engine and crankcase 29. • Disconnect the coolant expansion tank lower hose. • Disconnect the exhaust flap coolant hose. • Disconnect the turbocharger air intake tube. BAIL14TR00974AB 30. 1. Disconnect the coolant line from the DEF/ ® dosing module. 2.
  • Page 71 Engine - Engine and crankcase 33. Remove the DEF/A ® lines. BAIL14TR00977AB 34. 1. Disconnect the turbocharger oil pipes. 2. Disconnect the turbocharger electrical connector. BAIL14TR00978AB 35. 1. Disconnect the exhaust flap to turbocharger clamp. 2. Remove the turbocharger mounting bracket re- taining bolts.
  • Page 72 Engine - Engine and crankcase 37. 1. Remove the engine upper frame retaining bolt. 2. Remove the engine upper frame retaining bolts. 3. Remove the engine upper frame retaining nuts. BAIL14TR00989AB 38. Remove the engine upper frame retaining bolts. BAIL14TR00990AB 39.
  • Page 73 Engine - Engine and crankcase 41. Detach the grid heater relay and position it to one side. BAIL15TR00021AA 42. Remove the engine rear frame right-hand side retain- ing bolts. BAIL15TR00022AA 43. Remove the engine rear frame. BAIL15TR00023AA 44. Disconnect the steering motor pipes. BAIL15TR00024AA 47938724 19/10/2015 10.1 [10.001] / 46...
  • Page 74 Engine - Engine and crankcase 45. Install three engine lifting eyes 380200013. BAIL07APH141BVA 46. Remove the engine to transmission lower inner retain- ing bolts. BAIL14TR00968AB 47. Remove the engine to transmission lower outer retain- ing bolts. BAIL14TR00969AB 47938724 19/10/2015 10.1 [10.001] / 47...
  • Page 75 Engine - Engine and crankcase 48. Position the static part of the tractor splitting stand 380003352 under the transmission and secure to the right-hand side of the transmission. BAIL14TR00982AB 49. Secure the static part of the tractor splitting stand 380003352 to the left-hand side o the transmission. NOTICE: The weight of the vehicle must be supported by the static part of the tractor splitting stand 380003352.
  • Page 76 Engine - Engine and crankcase 52. Support the rear of the vehicle. BAIL07APH145AVA 53. Remove the engine to transmission upper retaining bolts. BAIL13TR00798AB 54. Remove the engine to transmission right-hand side retaining bolts. BAIL13TR00797AB 55. Remove the engine to transmission left-hand side re- taining bolts.
  • Page 77 Engine - Engine and crankcase 56. Remove the engine from the transmission. BAIL13TR00795AB 47938724 19/10/2015 10.1 [10.001] / 50...
  • Page 78 Engine - Engine and crankcase Engine - Install MAXXUM® 115 Multicontroller MAXXUM® 115 MAXXUM® 125 Multicontroller MAXXUM® 125 MAXXUM® 135 Multicontroller MAXXUM® 135 MAXXUM® 145 Multicontroller MAXXUM® 145 MAXXUM® 150 Multicontroller MAXXUM® 150 WARNING Heavy objects! Lift and handle all heavy components using lift- ing equipment with adequate capacity.
  • Page 79 Engine - Engine and crankcase 3. 1. Install the engine to transmission left-hand side re- taining bolts. 2. Torque to 285-315 Nm ( 210-232 lb ft). BAIL15TR00016AA 4. 1. Install the engine to transmission right-hand side retaining bolts. 2. Torque to 285-315 Nm ( 210-232 lb ft). BAIL13TR00797AB 5.
  • Page 80 Engine - Engine and crankcase 7. A. Install the engine to transmission lower inner re- taining bolts. B. Torque to 285-315 Nm ( 210-232 lb ft). BAIL14TR00968AB 8. Install the smaller wheeled part of the tractor splitting stand 380003352 under the engine. BAIL15TR00025AA 9.
