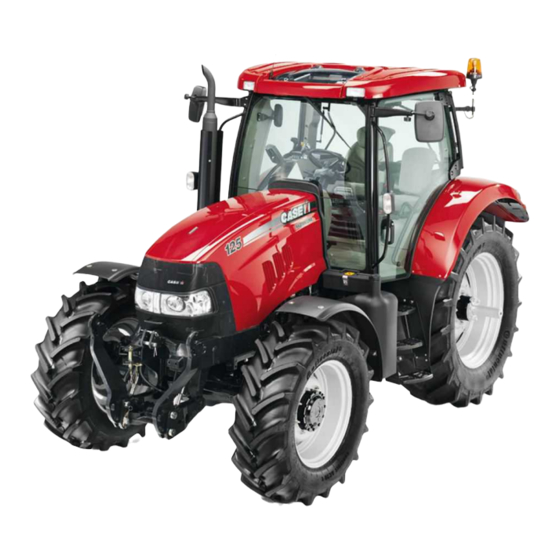

Case IH MAXXUM 100 Service Manual

Tractor with/without multicontroller
Hide thumbs

Advertisement

Quick Links

MAXXUM 100
MAXXUM 110
MAXXUM 115
MAXXUM 120
MAXXUM 125
MAXXUM 130
MAXXUM 140
Tractor with/without Multicontroller
SERVICE MANUAL
Part number 84276322ANA
English
November 2010
