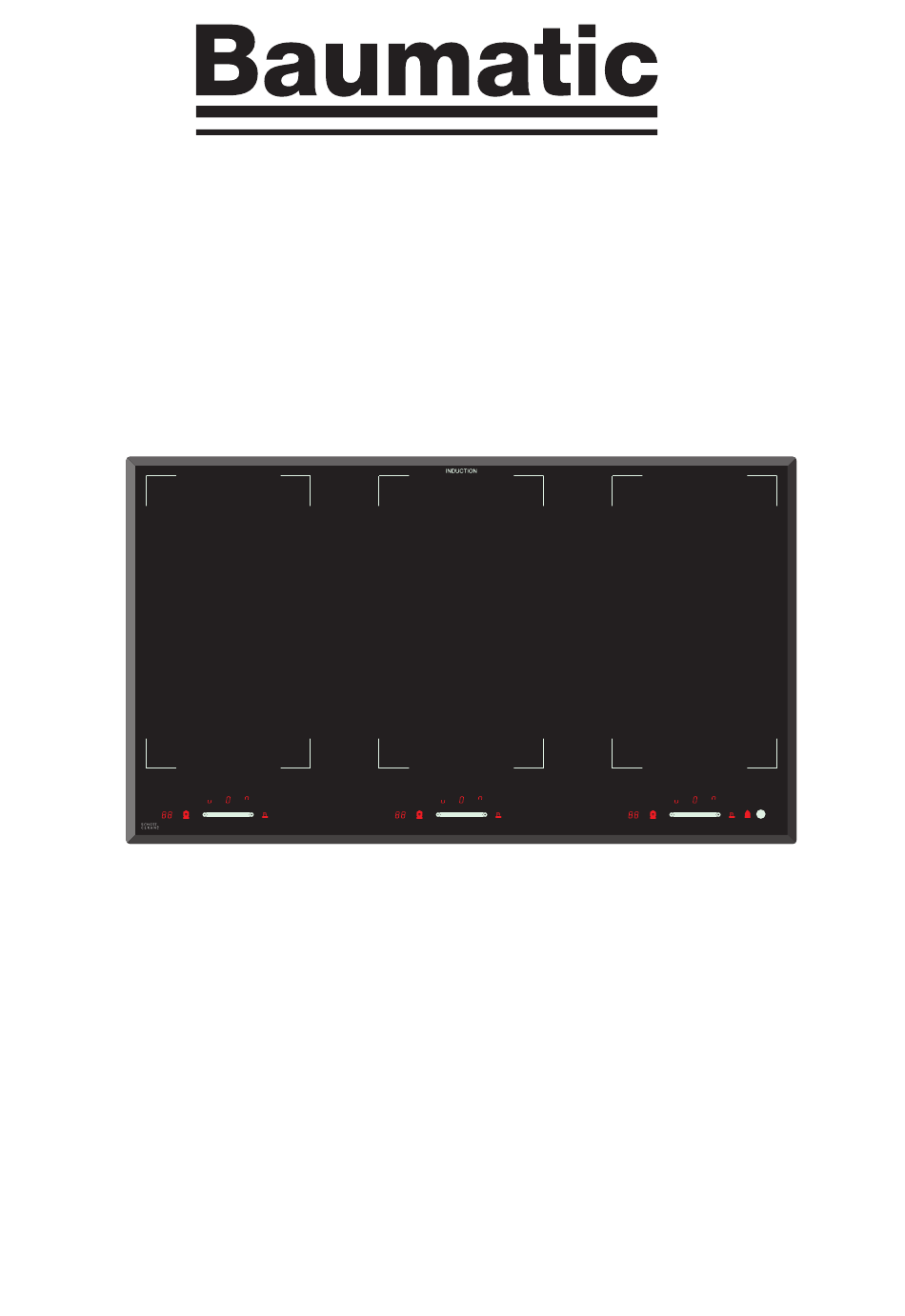

USER MANUAL FOR YOUR BAUMATIC
90cm Induction Cooktop
BC90ITB
NOTE: This User Instruction Manual contains important information, including
safety & installation points, which will enable you to get the most out of your
appliance. Please keep it in a safe place so that it is easily available for future
reference for you or any person not familiar with the operation of the appliance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC90ITB and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BC90ITB

Summary of Contents for Baumatic BC90ITB

  • Page 1 USER MANUAL FOR YOUR BAUMATIC 90cm Induction Cooktop BC90ITB NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future...

  • Page 2: Table Of Contents

    Contents 1. Foreword ..................4 1.1 Safety Warnings ................. 4 1.2 Installation ................4 1.2.1 Electrical Shock Hazard ..........4 1.2.2 Cut Hazard ..............4 1.2.3 Important safety instructions .......... 4 1.3 Operation and maintenance ............5 1.3.1 Electrical Shock Hazard ..........5 1.3.2 Health Hazard ..............
  • Page 3 Contents … continued 5. Heat Settings ................18 6. Care and Cleaning ................. 19 7. Troubleshooting ................20 8. Failure Display and Inspection ............21 9. Installation ................... 22 9.1 Selection of installation equipment ..........22 9.2 Before installing the hob, ensure that ........... 23 9.3 After installing the hob, ensure that..........

  • Page 4: Foreword

    1. Foreword Installation and repairs to this appliance should only be carried out by a qualified technician in accordance with current regulations. 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard ...

  • Page 5: Operation And Maintenance

    your installation costs.  In order to avoid a hazard, this appliance must be installed according to these instructions for installation.  This appliance is to be properly installed and earthed only by a suitably qualified person.  This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

  • Page 6: Cut Hazard

    not be placed on the hob surface since they can get hot  Keep children away.  Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. ...
  • Page 7 specifically recommended in the manual. All other servicing should be done by a qualified technician.  Do not use a steam cleaner to clean your cooktop.  Do not place or drop heavy objects on your cooktop.  Do not stand on your cooktop. ...

  • Page 8: Product Introduction

    Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. 2. Product Introduction Packing List USER MANUAL FOR YOUR BAUMATIC 90cm Induction Cooktop BC90ITB NOTE: This User Instruction Manual contains important information, including safety &...

  • Page 9: Control Panel

    • Do not burn off more than one zone at once. • You must place a saucepan filled half full with cold water on each zone as you burn it off. 2.5 Technical Specification Cooking Hob BC90ITB Cooking Zones 6 Zones Supply Voltage...

  • Page 10: Operation Of Product

    3. Operation of Product 3.1 Touch Controls  The controls respond to touch, so you don’t need to apply any pressure.  Use the ball of your finger, not its tip.  You will hear a beep each time a touch is registered. ...

  • Page 11: Pan Dimension

    Always lift pans off the Induction hob – do not slide, or they may scratch the glass. 3.3 Pan Dimension The cooking zones are, up to a limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone. To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.

  • Page 12: Finish Cooking

    If the display flashes alternately with the heat setting This means that: • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centered on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone.

  • Page 13: Keep Warm

    Cancel the Boost function Touch the heating zone selection control that you wish to cancel the boost function for. a) Touching the boost control “ ”, then the cooking zone will revert to its original setting. b) Touching the slider control, then the cooking zone will revert to the level you select.

  • Page 14: Flexible Area

    3.4.5 Flexible Area • This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime. • Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, the part that is not covered by cookware is automatically switched off after one minute.

  • Page 15: Timer Control

    To unlock the controls Touch and hold the lock control for a while. When the hob is in the lock mode, all the controls are disabled except the ON/OFF you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.
  • Page 16 Touch timer control, the “10” will show in the timer display and the “0” flashes. Set the time by touching the slider control. (e.g. 6) Touch timer control again, the “1” will flash. Set the time by touching the slider control (e.g.9), now the timer you set is 96 minutes.

  • Page 17: Default Working Times

    3.4.8 Default Working Times Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: Keep warm Power level...

  • Page 18: For Stir-Frying

    4.1.3 For Stir-frying 1. Choose an induction compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4.

  • Page 19: Care And Cleaning

    6. Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the cooktop • When the power to the cooktop is glass (fingerprints, off. switched off, there will be no ‘hot marks, stains left by 2. Apply a cooktop cleaner while surface’...

  • Page 20: Troubleshooting

    7. Troubleshooting Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area.

  • Page 21: Failure Display And Inspection

    The induction hob or a Technical fault. Please note down the error cooking zone has turned letters and numbers, switch itself off the power to the induction hob unexpectedly, a tone off at the wall, and contact a sounds and an error qualified technician.

  • Page 22: Installation

    The Cooking Mode High temperature of the Ambient temperature Indicator comes on, but hob. may be too high. Air heating does not start. Intake or Air Vent may be blocked. There is something Check whether the fan wrong with the fan. runs smoothly；...

  • Page 23: Before Installing The Hob, Ensure That

    L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) 875+4 495+4 50 mini Under all circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good a working state as shown below. Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

  • Page 24: After Installing The Hob, Ensure That

    all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).  The isolating switch will be easily accessible to the customer with the hob installed.  You consult local building authorities and by-laws if in doubt regarding installation. ...

  • Page 25: Connecting The Hob To The Mains Power Supply

    9.7 Connecting the hob to the mains power supply This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that: 1. The domestic wiring system is suitable for the power drawn by the hob. 2.

  • Page 26: Disposal

    10. Disposal This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
  • Page 28 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.baumatic.co.nz...
