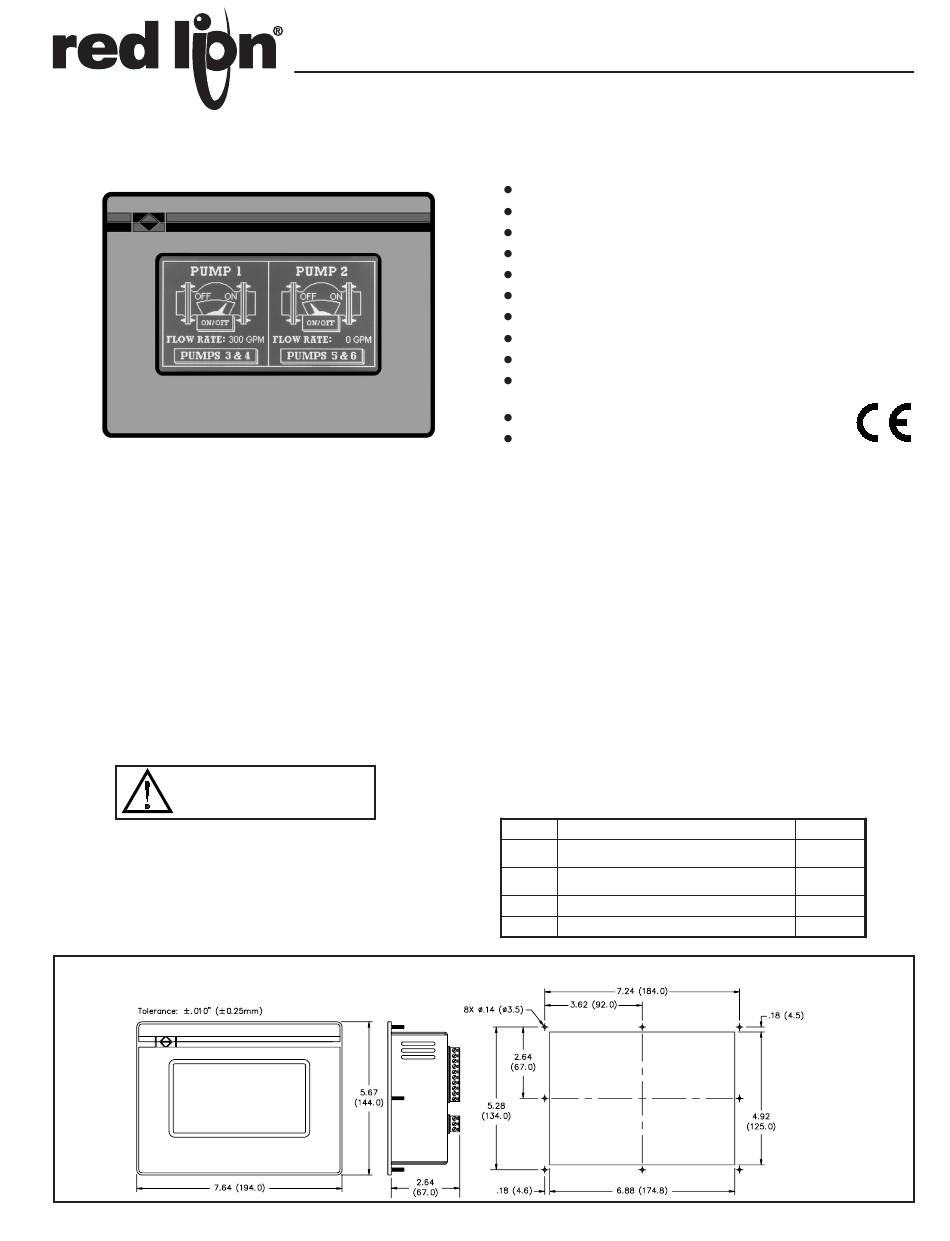

MODEL GL300T

DESCRIPTION

Model GL300T Operator Terminal combines unique capabilities normally
expected only from expensive SCADA packages, with dramatic ease of use. The
GL300T is configured using the same powerful EDICT 97 Software as all Red
Lion Paradigm Operator Interfaces. The results are savings in time to get
challenging applications up and running, and frequent savings in hardware costs
due to replacing many functions usually performed in separate expensive devices.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the unit.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
-
MONOCHROME TOUCHSCREEN OPERATOR INTERFACE
256 X 128 PIXEL VACUUM FLORESCENT DISPLAY(VFD)
MULTIPLE LANGUAGE SUPPORT (UP TO 8 LANGUAGES)
500 ALARM POINT LOGGER
COMPREHENSIVE REPORT GENERATION
POWERFUL RECIPE HANDLING
UNLIMITED PASSWORD PROTECTION
REAL TIME CLOCK BATTERY BACKED
EXPRESSION EVALUATION
32-BIT/FLOATING POINT MATH
DIRECT NETWORK (Including Multiple Protocol) OR MODEM LINK
TO PLC
INDUSTRIAL TOUCHSCREEN
NEMA 4/IP65 ALUMINUM ENCLOSURE

GENERAL SPECIFICATIONS

1. POWER REQUIREMENTS: 11 to 30 VDC @ 7.1 W
Power Up Current: 2.5 A for 1 msec max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 256 x 128 pixel full graphic display with cold cathode backlight.
Text formats up to 16 x 40 characters.
3. MEMORY: 768K (704K user) battery backed RAM (Battery life expectancy
3 years 50/50 on/off cycle).
4. TOUCHSCREEN: Continuous resistive touch screen interface specified for
up to 5 million operations. 200 X 200 touch cells
5. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 60°C
Operating and Storage Humidity: 20 to 80% max. RH (non-condensing) from
0°C to 50°C.
Altitude: Up to 2000 meters
6. MOUNTING REQUIREMENTS: Max. panel thickness is 0.375" (9.5 mm).
For NEMA 4/IP65 sealing, a steel panel with a minimum thickness of 0.125"
(3.175 mm) is recommended

ORDERING INFORMATION

MODEL NO. DESCRIPTION
GL300T 256 X 128 VFD, w/touchscreen, 768 K memory
EDICT-97 Development Kit. Includes Software,
Manual and 9-pin RS232 Programming cables
Communication Cables
Battery Replacement
PANEL CUT-OUT
1
Bulletin No. GL300T-D
Drawing No. LP0501
Released 9/08
PART NUMBER
GL300TVF
SFEDT
P895xxxZ
BNL20000
