CONNECTING TO MONITORS*

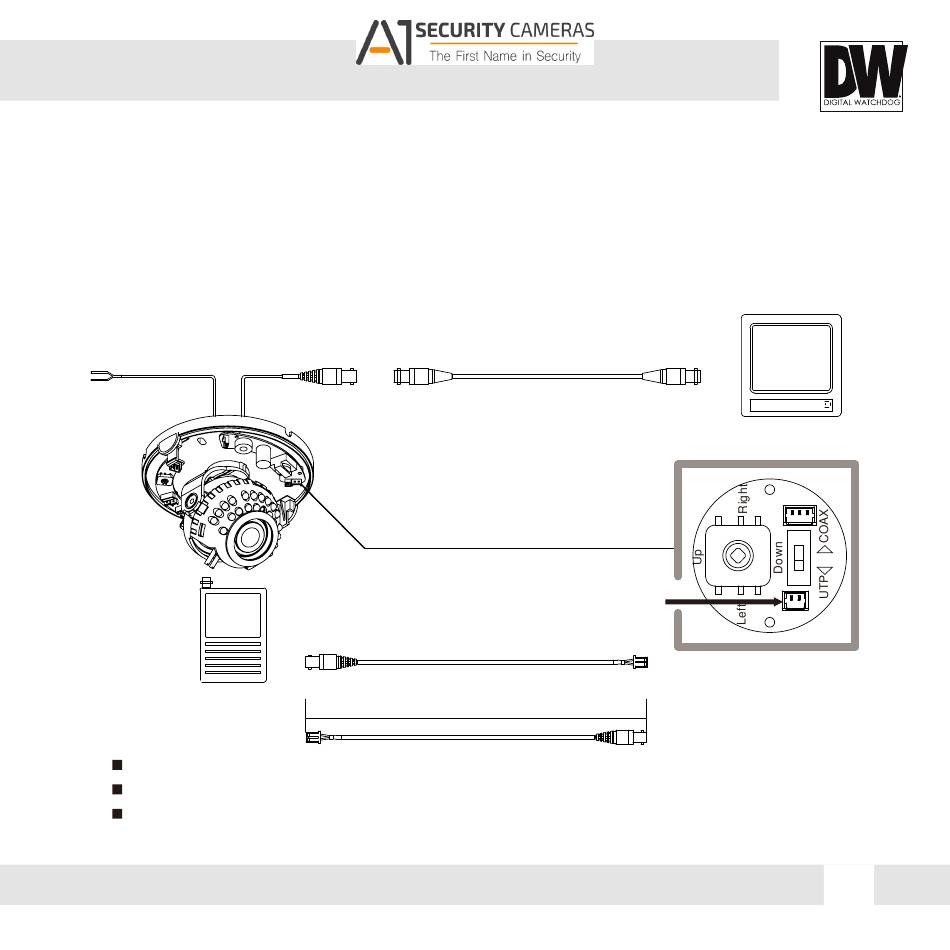

Use the diagram below to connect to a Monitor or CRT Monitor properly.
12VDC/24VAC
Monitor
Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)
All cameras are equipped with a second video output for on-site configuration.
NOTE: Make sure the UTP/ COAX switch is set to the proper connection. If the switch is set, for
example to UTP, but the camera is connected via Coax, the video from the camera will appear black.
