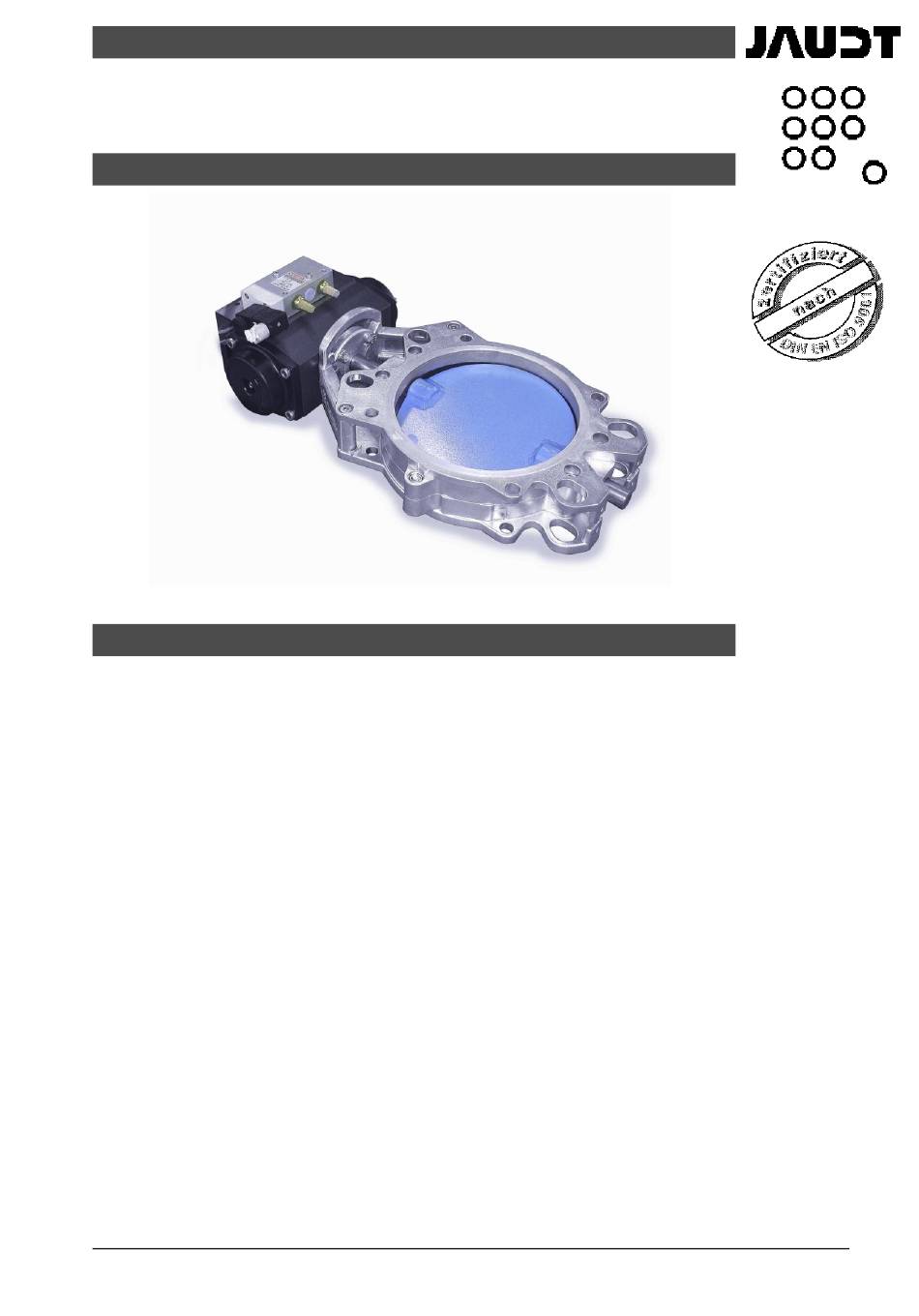

Translation of the original operating instructions JAUDT – VARIO BUTTERFLY VALVE DKV 6008... Contents DESCRIPTION ......................2 Validity of these Operating Instructions ............. 2 Identification Plate ..................2 Supporting documents ..................2 SAFETY INFORMATION ..................3 Areas of Use ....................3 Transport and Storage .................. -
Page 2: Description

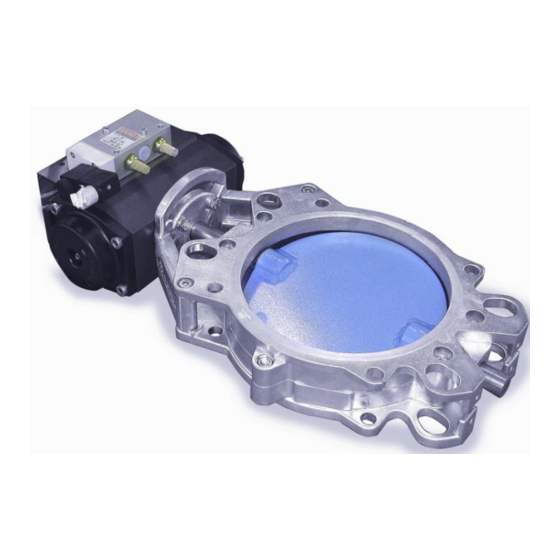

Operating manual DKV 6008… Description JAUDT Vario Butterfly valve are used for the metering and containment of materials transported in pipelines. They are manufactured in the highest quality according to the most modern production methods and are robust, close tightly and have very low maintenance requirements. -
Page 3: Safety Information
In these cases you must wear gloves. On powered JAUDT vario butterfly valves the drive unit is to be fitted with a suitable guard to ensure that it cannot cause injury. This guard is to be provided by the system manufacturer. -
Page 4: Transport And Storage
Transport and Storage JAUDT Vario Butterfly valve may only be transported and stored in the „slightly open‟ position, i.e. with no pressure on the sealing element. Storage temperature +12° C to +20° C, relative humidity approx. 65 %. -
Page 5: Installation
3.2.2 Installation Instructions The installation of JAUDT Vario butterfly valves can be carried out by skilled workmen without the need for special tools or fixtures. Before installation, check the following: The opposing flange surfaces must be parallel. -
Page 6: Drives
Operating manual DKV 6008… Drives Diagram not to scale 1 Sealing plate 9 Electric servo drive 2 Casing half 10 Cylinder mounting 3 Part seal 11 Pneumatic cylinder 5 Bracket 12 Elbow joint 6 Hand-lever 13 Lever 7 Position indicator, sealing plate 14 Pneumatic rotating actuator (PDA) 8 Gripping washer A Identification plate... -
Page 7: Technical Data - Rotating Actuator (Pda)
Connection to power is the sole responsibility of the user and his own qualified personnel. The instructions from the motor manufacturer regarding start-up, maintenance and installed position must be observed. This information can be supplied by JAUDT if necessary. Technical Data – Rotating actuator (PDA) With distribution with a rotating actuator PDA - the technical documentation is supplied of this operating manual. - Page 8 Operating manual DKV 6008… Accessories JAUDT Vario butterfly valves can be equipped with limit switches to acknowledge the position „OPEN - CLOSED‟. The limit switches are pre-adjusted at the factory. The setting must be checked on start-up and re-adjusted if necessary.
- Page 9 Operating manual DKV 6008… 3.6.1 Limit Switch Box (15) This limit switch can be mounted either on the drive side of the pneumatic rotarting actuator (PDA) or on the opposite side. 3.6.2 Limit Switch (16) non-contacting This limit switch can be mounted either on the drive side of the pneumatic rotating actuator (PDA) or on the opposite side.
-
Page 10: Inspection And Maintenance
Danger of injury! Before completing any maintenance work, switch off the power supply (electrical and pneumatic) to powered JAUDT butterfly valves and inform the control room if necessary. a) Visual check of condition, leak-tightness and cleanliness b) Check tightness of screws and fitments c) Operation of the JAUDT Vario butterfly valve with hand-lever;... - Page 11 Operating manual DKV 6008… Maintenance Work Maintenance work should be carried out at 2-yearly intervals. JAUDT Vario butterfly valves in continuous use or being used in extremely critical areas should be serviced annually. The maintenance work always includes the above-mentioned inspections.
-
Page 12: Spare Parts
Operating manual DKV 6008… Spare parts Diagram not to scale 1 Sealing plate 11 Pneumatic cylinder 2 Casing half 12 Ball and socket joint 3 Part seal 13 Lever 5 Bracket 14 Pneumatic rotating actuator (PDA) 6 Hand lever A Identification plate 7 Position indicator, sealing plate 15 Limit switch, box 8 Gripping washer... -
Page 13: Ordering Spare Parts
++ 49 (0)821 7960567. If you have a JAUDT customer number you can also order spare parts at www.jaudt.de. When order spare parts please quote the following information: Designation and item number from the spare parts list (section 5) Order No. -
Page 14: Cleaning
Cleaning agents containing acid and alkaline solutions must not be used. Foodstuffs: If food is to be metered, clean the JAUDT butterfly valve under running drinking water and with a soft brush. If heavily soiled, use commercially available detergents. Make sure that these detergents are not toxic and do not form toxic compounds. -
Page 15: Dimension Sheet For Standard Version
Operating manual DKV 6008… Dimension Sheet for Standard Version (see also dimension sheet in the appendix) © BA_DKV_EN_Rev07-2010.DOC Page 15 von 20... - Page 16 Operating manual DKV 6008… © BA_DKV_EN_Rev07-2010.DOC Page 16 von 20...
- Page 17 Operating manual DKV 6008… © BA_DKV_EN_Rev07-2010.DOC Page 17 von 20...
- Page 18 Operating manual DKV 6008… © BA_DKV_EN_Rev07-2010.DOC Page 18 von 20...
-
Page 19: Tel. +49 821 796
Raiffeisenstr. 3 - 5 86167 Augsburg Tel. ++49 (0)821 79605-0 Documentation officer Wolfgang Morell, JAUDT Dosiertechnik GmbH Vario butterfly valve / 6008… Product denomination / Device Type The above partly completed machinery is governed by the requirements of Directive 2006/42/EC Annex I, its general principles and its Part 1 and where appropriate Point 2.1. -
Page 20: Appendix
