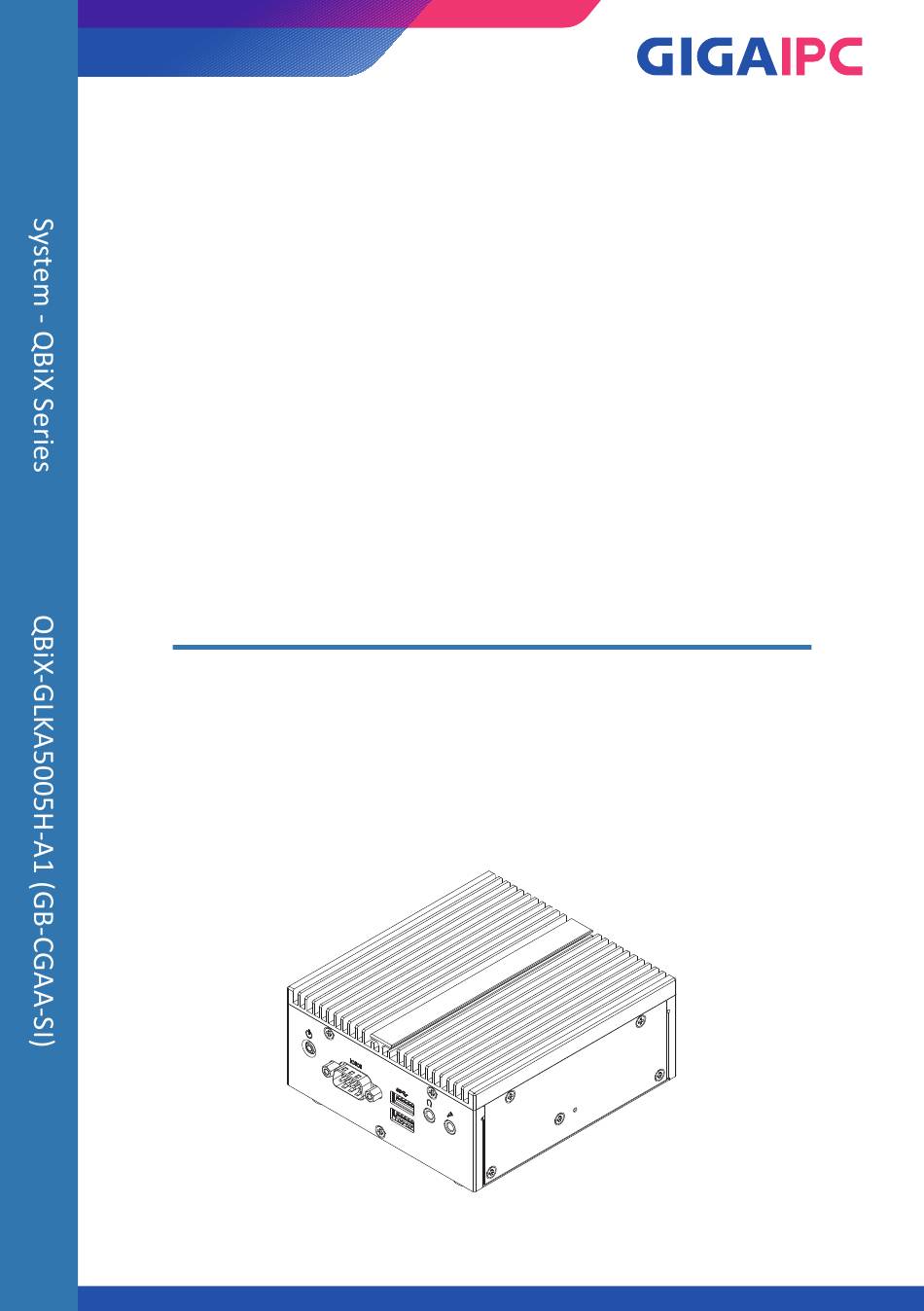

Page 1: Qbix Industrial Embedded System
QBiX-GLKA5005H-A1 (GB-CGAA-SI) QBiX Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
VESA screw, M4-10L x 4pcs, M3-3L x 2pcs HDD screw, M3 x 8L FFC SATA Cable Dehydrate (10G) Thermal pad for HDD If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: Table Of Contents
Chapter 2 – QBiX Industrial Embedded System Kit Dimension ..............16 Getting Familiar with Your Unit........17 A) Wireless Module : How to safely install the Module (Wireless Module inclusion may vary based on local distribution) ..............19 B) Memory Installation: DDR4 SO-DIMM ....20 www.gigaipc.com... - Page 10 Antenna Installation (Antenna inclusion may vary based on local distribution) ............ 21 VESA Bracket ..............22 Support ................ 23 Safety and Regulatory Information ....... 24 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 QBiX-GLK-5005H-A1 System with Rubbed Stand Weight : 764g (bare-bone) www.gigaipc.com...
-
Page 13: Specifications
Specifications System QBiX-GLKA5005H-A1 (GB-CGAA-SI) Dimension System Size : 118W x 109.4D x 54.4H (mm) Intel® Pentium® Silver J5005 Processor 4 cores, 4 threads, up to 2.80 GHz, TDP 10W 4MB Cache Chipset 1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB... - Page 14 System QBiX-GLKA5005H-A1 (GB-CGAA-SI) Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr Vibration During / Per Axis, With SSD Operation Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/ min, 1 hr / Per Axis...
-
Page 15: Chapter 2 - Qbix Industrial Embedded System Kit
Chapter 2 Chapter 2 – QBiX Industrial Embedded System Kit www.gigaipc.com... -
Page 16: Dimension
Dimension QBiX-GLK-5005H-A1 System with Rubbed Stand Weight : 764g (bare-bone) www.gigaipc.com... -
Page 17: Getting Familiar With Your Unit
Getting Familiar with Your Unit [Front Side] [Left Side] PWR bu�on w/ LED Microphone Headphone RS-232 2 x USB3.0 DC-in [Rear Side] [Right Side] WiFi antenna connector (op�on) RJ-45 LAN Port 2 x USB 3.0 HDMI-out (10/100/1000Mbps) www.gigaipc.com... - Page 18 * 打開機殼前 ，請確實移除電源。 * Before Connecting the power, make sure to fasten the case securely. * 接上電源前 ，請確實將機殼完整鎖附 。 [Bottom PCB Side] Information A M.2 2230 WiFi module connector DDR4 2400 MHz SO-DIMM Slot FFC SATA connector www.gigaipc.com...
-
Page 19: A) Wireless Module : How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)
Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com... -
Page 20: B) Memory Installation: Ddr4 So-Dimm
B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com... -
Page 21: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... -
Page 22: Vesa Bracket
VESA Bracket BRIX IoT. VESA BRIX VESA VESA The QBiX can now be mounted by sliding the device into place. 將已安裝VESA支撐架螺絲的QBiX插入VESA支撐架 的滑軌孔，向下壓至定位點後即可固定。 www.gigaipc.com... -
Page 23: Support
Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com... -
Page 24: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com...
