Robertshaw RS9110 Operation Manual

Hide thumbs Also See for RS9110:

Advertisement

Quick Links

RS9110
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS9110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robertshaw RS9110

Summary of Contents for Robertshaw RS9110

  • Page 1 RS9110 Operation Manual...

  • Page 3: Table Of Contents

    RS9110 Table of Contents Page Table of Contents Caution Thermostat Operation DO NOT SWITCH SYSTEM TO Thermostat Quick Reference 4-7 COOL IF THE TEMPERATURE Programming 8-10 IS BELOW 50°F (10°C). THIS CAN DAMAGE THE AIR Installer Setup Menu 11-15 CONDITIONING SYSTEM AND Terminal Designations CAUSE PERSONAL INJURY.

  • Page 4: Thermostat Operation

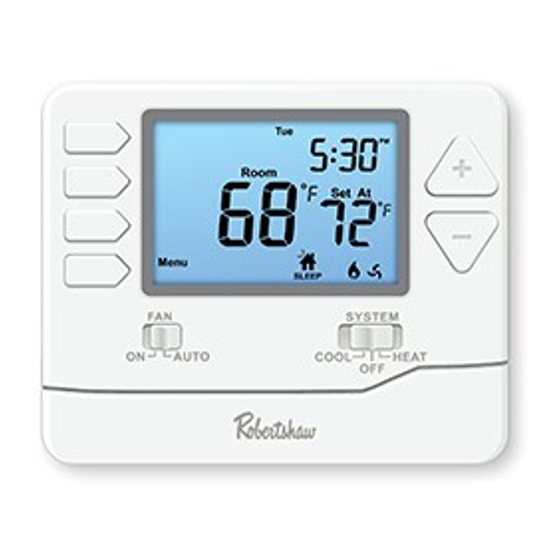

    THERMOSTAT OPERATION Room Set At Menu SLEEP SYSTEM ON AUTO COOL OFF HEAT LCD Screen Temperature Set-Point Buttons Fan Switch User Buttons System Switch...
  • Page 5 THERMOSTAT OPERATION LCD Screen Selecting OFF turns both heating and See page 4 for detailed information. cooling off. Fan Switch Temperature Set-Point Buttons Select ON or AUTO. ON will run the fan continuously. AUTO will cycle the Press the to select fan on only when the heating or cooling the desired temperature.

  • Page 6: Thermostat Quick Reference

    THERMOSTAT QUICK REFERENCE Displays the user selected Days of the week and set-point temperature. time. Hold: Is displayed when thermostat Sun Mon Tue Wed Thu Tech Set program is overridden. Min Com On Next Step Low Battery Com Delay H e a t Cool Swing Indicator: Room...
  • Page 7 THERMOSTAT QUICK REFERENCE Caution: When the battery icon appears, replace the alkaline AAA batteries immediately to avoid damage to your HVAC system. Freezing or overheating could occur. Battery Door Information Install two AAA Alkaline batteries into battery compartment. Be sure to match positive (+) ends of batteries with positive (+) battery terminals in the battery compartment.
  • Page 8 THERMOSTAT QUICK REFERENCE Temperature Adjustment (if Using a Program Schedule) Temporary Adjustment: You may temporarily change the desired temperature set-point by pressing either . The temperature will remain at this set-point until the next programmed WAKE, LEAVE, RETURN, or SLEEP event. The program schedule will then resume.
  • Page 9 THERMOSTAT QUICK REFERENCE Filter Change Reminder The thermostat can be configured to remind you when the air filter needs to be changed. The filter change reminder can be adjusted to up to 2000 hours in 50 hour increments. If the installer configured the thermostat to issue this reminder, FILTER will be displayed when it is time to change the air filter.

  • Page 10: Programming

    PROGRAMMING Set Time of Day and Day of Week 1. Press the MENU button. 2. Press SET TIME. 3. Day of the week will be flashing. Use to select the current day of the week. 4. Press NEXT STEP. 5. The current hour will be flashing. Use to select the current hour.
  • Page 11 PROGRAMMING Custom Programming This thermostat can be configured to have 7 Day or 5+1+1 programming. If 7 Day is selected, all seven days will need to be programed individually. If 5+1+1 programming is selected, Monday–Friday will be programmed together and Saturday and Sunday will need to be programmed individually.
  • Page 12 PROGRAMMING Custom Programming 7. Press NEXT STEP. 8. Repeat steps 4 through 7 for the LEAVE time period, for the RETURN time period, and for the SLEEP time period for Monday–Friday (or Monday if in 7 Day mode). 9. Repeat steps 4 through 8 for the Saturday WAKE, LEAVE, RETURN, and SLEEP time periods, and then again for the Sunday WAKE, LEAVE, RETURN, and SLEEP time periods for the 5+1+1 program schedule, and for each day for the 7-day program schedule.

  • Page 13: Installer Setup Menu

    INSTALLER SETUP MENU 1. Press MENU. 2. Press and hold TECH SET for 3 seconds. 3. Configure the installer options as desired using the table on page 12. 4. Use to change settings and the NEW STEP or PREV STEP to move from one option to another. Note: Only press DONE when you want to exit the Installer Setup Options.
  • Page 14 INSTALLER SETUP MENU Settings Display Adjustment Options Default The filter change reminder Next step This setting will flash FILT in the can be adjusted from OFF Filter display after the elapsed run time to 2000 hours in 50 hour Change to remind the user to change the increments.
  • Page 15 INSTALLER SETUP MENU Settings Display Adjustment Options Default Tech Settings LCD Will Show Adjustment Options Default The compressor short cycle Next step Compressor delay setting will not allow the The compressor short cycle Short Cycle compressor to be turned on for 5 delay setting can be removed minutes after it was last turned off by selecting OFF.
  • Page 16 INSTALLER SETUP MENU Settings Display Adjustment Options Default Next step Select F for Fahrenheit F for Fahrenheit For C temperature display or select C for Celsius display. C for Celsius Prev step Next step 12 or 24 Select a 12 or 24 hour Hour Clock to select 12 or 24 clock setting.
  • Page 17 INSTALLER SETUP MENU Settings Display Adjustment Options Default This thermostat can be configured to have 7 Day, 5+1+1 programming or be non-programmable. Next step If 7 Day is selected, in Set Time all seven days will need to be Program programmed individually.

  • Page 18: Terminal Designations

    TERMINAL DESIGNATIONS RH ....24VAC Heating RC ....24VAC Cooling C ....Common 24VAC (system power supply) W ....HEAT Y ....COOL G ....FAN B ....REV VALVE HEAT O ....Cooling Activated Reversing Valve...
  • Page 20 Customer Service +1.800.304.6563 Technical Service +1.800.445.8299 Use Phone Year HVACCustomerService@robertshaw.com to Scan for Limited 352-00311-001 Rev. B www.robertshaw.com • 352-00301-001 Warranty Info Warranty © 2021 Robertshaw Controls Company. Robertshaw is a trademark of Robertshaw Controls Company. ®...
