AMG AMG3784RN-DR-SF Instruction Manual

Ethernet and Dual Redundant Operation on a single fibre ring
- includes AMG NMS Network Management Interface

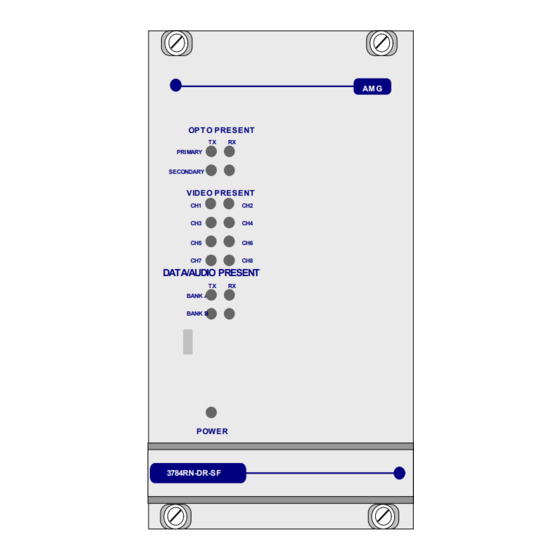

10/100
ETHERNET
AMG
OPTO PRESENT
TX RX
PRIMARY
SECONDAR
Y
VIDEO PRESENT
CH1 CH2
CH3 CH4
CH5 CH6
CH7 CH8
DATA/AUDIO PRESENT
TX RX
BANK
A
BANK
B
POWER
3784RN-DR-SF
The AMG3784RN-DR-SF(Alcatel) is a rackmount eight channel video receive unit designed to 'drop off' eight
video signals from a single fibre optical fibre ring. When fitted with a X16003 Ethernet Interface Board, it also
provides a 10/100BaseT Ethernet interface. The X16003 Ethernet Interface Board is ordered as a separate
item. The AMG3784RN-DR-SF(Alcatel) is designed to plug into an AMG2000 or an AMG2005 subrack which
in turn fits into a 19" rack system. It also includes an AMG Network Management Interface to allow
management of the system using the AMG SNMP enabled management software.
The AMG3784RN-DR-SF(Alcatel) is designed to operate with AMG3783-1-DR-SF(Alcatel), AMG3783-2-
DR-SF(Alcatel), AMG3783-4-DR-SF(Alcatel), single channel, dual channel, 4 channel video insert units
respectively or their rackmount equivalents. Each receiver will 'drop off' up to eight or the video channels
which are being transmitted around the ring.
Index
Introduction .......................................................................................................... 2
Connections ......................................................................................................... 2
Indicators ........................................................................................................... 3
Physical Information ........................................................................................... 4
Ethernet Operation .............................................................................................. 4
The Management Interface ................................................................................. 4
Safety
Maintenance and Repair ..................................................................................... 6
AMG Systems Ltd. reserves the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
Eight Channel Video Receive Unit with
Unit Functional Schematic ................................................................ 2
Video Output connections ................................................................. 2
Optical Connections .......................................................................... 2
Power Connections ........................................................................... 3
Data Connections.............................................................................. 3
Dimensions........................................................................................ 4
Mounting Details................................................................................ 4
Management Port Pinout .................................................................. 4
Alarm Output and Reset Operation................................................... 5
........................................................................................................... 6
AMG3784RN-DR-SF(Alcatel)
Instruction Manual
Page 1 of 6
PRIMARY CH5 CH1
TX RX
CH6 CH2
SECONDARY
TX RX
CH7 CH3
CH8 CH4
Page No.
AMG3784RN-DR-
SF(Alcatel) Instruction Sheet
D16634-00.doc
