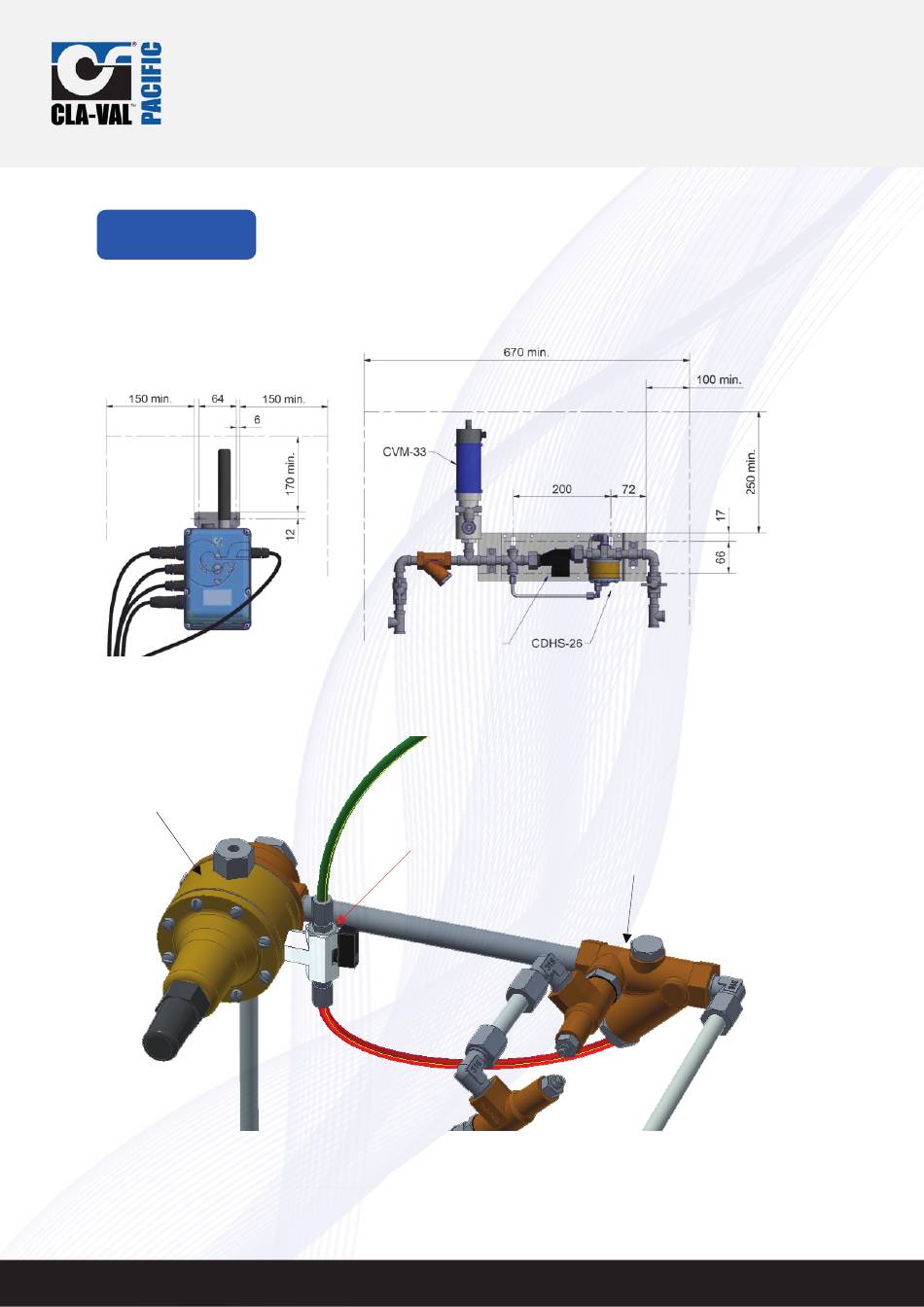

- Page 1 CLA-VAL VC12 Quick Start Instructions Hardware X-143MP & CVM-33 Assembly VC12 Assembly X143MP CPM Assembly CPM pilot 3-Way valve X43 Strainer Visit www.cla-valpacific.com for more details. Contact the Factory at info@cla-valpacific.com...
-
Page 2: Mounting Instructions
VC12 is mounted vertically with the USB and antenna connectors on the top. Connect the various elements to the VC12 The connection to the VC12 controller is made via circular plug connectors which are pre-wired, therefore no internal wiring is necessary. Each connector has a pre-defined function which only allows the relevant component to be connected (dedicated connectors). - Page 3 (approximately 5 seconds) until a green light flashes. Display the list of Wifi discovered devices on your computer a) Click on the Wifi icon and select the VC12 in the devices list for connection via Wifi. VC12-Loic b) Enter the Wifi security key shown on the VC12 OLED display to allow Wifi...
- Page 4 VC12 (approximately 5 seconds) until a green light flashes. Display the Wifi discovered devices on your mobile b) Click on the Wifi icon and select the VC12 in the devices list for connection via Wifi. VC12-Loic Visit www.cla-valpacific.com for more details. Contact the Factory at info@cla-valpacific.com...
- Page 5 Connect to the VC12 controller a) Launch a VNC viewer (for instance VNC Viewer). b) Create a new connection & enter the IP address and password shown on the VC12 OLED screen in the VNC viewer application. VC12-Loic c) Launch the connection and click OK for unencrypted connection, then Introduce the password shown on the VC12 OLED screen in second screen of VNC viewer application.
-
Page 6: Led Diagnostics
1) 5 sec Fixed lower LED blinks green during system boot up Green (OLED display and Bluetooth activation). c) After the VC12 commissioning is completed, the VC12 in service OLED display is off. Lowest LED flashes green every 10 seconds... - Page 7 Electronic operation (Auto) Turn the 3 -Way valve handle towards the Green tube (connected to the CVM Motor) Cla-Val Pacific AUTOMATIC CONTROL VALVES 45 Kennaway Road, Woolston, Christchurch !"#$%# 45 KENNAWAY ROAD...
