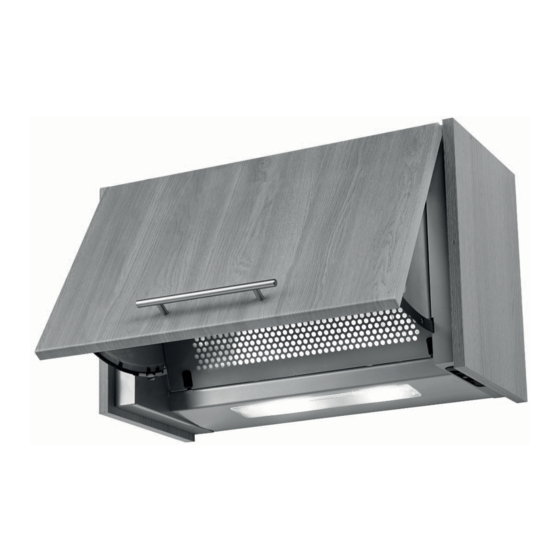

- Page 1 60cm Integrated Extractor LAM2203 New Product Image User Guide www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 Dear Customer, Congratulations on your choice of extractor. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the oven. • Always follow the safety instructions. • Keep this user manual within easy reach for future reference. •...
-
Page 4: Table Of Contents
User manual LAM2203 Index Before using the Extractor Safety General Fire Safety Safety for Children Safety When Working with Electricity General Information & Operation Extractor Layout Control Panel Layout Using Your Cooker Hood Care and Maintenance General Cleaning Grease Filters... -
Page 5: Before Using The Extractor
Before using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and from the Extractor. • It is recommended that you clean the extractor’s surface before using for the time. Safety • Repair procedures must always be performed This appliance is for domestic extraction service agents. -
Page 6: Fire Safety
User manual LAM2203 Fire Safety • When installed between adjoining wall When installing the hood, ensure that the cabinets, the cabinets must not overhang the following recommended distances are observed hob. between the highest point on the hob top (including the burners) and the bottom of the •... -
Page 7: General Information & Operation
General Information & Operation Exhaust / Recirculation Vent Wall Cabinets Cabinet Door / Facia Light Air Intake Control Panel Control Panel Layout Light Off Extraction Off Light On Extraction Level Low Motor Neon Indicator Extraction Level Medium Extraction Level High 1. -
Page 8: Using Your Cooker Hood
User manual LAM2203 Using Your Cooker Hood Make sure that it has been installed by a suitably person, as per the installation instructions. To use your cooker hood • The control panel can be located by opening Induction Hobs - Metal Surfaces of the Extractor... -
Page 9: Care And Maintenance
Care and maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call the service number on the rear cover of this booklet or a suitably repairer. -
Page 10: Carbon Filters
User manual LAM2203 The Carbon Filter (not supplied) Replacing the Lamps If the appliance is going to be used in recirculation The extractor hood is s that may mode then it is necessary to need to be replaced periodically. This will help to absorb odours caused by cooking. -
Page 11: Installation
Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits ) . -
Page 12: Before Beginning Installation
User manual LAM2203 Before beginning installation Installing your cooker hood • Check that the product purchased is of a You will have to decide before installing your suitable size for the chosen installation area. cooker hood whether to use it in extraction mode In addition check whether there is an electrical or recirculation mode. - Page 13 Once correctly aligned to the cabinets, securely fix Prepare mounting brackets, checking that the the extractor to the side cabinets through screw holes retainer screw (F) is fitted. in the side panels of the extractor. Mark the wall with a pencil for height above the worktop and fixing bracket hole centres.Fix brackets to the wall securely.
-
Page 14: Electrical Connections
User manual LAM2203 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your Extractor is intended for permanent installation. Your appliance must be connected to i r i t e l with at least 3mm contact separation. The isolation switch must be accessible after installation. (See technical data for fuse rating). -
Page 15: Technical Specifications
TECHNICAL INFORMATION Dimensions: Width (canopy): 600mm Depth (canopy): 270mm Height (canopy): 380 mm Your Cooker Hood is with: Single motor 130W Slider control operation 3 Speeds 2 Lamps E14 28W Optional Extras: Charcoal HJA2914 Ducting kits: APL 2805/6 Grease filter: HJA2913 Page _ 15 www.howdens.com... -
Page 16: Troubleshooting
User manual LAM2203 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Lamp fails to operate? A replacement lamp is probably Disconnect the mains electricity supply before necessary, but check that adjusting or replacing the lamp. the lamp is correctly into its holder. -
Page 17: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 18 Product Fiche Commission Regula on (EU) No 66/2014 Model AM2203 kWh/a 117.7 6.1 % hood 106.5 hood 121 m3/h 212 Pa 215 m3/h 117W middle 59dB...
