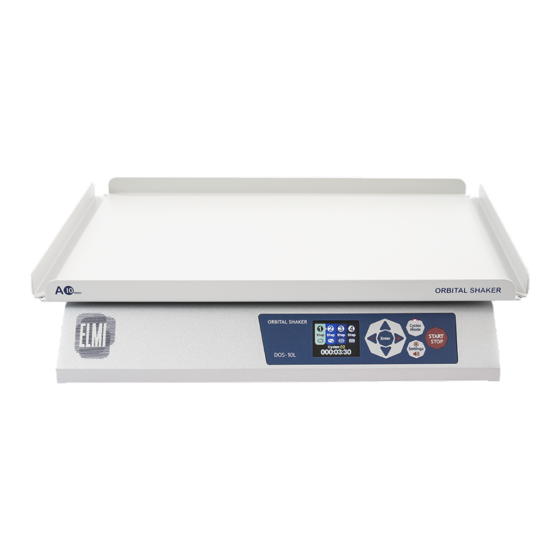

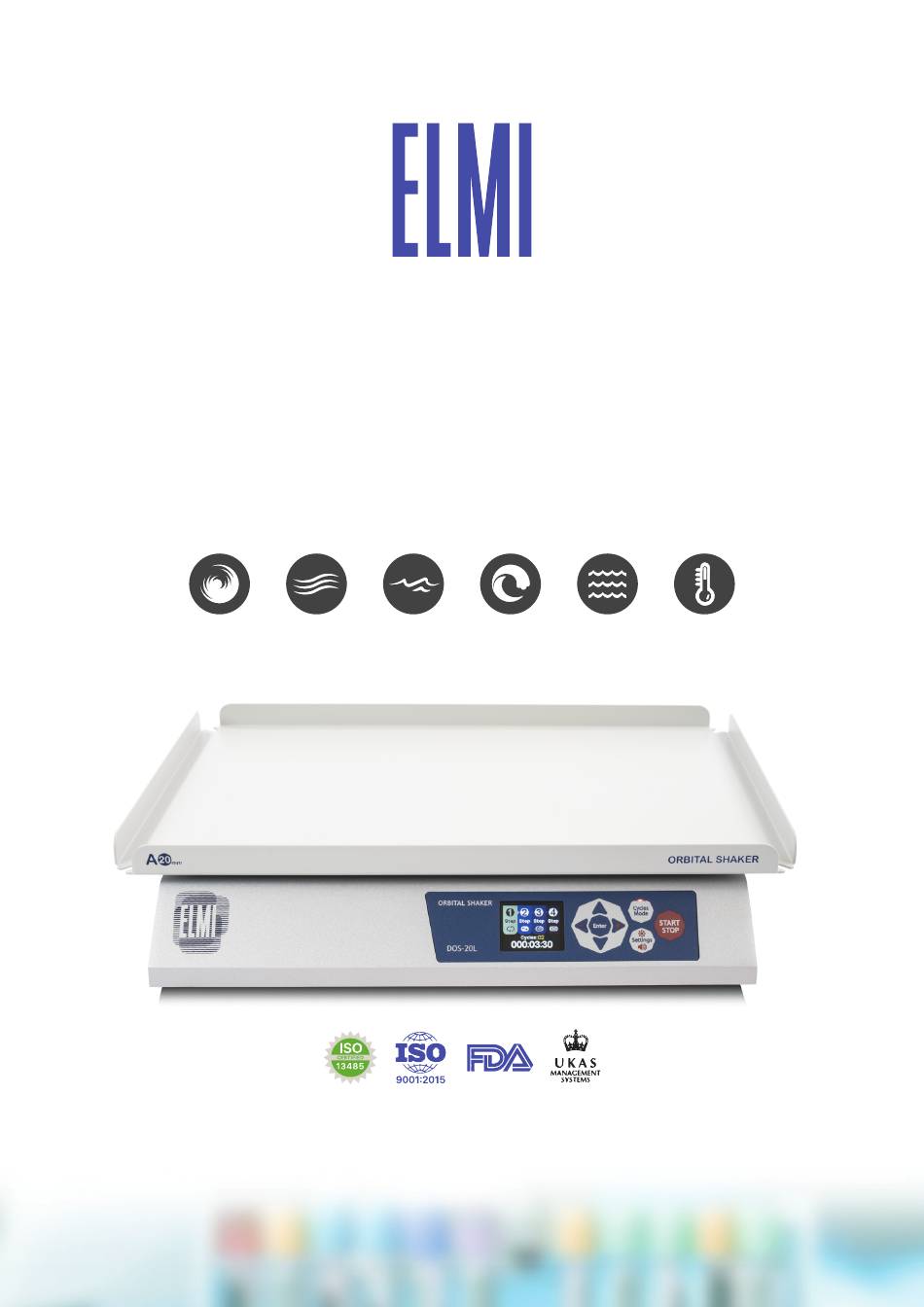

- Page 1 USER MANUAL Digital Orbital Shacker DOS-10L Orbital Rocking Reciprocal Autoreverse Vibration Incubation Rotation Platform Wave Rotation elminorthamerica.com...
-
Page 2: Table Of Contents
Certificate of sale . . . . . . . . . . . . . . . . . . . . . . . . 14 USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 3: Introduction
Congratulations, you have acquired an ELMI shaker - product of advanced technology and high quality! DOS-10L shaker is easy to use and reliable in operation . We ask you to carefully read the user manual and observe all maintenance and operation requirements, as this will ensure long and flawless use of the device. -
Page 4: Safety
. • Check for other signs of damage or malfunction . ATTENTION ! If there is any apparent damage or malfunction, DO NOT TURN ON the shaker without consulting a specialist . USER MANUAL | Digital Orbital Shaker DOS-10L... - Page 5 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . Control panel USER MANUAL | Digital Orbital Shaker DOS-10L...
-
Page 6: Control Description
Entering and exiting key in programming Start stop key . mode to set the step parameter . Setting key to man- Entering and exiting age the interface of key to programming device . mode . USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 7: Using The Device (Main Menu)
Using the navigation keys, select the desired mode and set required values for each parameter . Press and hold the left or right navigation key to quickly change the value of a parameter . USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 8: Orbital Rotation Mode
Adjustable RPM, time and the number of one way rotations . Options: • TIMER: 1 minute - 99 .59 minutes - continuous mode . • PRM: 15 RPM - 500 RPM . • TURNS: 5 - 25 . USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 9: Reciprocal Mode
Ability to customize the speed settings, time and amplitude of the shake-up . Options: • TIMER: 1 minute - 99 .59 minutes - continuos mode . • PRM: 07 - 20 . • Amplitude: 1mm - 2mm USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 10: Programming Menu
Reciprocal mode Vibration mode Pause Disable step The number of repeat cycles can be set in the bottom line of programming main menu, ranges are from 1 to 99, plus continuos mode . USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 11: Programming Menu
Go to the step menu’s bottom line and select the “NO OPERATION” mode and press “ENTER” . Go to the program menu bottom line and set the cycle value to 1 . The program is ready! Press start button to run the program. USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 12: Additional Modes
In the interface menu you can adjust the display brightness, sound volume, and select the interface language . All settings are made using the navigation keys . To enter and exit the menu use the “SETTINGS” key . USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 13: Disinfection And Cleaning
If the above warranty requirements are not met, repair charges are applied to the customer . • For all further questions concerning usage and maintenance, please contact the manufacturer or product vendor . USER MANUAL | Digital Orbital Shaker DOS-10L... -
Page 14: Certificate Of Approval
Date of sale _____________________________________________________________________________________________________________ . Manufacturers’ address . 21-133 Aizkraukles Str ., Riga LV-1006 Tel: (+371) 6755 8743 Fax: (+371) 6755 1934 E-mail: info@elmi-tech . c om www . e lmi-tech . c om USER MANUAL | Digital Orbital Shaker DOS-10L... - Page 15 5115 Douglas Fir Rd Suite G, Calabasas, Caifornia 91302 info@elminorthamerica . c om elminorthamerica.com Europe Phone: (371) 6755-8743 21-133 Aizkraukles Str ., Riga LV-1006 Fax: (+371) 6755 1934 E-mail: info@elmi-tech . c om www.elmi-tech.com © ELMI North America, Inc . August 2016...
