CONNECTOR
S-Video In
Video In
Audio In (L/R)

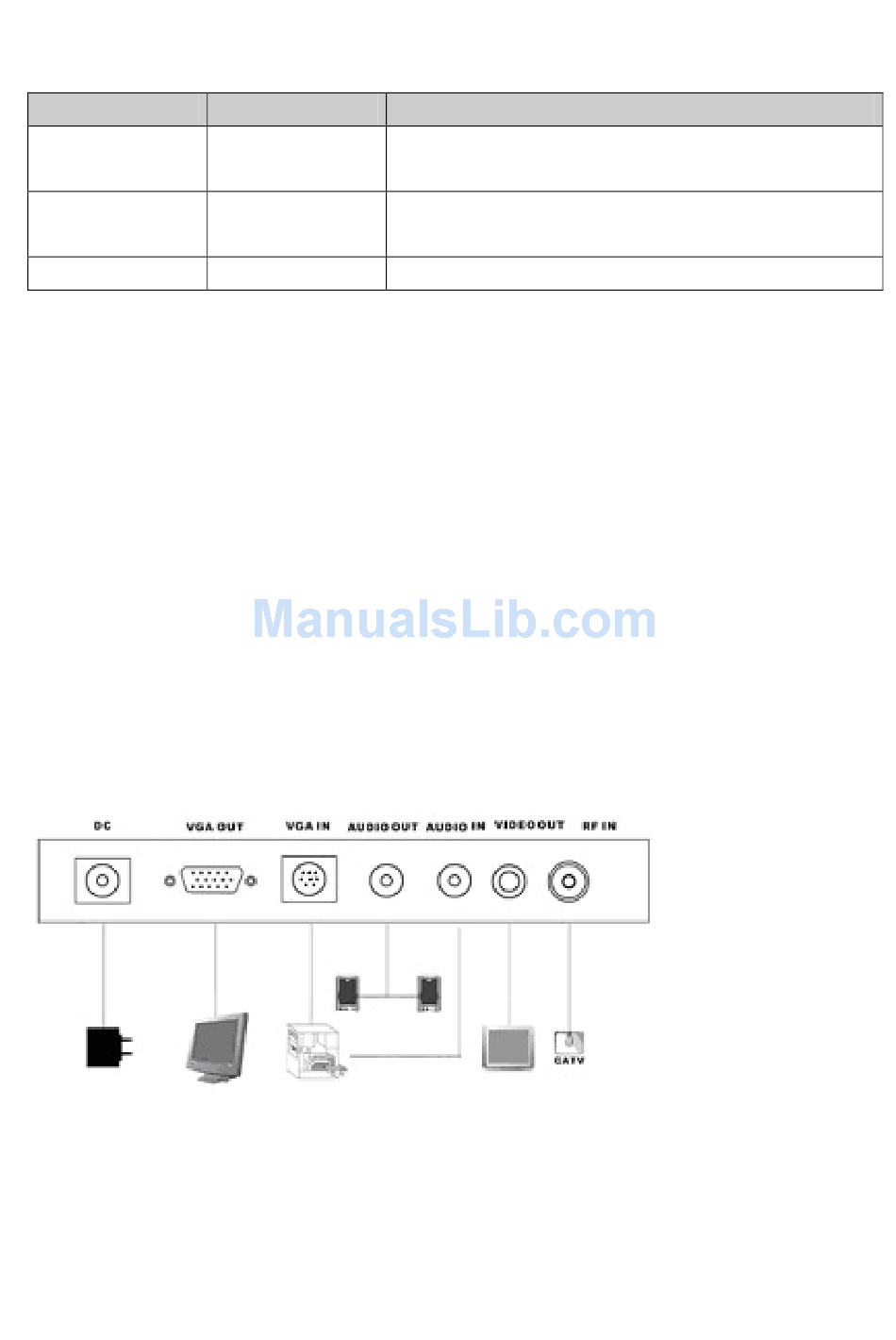

2.3 Cable Connections
There is no sequential requirement which cable should be connected first except AC
adapter, it is strongly recommended connecting the AC adapter as the last step when
finish all the connection.
*For Macintosh users: The connector or cable requirements may be different, the
ENXTV-X2 package does not contain such accessories. Owners may need to get it form
the Macintosh store.
2.4 External Audio/Video input connection
When connecting the ENXTV-X2 with the external A/V source such as DVD, VCR or Camcorder
and to enjoy the high quality visual / sound entertainment, please turn off the power and make the
correct connection as the diagram indicated below.
TYPE
7-pin Min Din
connector
RCA Jack
RCA Audio jack
DESCRIPTION
S-VHS type external video input source. Can be used for
DVD, VCR or Camcorder
External composite video input source, can be connected to
DVD, VCR or Camcorder.。
RCA audio jack used for external audio input source.
