Summary of Contents for Encore ENLTV-FM3

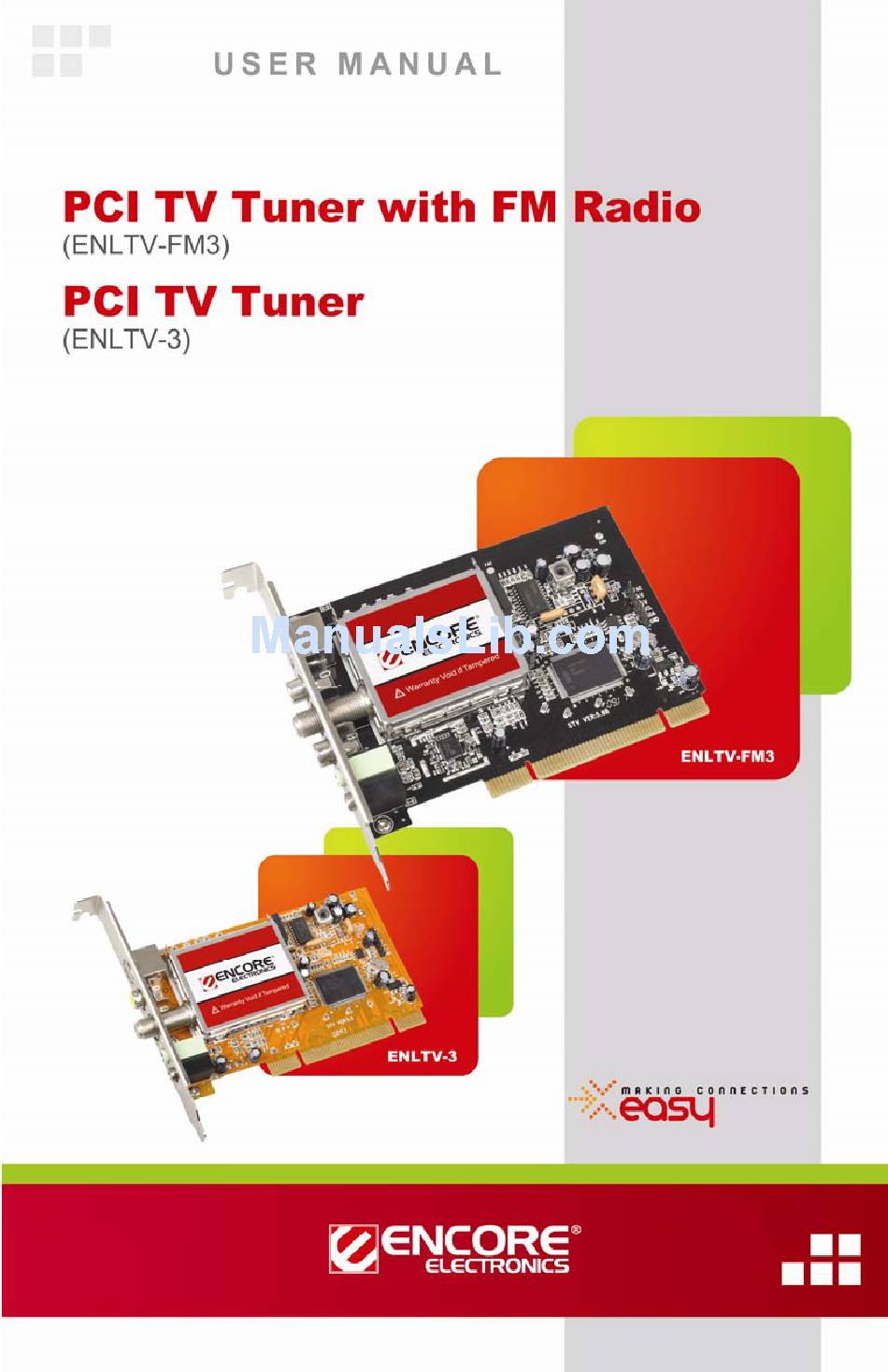

- Page 1 COVER...
- Page 2 User’s Notice No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of us.
-
Page 3: Table Of Contents
® 2.3 — Installing DirectX ..............10 2.4 — Installing ENLTV-FM3 / ENLTV-3 Utility Programs ....10 2.5 — Uninstalling ENLTV-FM3 / ENLTV-3 Utility Programs ..12 Chapter 3: Getting Started............... 13 Running ENLTV-FM3 / ENLTV-3 Program for the First Time and Searching for TV Channels ............ -
Page 4: Chapter 1: Introduction
Chapter 1: Introduction 1.1 — Package Contents The following items are included in the package. PCI TV Tuner Adapter with FM Radio* (* only in ENLTV-FM3) FM Antenna**, 265cmx1 (**only in ENLTV-FM3) PCI TV Tuner Adapter*** (*** only in ENLTV-3) -
Page 5: Chapter 2: Hardware And Software Installation
Chapter 2: Hardware and Software Installation 2.1 — Installing Hardware Install the PCI TV Tuner card to the computer’s available PCI slot according to your computer’s user manual and new hardware installation instructions. Note: Make sure the computer’s power cord is unplugged before inserting the TV Tuner card to the PCI slot. -
Page 6: Connection Diagram
Connection Diagram Only in Linux®: connect the Audio Line-Out on TV tuner to Audio Line-In on sound card. Only ENLTV-FM3 has FM antenna port. Do not insert or remove the Remote Control Sensor Cable while the computer is powered-on. Otherwise, it may cause the TV tuner to malfunction. -
Page 7: Installing Driver
2.2 — Installing Driver After the hardware is properly installed in your desktop PC, you can start installing the TV Tuner driver and utility software. Please use the Installation CD that comes in the package. Follow the on-screen instructions and the guidance below. A. - Page 8 Click “Continue Anyway” when you see this notification — “The software you are installing has not passed Windows Logo testing to verify its compatibility with Windows XP.” Click “Continue Anyway” again, when you see this notification — “The software you are installing for this hardware has not passed Windows Logo testing to verify its compatibility with Windows XP.”...
-
Page 9: Windows Vista
B. — Windows Vista® After properly installed the hardware, please turn on your PC. The “Found New Hardware Wizard” window will appear since no driver is installed yet. Click “Cancel” to close the “Found New Hardware Wizard” window. Insert the Installation CD into the CD-ROM drive. The setup screen will automatically appear. -
Page 10: Is The Driver Properly Installed In Windows
Start→Settings→Control Panel→ Device Manager Then, open “Sound, video and game controllers” and you should see “Encore PCI TV Tuner Adapter with FM Radio” now. If there is any yellow or red warning sign under “Sound, Video and Game Controllers,” you should uninstall the driver with the warning sign, reboot the computer, and install the driver again. -
Page 11: Installing Directx
Before you click “Finish” on the last window, please save your work and then close all applications. Your PC will reboot automatically after you click “Finish.” 2.4 — Installing ENLTV-FM3 / ENLTV-3 Utility Programs Insert the installation CD into the CD-ROM drive. The setup screen will automatically appear. - Page 12 However, we recommend you not to select this option and click “Finish” directly. Subsequently, we recommend you to reboot the computer before you run the ENLTV-FM3 / ENLTV-3 utility program for the first time.
-
Page 13: Uninstalling Enltv-Fm3 / Enltv-3 Utility Programs
2.5 — Uninstalling ENLTV-FM3 / ENLTV-3 Utility Programs There are two ways to uninstall the Utility programs. The procedures are the same in both ENLTV-FM3 and ENLTV-3. The preferred method. Go to “Start → All Programs → ENLTV-FM3 → Uninstall ENLTV-FM3”... -
Page 14: Chapter 3: Getting Started
Chapter 3: Getting Started Running ENLTV-FM3 / ENLTV-3 Program for the First Time and Searching for TV Channels To start the ENLTV-FM3 utility program, go to “Start” → “ENLTV-FM3” folder “ENLTV-FM3” utility program. Sample “Start Menu” in Windows Vista® Note:... - Page 15 Second is to search for Channel: Choose the “Country” you are in. Choose “TV Scan Type:” Cable, Antenna or Extend. (This is based on whether you are connecting to a TV antenna or cable TV. If you do not know the connection type, you can choose Extend.
- Page 16 The default is 10 minutes. We strongly recommend you to change it to minutes. Also, check the Save Record box if you want to view the Time-Shift Recording videos in ENLTV-FM3 / ENLTV-3 MoviePlayer. Display Quality determines the video quality on computer monitor. Record determines the quality of normally recorded videos (not Time-Shift Recording).
-
Page 17: Chapter 4: Using Enltv-Fm3 / Enltv-3
Chapter 4: Using ENLTV-FM3 / ENLTV-3 4.1 — Overview Note: You can double-click the Display Window and view in full-screen. The Right-Click Menu is enlarged for illustration purpose. The real menu will be relatively smaller on your screen. -
Page 18: Control Panel Overview
A. — Control Panel Overview A. Regular Control Panel B. Control Panel in Full-Screen* Note: The number of each function in illustration B. Control Panel in Full-Screen is the same as the corresponding function in illustration A. Regular Control Panel. -
Page 19: Remote Control Overview
B. — Remote Control Overview Note: You have to point the Remote Control directly at the Remote Control Receiver. It is a good idea to place the Remote Control Receiver on top of your monitor. Do not insert or remove the Remote Control Sensor Cable while the computer is powered-on. - Page 20 4.2 — Watching TV Shows There are 4 ways to change TV channels: Click (8) Channel Up (9) Channel Down to move one channel at a time. Or, press [H] CH ▲ [I] CH ▼ on the Remote Control. Click (6) Channel List and select a specific channel.
-
Page 21: Recording Tv Shows
Remote Control. To view recorded TV, click (13) Playback Video in MoviePlayer (not Windows Media Player®). (Note: To use ENLTV-FM3 / ENLTV-3 MoviePlayer, please refer to Page-24.) To change record quality, click (5) Record Format. You will be able to select: Mpeg1, Mpeg2, VCD, SVCD, DVD or HIDVD. -
Page 22: Using Time-Shift Recording On Live Tv (Pause / Forward / Rewind Live Tv Broadcast)
Motion Capture Setting section (the default is disabled). Accordingly, you can watch the Time-Shift recording in ENLTV-FM3 / ENLTV-3 MoviePlayer (not the Windows Media Player®) after the Time-Shift recording is stopped. To enable Time-Shift recording, you need to select... -
Page 23: Using Time-Shift Recording To Skip Tv Commercials
4.5 — Taking Snapshots To take a snapshot, click (4) Snapshot or press [G] Snapshot on the Remote Control. To view snapshots in ENLTV-FM3 / ENLTV-3 ImageViewer, click (2) Open ImageViewer. (Note: To use the ImageViewer, please refer to Page-26.) -
Page 24: Watching And Recording From External Video Devices, Such As Camcorders And Vhs/Dvd Players
4.6 — Watching and Recording from External Video Devices, such as Camcorders and VHS/DVD Players Video Source Status on control panel will indicate which video source is in the window now. Please refer to the illustration above. There are 3 ways to change display from (regular video from the yellow video input port) or to (high-quality S-Video from the black video... -
Page 25: Chapter 5: Playback Recorded Videos With Movieplayer
Chapter 5: Playback Recorded Videos with MoviePlayer Open MoviePlayer ENLTV-FM3 / ENLTV-3 MoviePlayer Overview... - Page 26 Sample Play List Window To view Play List, click (18) Open / Hide Play List on the control panel. To manage Play List, click on the Play List window To play video, use the mouse to select the video you want to view in the Play List.
-
Page 27: Chapter 6: Viewing Snapshots With Imageviewer
Chapter 6: Viewing Snapshots with ImageViewer Open ImageViewer Sample ImageViewer Window To view images, double-click on a thumbnail. Double-click on the image to go back to thumbnail mode again. Toolbar functions are explained in the next page... - Page 28 ImageViewer Toolbar Refresh: refreshes the snapshot thumbnails in the current folder. DirBar: opens or hides the File Directory Panel window on the left. ImageBar: opens or hides the Preview window in the middle. sets the current image as wallpaper. Wallpaper: clicking on the triangle on the right, you can select wallpaper display options.
-
Page 29: Chapter 7: Listening To And Recording Fm Radio
Chapter 7: Listening to and Recording FM Radio (*This function is only available in ENLTV-FM3) Overview To open FM Radio, click (15) Video Source until appeared in the Video Status Window. To listen to and record audio from Radio, the procedures are... -
Page 30: Chapter 8: Frequently Asked Questions
Chapter 8: Frequently Asked Questions I can’t use ENLTV-FM3 / ENLTV-3 when I run the software and an error message popped up. Below are two common scenarios: Incorrect Sound Card Device Driver • Check “Device Manager” in Windows®. Please refer to Page-9. -
Page 31: Chapter 9: Technical Support
Recording function requires the proper video CODEC to encode a movie. To make sure video CODEC resource is not being occupied, we suggest reinstalling the ENLTV-FM3 or ENLTV-3 utility software. The CODEC link will also be reset after reinstallation Make sure that your computer meets the minimum system requirements.
