Chapter 2: Getting Started

2.1 Rear panel connectors

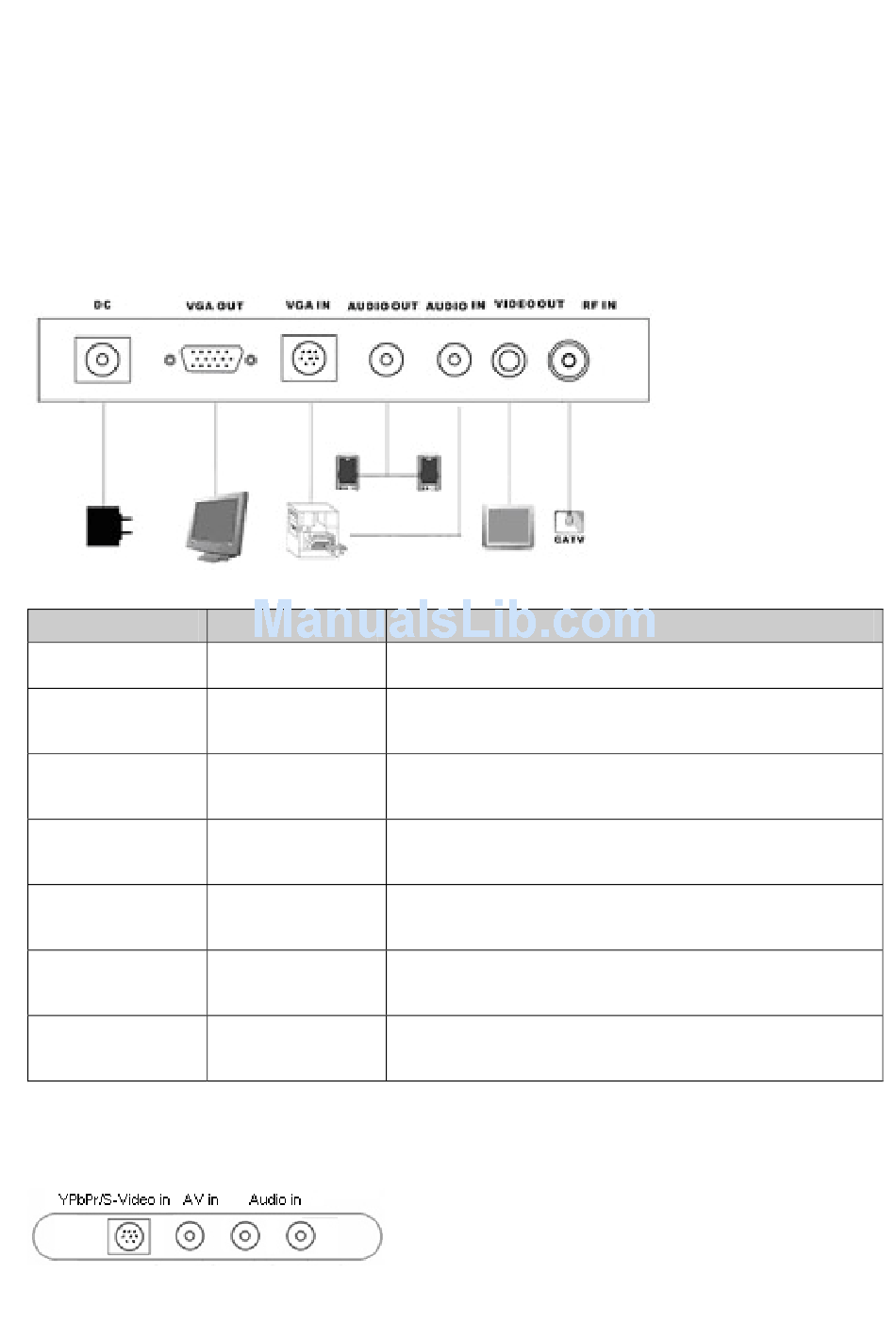

ENXTV-X2 cable connection is easy. The most typical cable connections are shown in the picture
diagram below. Make sure the power cable is not connected when hooking these cables in.
CONNECTOR
DC In
VGA Out
VGA In
Audio Out
Audio In
Video Out
RF
2.2 Right Side Panel Port Connectors
TYPE
5mm, INT+, EXT-
15 pin D-Sub
connector
8pin Mini DIN
connector
3.5mm stereo
connector
3.5mm stereo
connector
RCA Jack
TV antenna
connector
DESCRIPTION
AC adapter, power in (5V, 2 A)
ENXTV-X2 main video output. Connects to CRT/LCD
Monitor
VGA-In loop back cable。The other end of this cable
connects to the PC's VGA D-sub 15 pin connector.
Audio out connects to the speaker.
Audio In Connect to PC sound system (Line-in of sound
card).
ENXTV-X2 Video output. Can be used to connect to Video
input of display unit。
TV or CATV signal-in connector
