Summary of Contents for Encore ENUTV-DAQ
- Page 1 © 2010 Encore Electronics, Inc. All rights reserved. COVER © 2011 Encore Electronics, Inc. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders.
-
Page 2: Table Of Contents
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2011 Encore Electronics, Inc. All rights reserved. www.encore-usa.com... -
Page 3: Chapter 1: Introduction

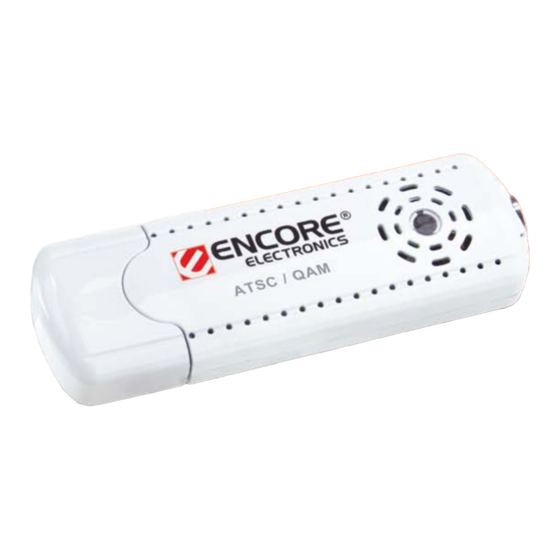

Chapter 1: Introduction 1.1 Package Contents The following items are included in the ENUTV-DAQ package. 1 PC HDTV Tuner 1 Installer CD 1 RF adapter 1 User Manual 1 Remote Control 1 USB extension cable ... -
Page 4: Chapter 2: Getting Started
Chapter 2: Getting Started 2.1 Connect ENUTV-DAQ To install the ENUTV-DAQ into your computer, follow the steps below: 1. Connect the TV antenna / cable to the connector. Notes: We highly recommend you use the outdoor antenna for better signal reception 2.2 Device Driver Installation... - Page 5 4. Make sure the “Complete” radio button is selected then click “Next” 5. Click “Install” button www.encore-usa.com...
- Page 6 6. Click “Next” button 7. Click “Finish” button www.encore-usa.com...
- Page 7 8. Click “Finish” button. 9. Click “Finish” button to restart. 10. Connect the Device to PC USB Hub. www.encore-usa.com...
- Page 8 11. To make sure the driver is properly installed and started, open the “Device Manager”. Please double-click the “Sound, video and game controller”. www.encore-usa.com...
-
Page 9: Install The Totalmedia™ Software
2.3 Install the TotalMedia™ software. 1. Click the “Setup Utility” button. 2. Click “Next” on TotalMedia setup welcome window to continue. 3. Please read the License Agreement and click “Yes” button. www.encore-usa.com... - Page 10 4. Click “Next” button to accept the default location or choose a different folder. Note: We recommend not to change the default location 5. Click “Next” button to accept the default program folder or choose a different folder. Note: We recommend not to change the default folder 6.
-
Page 11: Setting The Totalmedia™ Software
2.4 Setting the TotalMedia™ software. Use remote control or mouse to select TV function. Click “Next” button to continue. Select your region then click “Next” button again. www.encore-usa.com... - Page 12 Select TV service and click “Next” button. Click “Next” button to continue. Click “Start” button to scan channel automatically. Click “Next” button when scanning finish. www.encore-usa.com...
- Page 13 Click “Finish” button. Watch and enjoy your high quality digital www.encore-usa.com...
-
Page 14: Chapter 3: Launch The Totalmedia
Chapter 3: Launch the TotalMedia 3.1 Floating Toolbar The floating toolbar appears for a few seconds whenever you move the mouse: The "Home" button (it looks like a house) takes you to the program's startup screen. The arrow takes you to the previous screen. The toolbar at the bottom of the screen features standard audio/video playback controls (Play/Pause, Stop, Record,) plus Volume and Channel controls. -
Page 15: Tv Module
When watching MPEG-2 videos and recorded TV shows: Use these buttons to skip forward by roughly 27 seconds, or backwards by roughly 27 seconds. These buttons are useful for bypassing commercials or skipping back slightly if you accidentally skip ahead too far. 3.2 TV Module This section lets you view and edit the settings for TV recording. -
Page 16: Epg
Note: You should check the "Time Shift" option in TV Settings to display the time bar. EPG - Display the electronic programming guide. Channels - View the program channel list. Click a channel to learn more about it. ... -
Page 17: Channels
3.4 Channels This section lets you view the channel list and select a specific channel. The available channels are listed here. There is a preview window in the bottom left corner of the screen. To watch a channel, click on it, and it will appear in the preview window. You can click the button next to the preview window to play it in Full Screen mode. -
Page 18: Recorded Tv
3.5 Recorded TV This section displays your recorded TV shows. When you play back recorded TV, you can fast forward or rewind using either the controls on your remote control, keyboard, or on the floating toolbar. You can click the button next to the preview window to play it in Full Screen mode. -
Page 19: Burn To Disc
3.6 Burn To Disc Create a DVD or VCD (depending on your settings) containing the selected files. Burn one or more video clips to disc. Browse to the folder that contains the videos, and select the specific files you want. ... -
Page 20: Schedule
3.7 Schedule This section lets you program the application to record TV shows, then the application will monitor the schedule and record the scheduled programs automatically on the correct day/time. Add - Lets you enter in a new program for recording: ... -
Page 21: Teletext
The selected recorded program can be shown in the preview area. Click the Delete (trash can) icon to delete a file. Click the "Clear All" button to discard all the files. The "Frequency" option enables you to filter shows by how often they are recorded (once, daily, and weekly).If conflicting recording sessions are scheduled, you will be presented with a summary of the conflicts and asked to update the schedule. -
Page 22: Chapter 4: Using The Remote Control
Move your mouse to select different teletext channels. The selected titles will be shown on the red, green, yellow and blue area. Click the button with the corresponding color to watch Click the "Live TV" button to go back to the TV screen. ... -
Page 23: Remote Controller Functions
4.2 Remote controller functions Open/Close TV Software Back button Select / Enter button Mute ON / Mute OFF button Number Selections 0 to 9 Switch to the next channel Switch to the previous channel Volume High Volume Low Move Cursor Up button Move Cursor Down button Move Cursor Left button Move Cursor right button... -
Page 24: Chapter 5: Tips And Troubleshooting
Chapter 5: Tips and Troubleshooting Q1: I’ve installed the PC HDTV Tuner and can see it in Windows Device Manager. But I just can’t get it to work. What’s wrong? A1: Check that you’re connected directly to a USB 2.0 port on your computer - if not, that may be the problem. - Page 25 If it’s listed somewhere else and has a question mark or an exclamation mark next to it, first try removing your PC HDTV Tuner then plugging it into a different USB 2.0 port on your computer. If the device appears in the “Sound, video and game controllers” section, it’s been correctly recognized by Windows and should work.
- Page 26 * Local tech-support numbers are provided in selectively countries. Service may change without prior notice. Please visit www.encore-usa.com for more details. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. www.encore-usa.com All trademarks and brand names are the properties of their respective holders.
