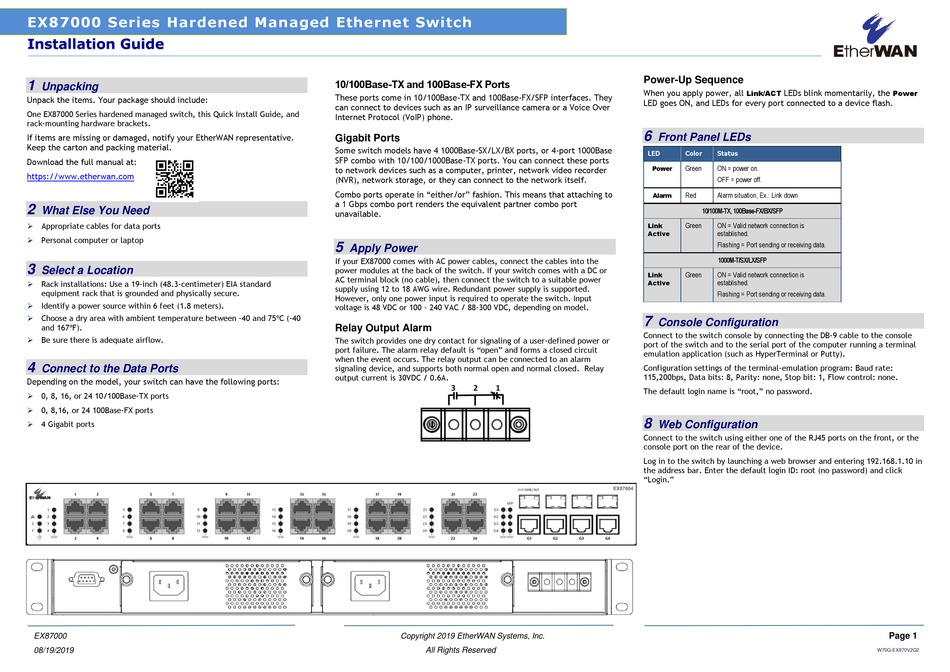

EtherWAN EX87000 Series Installation Manual

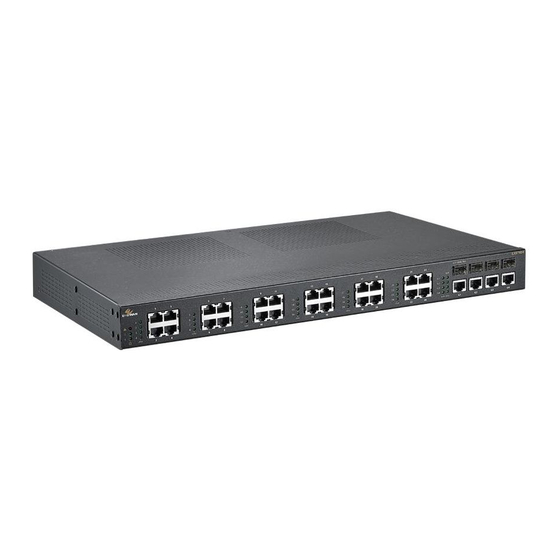

EX87000 Series Hardened Managed Ethernet Switch
Installation Guide
1
Unpacking
Unpack the items. Your package should include:
One EX87000 Series hardened managed switch, this Quick Install Guide, and
rack-mounting hardware brackets.
If items are missing or damaged, notify your EtherWAN representative.
Keep the carton and packing material.
Download the full manual at:
https://www.etherwan.com
2
What Else You Need
 Appropriate cables for data ports
 Personal computer or laptop
3
Select a Location
 Rack installations: Use a 19-inch (48.3-centimeter) EIA standard
equipment rack that is grounded and physically secure.
 Identify a power source within 6 feet (1.8 meters).
 Choose a dry area with ambient temperature between -40 and 75ºC (-40
and 167ºF).
 Be sure there is adequate airflow.
4
Connect to the Data Ports
Depending on the model, your switch can have the following ports:
 0, 8, 16, or 24 10/100Base-TX ports
 0, 8,16, or 24 100Base-FX ports


4 Gigabit ports

EX87000
08/19/2019

10/100Base-TX and 100Base-FX Ports

These ports come in 10/100Base-TX and 100Base-FX/SFP interfaces. They
can connect to devices such as an IP surveillance camera or a Voice Over
Internet Protocol (VoIP) phone.
Gigabit Ports
Some switch models have 4 1000Base-SX/LX/BX ports, or 4-port 1000Base
SFP combo with 10/100/1000Base-TX ports. You can connect these ports
to network devices such as a computer, printer, network video recorder
(NVR), network storage, or they can connect to the network itself.
Combo ports operate in "either/or" fashion. This means that attaching to
a 1 Gbps combo port renders the equivalent partner combo port
unavailable.
5
Apply Power
If your EX87000 comes with AC power cables, connect the cables into the
power modules at the back of the switch. If your switch comes with a DC or
Ac Terminal Block (no cable), then connect the switch to a suitable power
supply using 12 to 18 AWG wire. Redundant power supply is supported.
However, only one power input is required to operate the switch. Input
voltage is 48 VDC or 100 – 240 VAC / 88-300 VDC, depending on model.

Relay Output Alarm

The switch provides one dry contact for signaling of a user-defined power or
port failure. The alarm relay default is "open" and forms a closed circuit
when the event occurs. The relay output can be connected to an alarm
signaling device, and supports both normal open and normal closed. Relay
output current is 30VDC / 0.6A.
Copyright 2019 EtherWAN Systems, Inc.
All Rights Reserved

Power-Up Sequence

When you apply power, all Link/ACT LEDs blink momentarily, the
LED goes ON, and LEDs for every port connected to a device flash.
6
Front Panel LEDs
LED Color Status
Power Green ON = power on.
OFF = power off.
Alarm
Red Alarm situation, Ex.: Link down
10/100M-TX, 100Base-FX/BX/SFP
Link Green ON = Valid network connection is
Active established.
Flashing = Port sending or receiving data.
1000M-T/SX/LX/SFP
Link Green ON = Valid network connection is
Active established.
Flashing = Port sending or receiving data.
7
Console Configuration
Connect to the switch console by connecting the DB-9 cable to the console
port of the switch and to the serial port of the computer running a terminal
emulation application (such as HyperTerminal or Putty).
Configuration settings of the terminal-emulation program: Baud rate:
115,200bps, Data bits: 8, Parity: none, Stop bit: 1, Flow control: none.
The default login name is "root," no password.
8
Web Configuration
Connect to the switch using either one of the RJ45 ports on the front, or the
console port on the rear of the device.
Log in to the switch by launching a web browser and entering 192.168.1.10 in
the address bar. Enter the default login ID: root (no password) and click
"Login."
Power
Page 1
W70G-EX870V2Q2
