Owner's Manual
Model No.
16007602850
XT285
- Assembly
- Operation
- Adjustments
- Parts
- Warranty
CAUTION:
Read and
understand this
manual before
operating unit
Retain For Future Reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spirit Fitness XT285 and is the answer not in the manual?

Questions and answers

Related Manuals for Dyaco Canada Spirit Fitness XT285

Summary of Contents for Dyaco Canada Spirit Fitness XT285

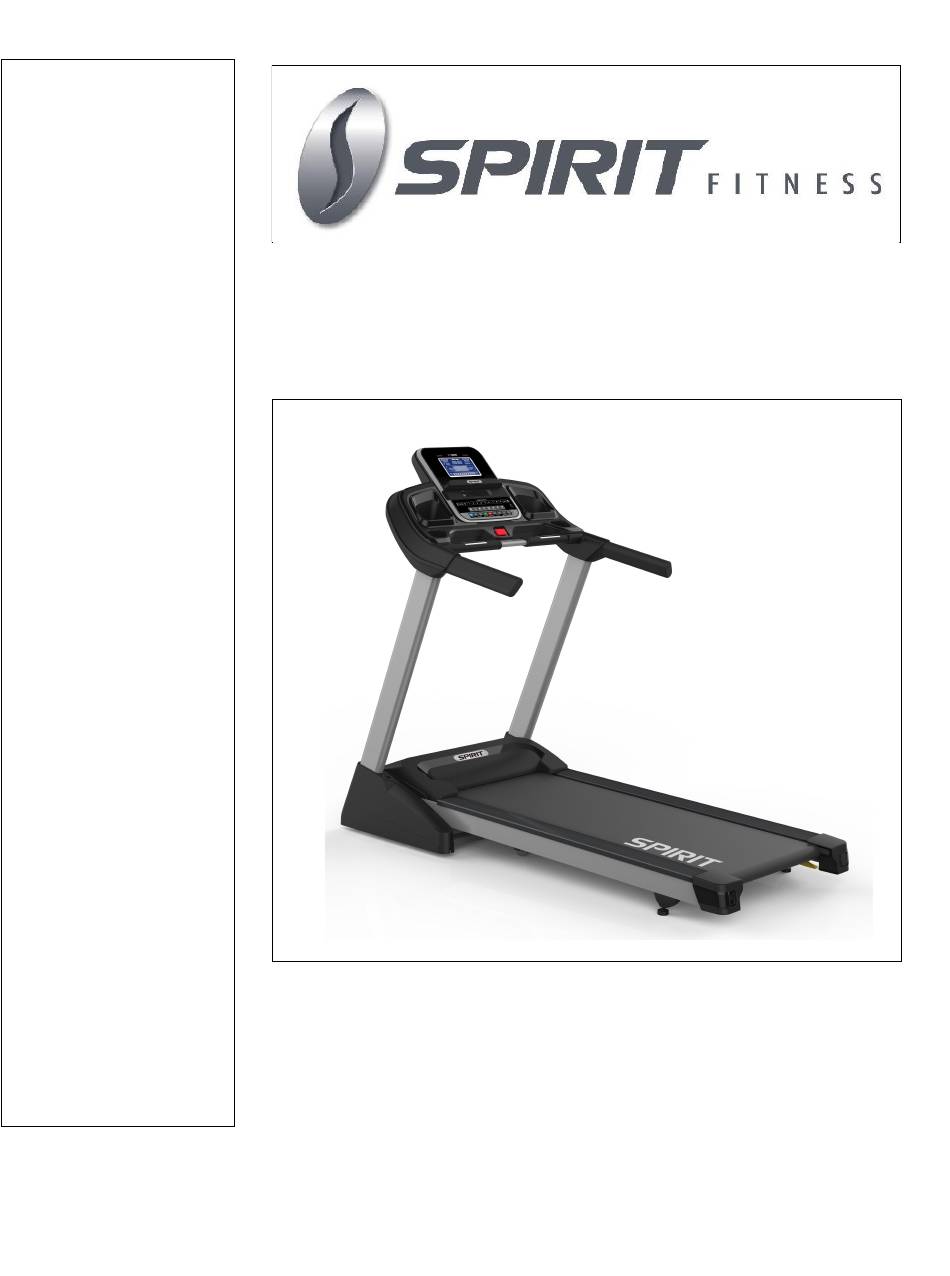

  • Page 1 Owner’s Manual Model No. 16007602850 XT285 - Assembly - Operation - Adjustments - Parts - Warranty CAUTION: Read and understand this manual before operating unit Retain For Future Reference...

  • Page 2: Table Of Contents

    Assembly Instructions…………………………………………………………..9 Folding Instructions……………………………………………………………14 Operation of Your New Treadmill…………………………………………….15 Using the Spirit Fit App………………………………………………………..19 Programmable Features……………………………………………………..20 Target Heart Rate………………………………………………………………23 Exploded View Diagram …..…………………………………………………..27 Parts List……………………………………………………………………….. 28 General Maintenance…………………………………………………………..32 Manufacturer’s Limited Warranty……………………………………………..37 Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 3: Product Registration

    CONGRATULATIONS ON YOUR NEW TREADMILL Thank you for your purchase of this quality treadmill from Dyaco Canada Inc. Your new treadmill was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. Through you dealer, Dyaco Canada Inc., will do all we can to make your ownership experience as pleasant as possible for many years to come.

  • Page 4: Important Safety Instructions

    It is recommended to have a minimum of 3 meters safe clearance on all sides of the treadmill while in use. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 5 Read all instructions before using any fitness equipment. We assume no responsibility from personal injury or property damage sustained by or through the use of this product. SAVE THESE INSTRUCTIONS Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 6: Important Electrical Instructions

    Pushing harder is not going to make the unit go faster or slower. If you feel the buttons are not functioning properly with normal pressure, contact your Spirit dealer. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 7 Be familiar with its function and limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled off the console. Use the Stop/Pause switch in normal operation. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 8 Button Head Socket Bolt (4 pcs) #93. 5/16" × 15m/m #132. M5 #142. Ø3.5 × 16m/m Button Head Socket Bolt (8 pcs) Speed Nut Clip (6 pcs) Sheet Metal Screw (6 pcs) #58. Lubricant Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 9: Assembly Instructions

    Then remove the treadmill from the carton and lay it on a level surface. ASSEMBLY TOOLS #97. M6 L Allen Wrench #96. Combination M5 Allen Wrench & Phillips Head Screwdriver #122. Phillips Head Screwdriver Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 10 Frame Base Covers (L, R), (42 & 43) and Console Mast Covers (L, R) (99 & 100), respectively, as shown further below. Connect Computer Cable (Middle) (38) with Computer Cable (Lower) (39). Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 11 Install Frame Base Covers (L) and (R), (42 & 43), on the Frame Base (2) and secure with 6 pcs of Ø5 × 16m/m_ Tapping Screws (88) by using Phillips Head Screwdriver (122). Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 12 Insert Console Assembly (40) into right and left Uprights (4 & 5) and secure with 4 pcs of 3/8"×1-3/4" Button Head Socket Bolts (90) with 4 pcs of Ø10 × 2.0T Split Washers (82) by using M6_L Allen Wrench (97). Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 13 Uprights (4 & 5). Then secure with 6 pcs of Ø3.5×16m/m Sheet Metal Screws (142) by using Phillips Head Screwdriver (122). NOTE: Please tighten all screws after all components have been assembled. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 14: Folding Instructions

    *At the rear roller area to relieve pressure on the locking system. Transportation Instruction The treadmill is equipped with four transport wheels that are engaged when the treadmill is folded. After folding simply roll the treadmill away. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 15: Operation Of Your New Treadmill

    Press the Quick Incline button, then 3, 5 = Incline Level 3.5 Press the Quick Speed button, then 8, 0 = 8.0 MPH or KPH Press the Quick Speed button, then 0, 8 = 0.8 MPH or KPH Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 16 (start up) screen. If the Stop button is held down for more than 3 seconds the console will reset Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 17 (about as much as your screen when it is turned off). 2. Remove the tether cord. 3. Turn off the main switch on the front of the treadmill, below the motor cover. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 18 Each preset program has a maximum Speed and Incline level that is displayed when a desired workout is chosen. The maximum Speed and Incline that the particular program will achieve will be displayed in the Message Center. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 19: Using The Spirit Fit App

    *Note: Your device will need to be running on a minimum operating system of iOS 7 or Android 4.4 for the Spirit Fit App to operate properly. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 20: Programmable Features

    Incline + / - keys to adjust, then press Enter. You are now done programming data and may press Start to begin your workout or Enter to go back one level to change data entered in the programming phase. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 21 Incline: The elevation in this program is moderate. There are several elevation spikes at different points of the workout. Segments 15 are maximum elevation for this program. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 22 This program will spike similar to the speed profile, but in different segments (columns); this means that all of your lower extremity muscles will be equally challenged throughout this program. The incline alternates between 25 & 65 % of maximum elevation Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 23: Target Heart Rate

    If your goal is cardiovascular fitness or if it is weight loss, it can be achieved by training at 80% or 60%, respectively, of your MHR on a schedule approved by your physician. Consult your physician before participating in any exercise program. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 24 RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 25 8. Another Individual wearing a transmitter within 3’ of your machine’s console. If you continue to experience problems contact your dealer. WARNING! - DO NOT USE THE HEART RATE PROGRAM IF YOUR HEART RATE IS NOT REGISTERING PROPERLY ON THE TREADMILL’S DISPLAY! Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 26 8. During the HR 1 or HR 2 programs you will be able to scroll through the data in the Message Center by pressing the Enter key. 9. When the program ends you may press Start to begin the same program again or press Stop to exit the program. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 27: Exploded View Diagram

    EXPLODED VIEW DIAGRAM Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 28: Parts List

    Square Safety Key 6028534 Power Cord 6028535 200m/m_Connecting Wire (White) 6028536 200m/m_Connecting Wire (Black) 6028537 800m/m_Computer Cable (Upper) 6028538 1300m/m_Computer Cable (Middle) 6028539 1200m/m_Computer Cable(Lower) 6028540 Console Assembly 40~1 6028540-1 Console Top Cover Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 29 Ø24 × Ø10 × 3T_Nylon Washer (A) 6028560 Ø50 × Ø13 × 3T_Nylon Washer (B) 6028561 1/2" × 1-1/4"_Carriage Bolt 6028562 1/2" × 1"_Hex Head Bolt 6028563 3/8" × UNC16 × 4"_Hex Head Bolt Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 30 ChenChin Torsion-Spring 60285105 Steel Cable Tension Spring 60285106 Steel Cable 60285107 Release Lever 60285108 M3 × 10m/m_Phillips Head Screw 60285109 M5 × 20m/m_Phillips Head Screw 60285110 5/16" × 2"_Hex Head Bolt Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 31 Wire Clamp 60285137 1000m/m_Ground Wire 60285138 Handpulse Top End Cap 60285139 Handpulse Bottom End Cap 60285140 Ø8 × 1.5T_Split Washer 60285141 M8 × 12m/m_Hex Head Bolt 60285142 Ø3.5 × 16L_Sheet Metal Screw Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 32: General Maintenance

    - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 33 Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION: DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE WARRANTY. Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 34 • Press the Speed + button (or Speed - button to go backwards) until “Functions” appears; press Enter • Press the Speed + button until “Maintenance” message appears; press Enter • Press Stop to exit Engineering mode and resume use of your treadmill Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 35 “crashing” the computer. Refer to Grounding walking/running Instructions. House circuit breaker trips, but not Need to replace the house breaker with a “High In-rush the treadmill circuit breaker current” type breaker (see page 6 for details) Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...
  • Page 36 When the child lock is enabled, the console will not allow the keypad to operate unless you press and hold the Start and Enter buttons for 3 seconds to unlock the console.) 5. Exit Customer Service 1-888-707-1880 Dyaco Canada Inc. 2016 Email: customerservice@dyaco.ca...

  • Page 37: Manufacturer's Limited Warranty

    All of the parts for the Spirit Treadmill, shown in figure can be ordered from: Dyaco Canada Inc., 5955 Don Murie Street, Niagara Falls, Ontario L2G 0A9. When ordering parts, the parts will be sent and billed at the current prices.
