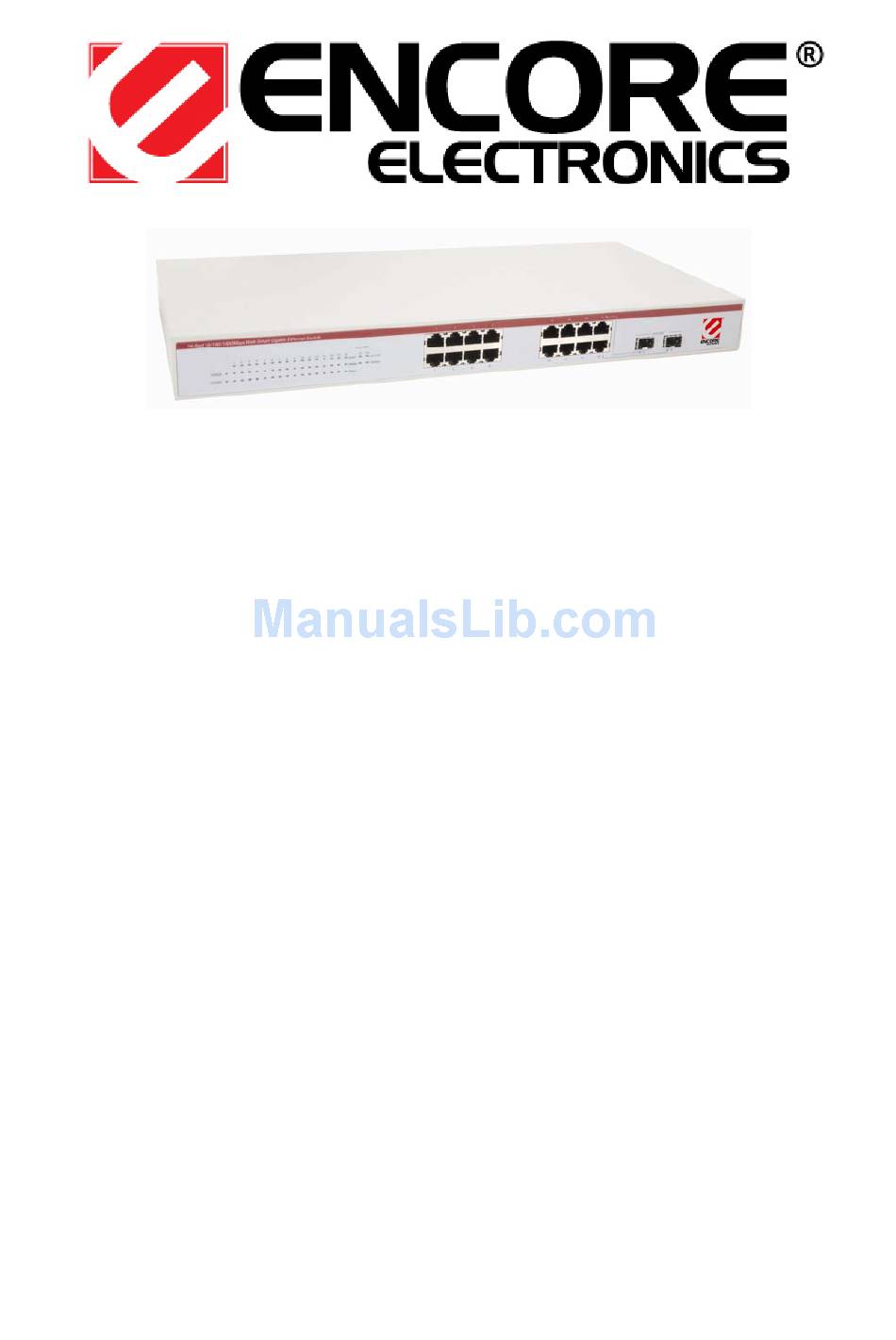

Encore ENMGS-16+2 Specifications

16-port 10/100/1000mbps web-smart gigabit ethernet switch

Hide thumbs Also See for ENMGS-16+2:

KEY FEATURES

• 16 x 10/100/1000Mbps Auto-negotiation Gigabit Ethernet UTP ports

• 2 x 1000Mbps mini-GBIC (Auto-Sense) for optional mini-GBIC transceiver to

extend distance, shared with 2 1000BASE-T ports

• Support full- duplex and half- duplex operation with IEEE802.3x flow control

• Supports 802.1Q VLAN

• Supports 802.1p Priority Queues

• Supports static Port Trunk(Support Maximum 6 groups per device and 8 ports per

group)

• Supports Port Mirroring

• Supports Broadcast Storm Control

• Supports DHCP Client

• Supports jumbo frame (Maximum Length is 10240 bytes)

• Supports Port setting function allow user setting each port, speed, duplex mode and

device flow control, configure through Web browser

• Integrated address Look-Up Engine, supports 8K absolute MAC addresses

• Easy configuration of the device from a Web browser anywhere on the network

• Supports 512KB RAM for data buffering

• Back pressure flow control for half-duplex

• Extensive front-panel diagnostic LEDs

• Store-and-Forward switching method

• Standard 19＂Rack-mount size

ENMGS-16+2

Table of Contents

Do you have a question about the ENMGS-16+2 and is the answer not in the manual?

Page 1 • Easy configuration of the device from a Web browser anywhere on the network • Supports 512KB RAM for data buffering • Back pressure flow control for half-duplex • Extensive front-panel diagnostic LEDs • Store-and-Forward switching method • Standard 19＂Rack-mount size ENMGS-16+2...
Page 2 SPECIFICATIONS Standard: IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX (GBIC) IEEE 802.3x Full Duplex Flow Control Network Media: 10BASE-T Ethernet: 2-pair UTP Cat. 3,4,5, up to 10Mbps 100BASE-TX Fast Ethernet: 2-pair UTP Cat. 5, up to 100Mbps 1000BASE-T Gigabit Ethernet: 4-pair UTP Cat.
