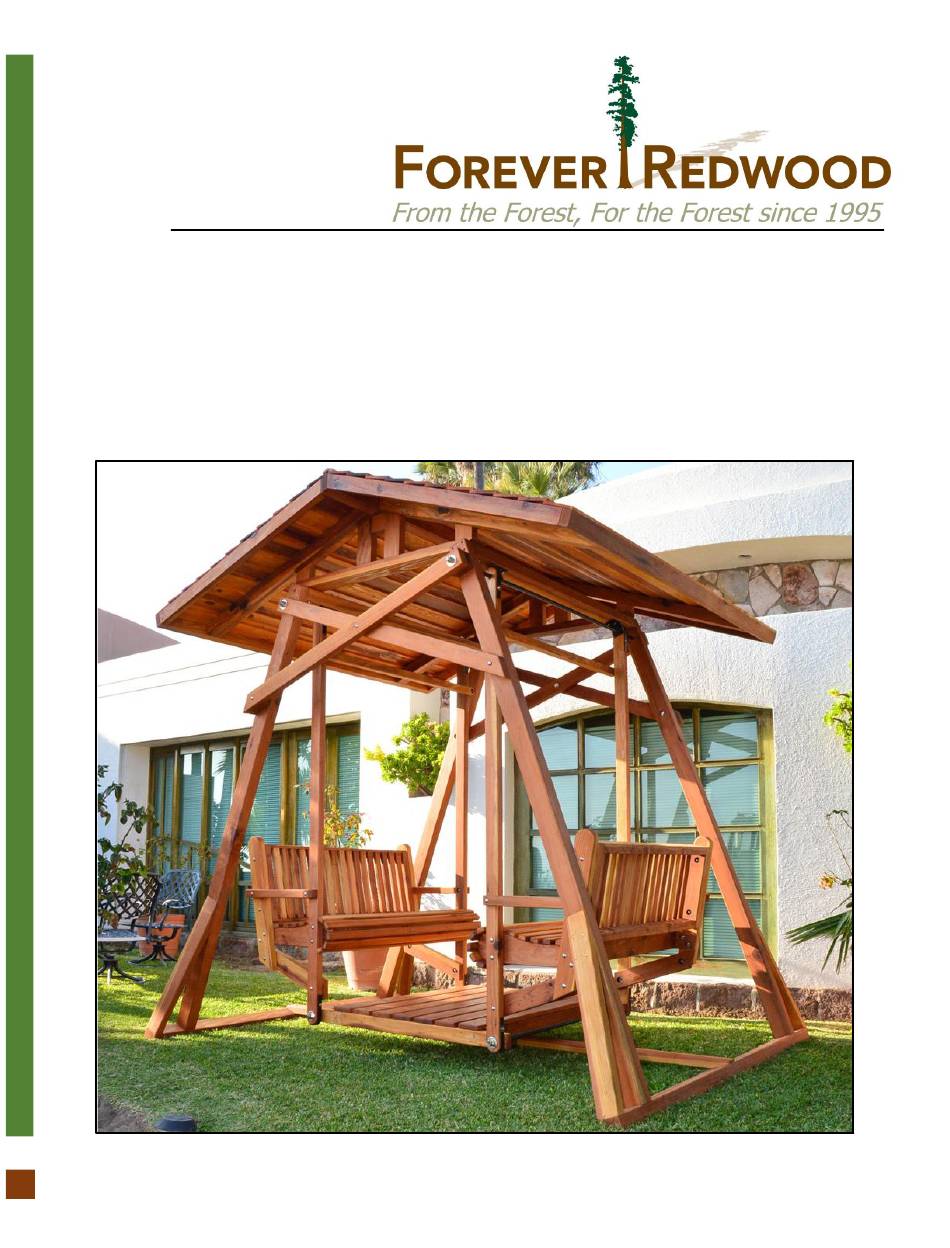

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE DUSTIN´S FACE TO FACE GLIDERS (WITH XW ROOF)
- Page 2 P| 1 DUSTIN´S FACE TO FACE GLIDERS (WITH XW ROOF) www.ForeverRedwood.com...
- Page 3 P| 2 DUSTIN´S FACE TO FACE GLIDERS (WITH XW ROOF) www.ForeverRedwood.com...
- Page 4 P| 3 DUSTIN´S FACE TO FACE GLIDERS (WITH XW ROOF) www.ForeverRedwood.com...
- Page 5 P| 4 DUSTIN´S FACE TO FACE GLIDERS (WITH XW ROOF) www.ForeverRedwood.com...
- Page 6 Step 1: Attach the braces in the legs supports (1) together with 5/16´´ x 4 ½´´ bolts (A) & 5/16´´ x 6´´ bolts (B) as shown in the image. After attach the braces in the legs supports with 5/16´´ x 3 ½ ´´ Bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 7 Step 3: Use 5/16´´ x 4 ½´´ bolts (A) to attach the straps supports (3) to the straps in the legs supports (1). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´...
- Page 8 Step 5: Later the Step 4 put the removable floor (5) over the floor frame. Each part has a series of numbers that indicate where to attach the part with the corresponding number. Step 6: Use 5/16´´ x 3 ½´´ bolts (C) to attach the long bench supports (6) to the bench seat (7). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 9 Step 7: Use 5/16´´ x 3 ½´´ bolts (C) to attach the bench seat (6) to the straps in the legs supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´...
- Page 10 Step 9: Attach the bench backrests (9) to the bench seats with 5/16´´ x 3 ½´´ bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ X 3 ½´´ Bolts Step 10: Use 5/16´´...
- Page 11 Step 11: Use 5/16´´ x 4 ½´´ bolts (A) to attach the triangles (11) to the legs supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ X 4 ½´´ Bolts Step 12: Attach the roof panels (12) to the triangles with 5/16´´...
- Page 12 Step 13: Attach the slat (13) to the roof panels with 2 ½´´ deck screws (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 2 ½´´ Deck Screws Step 14: Finally, use 5/16´´ x 5 ½´´ bolts (G) & 5/16´´ x 6 ½´´ bolts (H) to attach the arms (14) to the legs supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 13 This completes the Glider assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 12 DUSTIN´S FACE TO FACE GLIDERS (WITH XW ROOF) www.ForeverRedwood.com...
