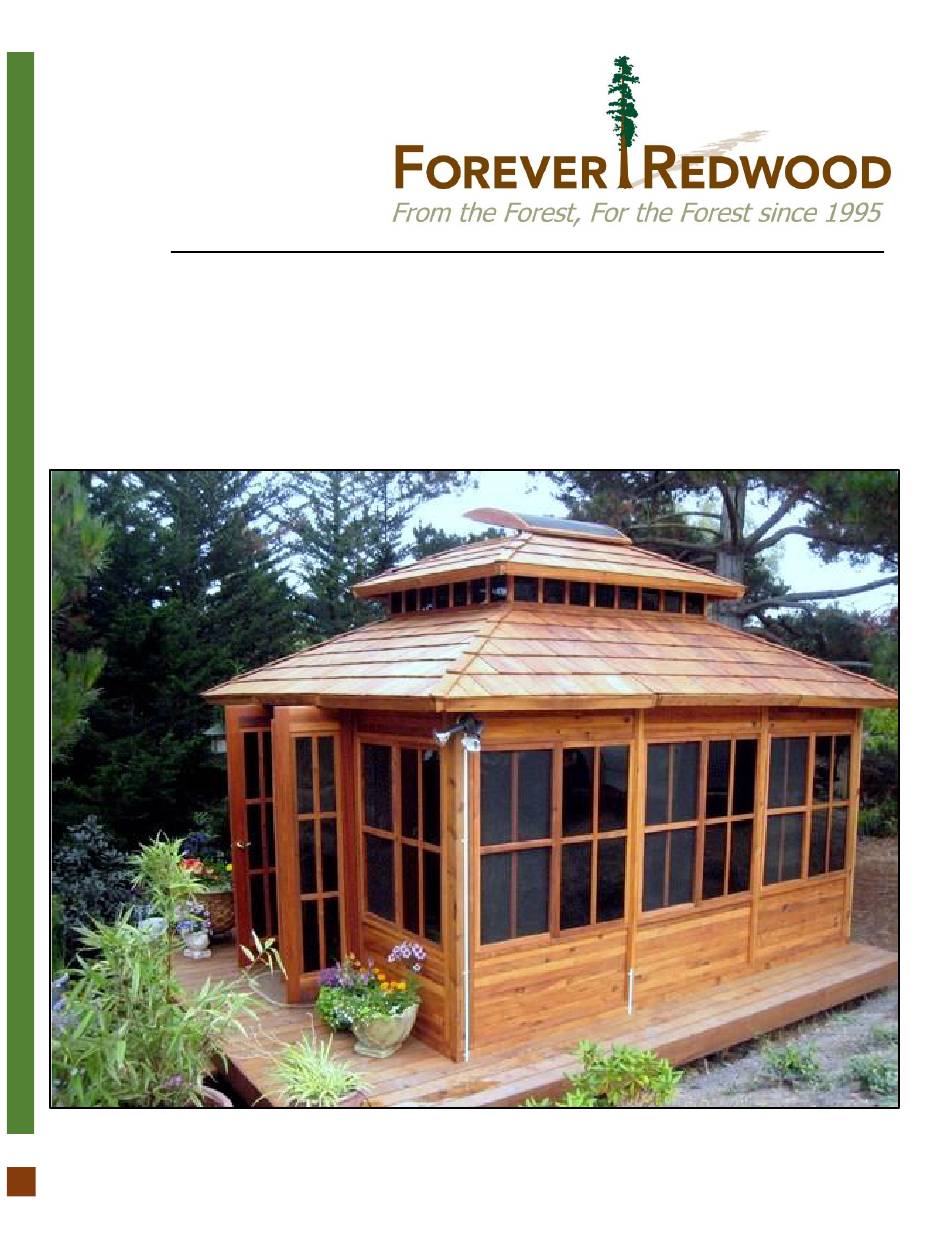

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE DREAM GAZEBOS...
- Page 2 P| 1 Dream Gazebos www.ForeverRedwood.com...
- Page 3 P| 2 Dream Gazebos www.ForeverRedwood.com...
- Page 4 P| 3 Dream Gazebos www.ForeverRedwood.com...
- Page 5 P| 4 Dream Gazebos www.ForeverRedwood.com...
- Page 6 P| 5 Dream Gazebos www.ForeverRedwood.com...
- Page 7 P| 6 Dream Gazebos www.ForeverRedwood.com...
- Page 8 P| 7 Dream Gazebos www.ForeverRedwood.com...
- Page 9 P| 8 Dream Gazebos www.ForeverRedwood.com...
- Page 10 Step 1: Install the anchor bases (37,38) to the ground with ½’ x 3 ½’’ Anchor Bolts (A). Please see the “How to anchor your pergola document” for all details. ½´´ x 3 ½´´ Anchor Bolts ½´´ x 3 ½´´ Anchor Bolts P| 9 Dream Gazebos www.ForeverRedwood.com...
- Page 11 Step 3: Attach the short floor supports (4) to the frontal floor supports with 3’’ deck screws (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3’’ Deck Screws P| 10 Dream Gazebos www.ForeverRedwood.com...
- Page 12 Step 5: Attach the floor frame spacers (7) to the floor frame with 3’’ deck screws (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3’’ Deck Screws P| 11 Dream Gazebos www.ForeverRedwood.com...
- Page 13 Step 7: Attach the floor fascia boards (9) to the floor frame with 2 ½’’ deck screws (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 12 Dream Gazebos www.ForeverRedwood.com...
- Page 14 Step 9: Attach the lateral wall panels (11) to the post with 3/8’’ x 4’’ lag bolts (E). Then, attach the wall panels together with 3/8’’ x 3’’ lag bolts (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8’’ x 4’’ Bolts 3/8’’ x 3’’ Bolts P| 13 Dream Gazebos www.ForeverRedwood.com...
- Page 15 Step 11: Use 3’’ deck screws (C) to attach the door frame (13) to the wall panels. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3’’ Deck Screws P| 14 Dream Gazebos www.ForeverRedwood.com...
- Page 16 Step 13: Use 3’’ deck screws (C) to attach the removable wall panels A&B (16,17) to the wall panels. Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 15 Dream Gazebos www.ForeverRedwood.com...
- Page 17 5/16’’ x 3’’ Lag Bolts 5/16’’ x 3’’ Lag Bolts Step 15: Remove the lowers tables from the corner roof panels (20,21,22) if is necessary (8,9), as is shown below. P| 16 Dream Gazebos www.ForeverRedwood.com...
- Page 18 (G) to attach the roof panels (20,21,22) to the roof supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16’’ x 4’’ Bolts 3/8’’ x 8’’ Lag Bolts P| 17 Dream Gazebos www.ForeverRedwood.com...
- Page 19 5/16’’ x 3’’ Bolts Step 19: To attach the rest of roof panels, repeat the steps 17 and 18. Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 18 Dream Gazebos www.ForeverRedwood.com...
- Page 20 Step 21: Use 2´´ deck screws (L) to attach the roof windows (23,24) to the roof frame. The roof windows will be attached together with 2’’ deck screws. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 2’’ Deck Screws P| 19 Dream Gazebos www.ForeverRedwood.com...
- Page 21 Step 23: First, measure the roof panels. After that, cut the #30 Felt Roof Deck Protection to those measures. Use staples to attach the #30 Felt Roof Deck Protection to the roof panels. #30 Felt Roof Deck Protection P| 20 Dream Gazebos www.ForeverRedwood.com...
- Page 22 Step 25: Use 6’’ deck screws (N) to attach the second roof frame (26,27) to the second roof panels. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 6’’ Deck Screws P| 21 Dream Gazebos www.ForeverRedwood.com...
- Page 23 Step 26: To attach the rest of second roof panels, repeat the steps 24 and 25. Each part has a series of numbers that indicate where to attach the part with the corresponding number. Step 27: Put the exterior clear silicone on the perimeter of the second roof frame and on the second roof panels join. P| 22 Dream Gazebos www.ForeverRedwood.com...
- Page 24 Step 29: Use 2´´ deck screws (L) to attach the skylight (30) to the second roof frame. Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 23 Dream Gazebos www.ForeverRedwood.com...
- Page 25 3/8´´ x 4´´ lag bolts (J) to attach to roof boards. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3’’ Deck Screws 3/8’’ x 4’’ Lag Bolts P| 24 Dream Gazebos www.ForeverRedwood.com...
- Page 26 1 5/8’’ Deck Screws Step 33: Finally, with the deck screws included attach the doors (36) to the door frame. Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 25 Dream Gazebos www.ForeverRedwood.com...
- Page 27 This completes the Gazebo assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 26 Dream Gazebos www.ForeverRedwood.com...
