Summary of Contents for FourStarGroup 11222812

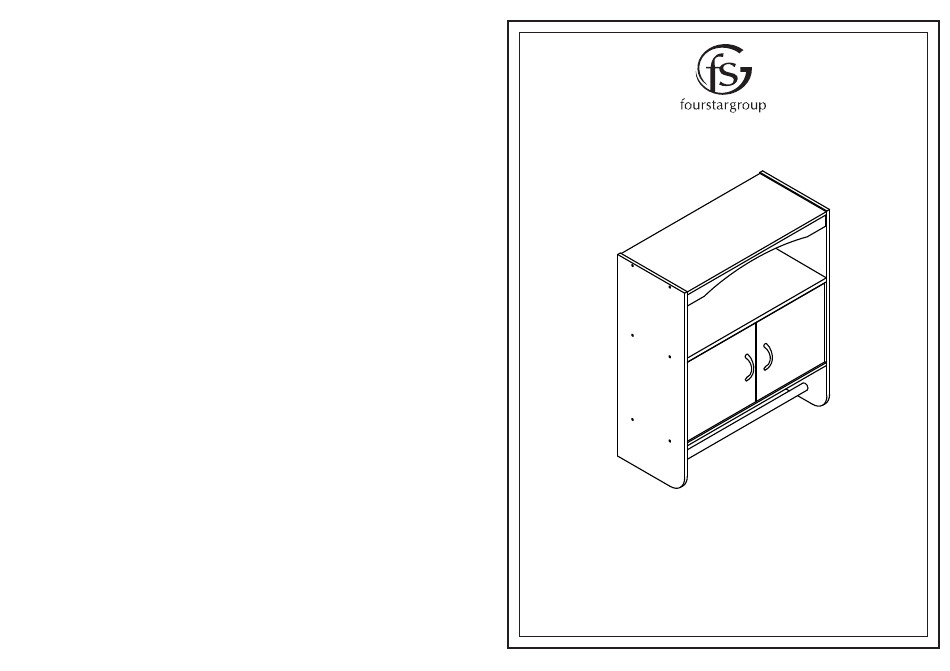

- Page 1 MODEL: 11222812 / MODELO: 11222812 BATHROOM WALL CABINET ARMARIO DE PARED DE BAÑO...
- Page 2 PARTS LIST AND HARDWARE STEP 9 LISTA DE PARTES Y ACCESORIOS DRILL 2 HOLES USING 1/4 IN. SIZE DRILL BIT IN THE WALL, AND HAMMER THE WALL PLUG (9) INTO THE HOLES, THEN LOCKING TAPPING SCREWS (8) AS SHOWN. HARDWARE LIST PASO 9 LISTA DE ACCESORIOS PERFORE 2 ORIFICIOS USANDO UNA BROCA DE ¼...
- Page 3 ASSEMBLY INSTRUCTIONS STEP 7 ATTACH THE HANGING SUPPORT (10) TO THE ASSEMBLED PART INSTRUCCIONES DE MONTAJE FROM STEP 6 USING THE POWER PIN (11) ON THE BACK AS CAUTION: SHOWN. 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. PASO 7 2.
- Page 4 STEP 3 STEP 5 PUSH MAGNET (2A) TO CENTER PANEL (D) AS SHOWN. ATTACH THE ASSEMBLED PART FROM STEP 2 & ASSEMBLED PART FROM STEP 3 & BOTTOM PANEL (E) & STEEL PIPE(12) TO PASO 3 LEFT SIDE PANEL (B) AND RIGHT SIDE PANEL (C) BY USING EMPUJE EL IMAN (2A) AL PANEL CENTRAL (D) COMO SE SCREW (1) AS SHOWN.
