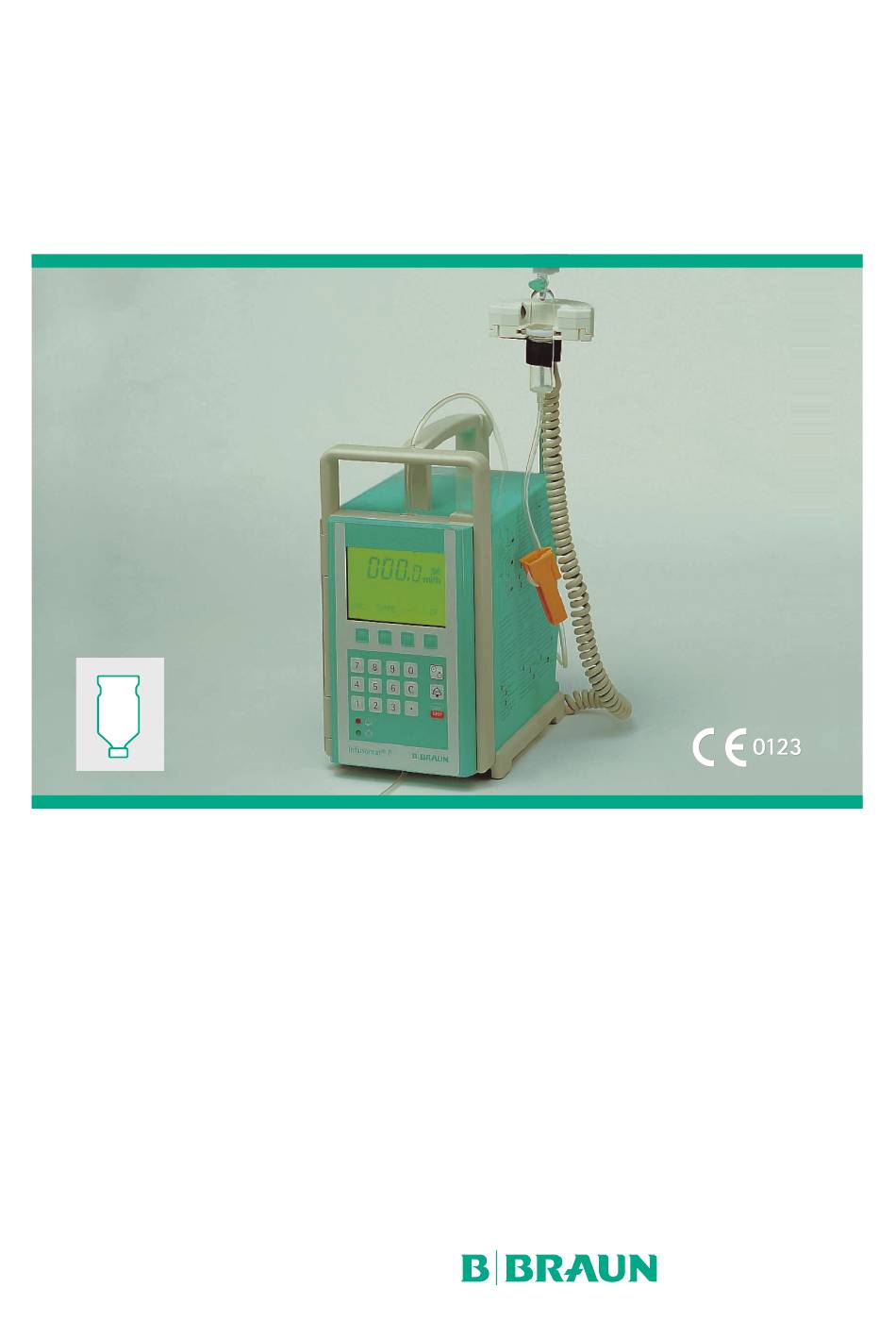

- Page 1 Infusomat ® Instructions for Use Software IFPE / IFPe...
- Page 2 Patient Safety Attention: Consult accompanying documents! Read Instructions for Use prior to use. Application only under regularly supervision by specially trained staff. Operation (e.g. IEC/EN 60950 for data-processing equipment). ➤ Ensure the unit is properly positioned and The user/operator is responsible for the system secured.
-
Page 3: Table Of Contents
Infusomat ® Contents Infusomat® P / Overview Page 4 Operation Page 6 Additional Settings Page 7 Special Functions Page 8 Alarm Conditions Page 13 Start-up Graphs and Trumpet Curves Page 15 Technical Data Page 16 Warranty / TSC* / Service / Cleaning Page 18 Ordering Page 19... -
Page 4: Infusomat® P / Overview

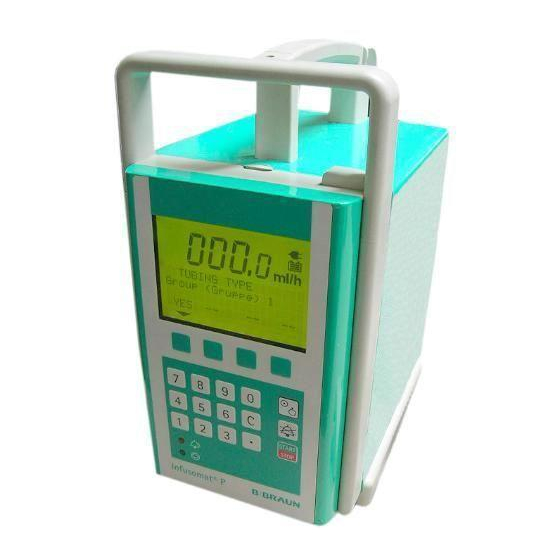

Overview Handle For easy transport. Display All important information in plain text. Green background illumination only if connected to mains or a key is pushed at battery operation. Keypad for Input Correct Input/CLEAR Display reset to 000.0 Red LED indicates alarm condition Additionally "AAA.A”... - Page 5 Guide for Short Infusion Pole Multi-Function- Connector (MFC) Mains/Power Connection Connection for staff (protect against ingress of moisture). In case of call, ambulances mains/power failure, the pump switches to (12 V DC) and inter- battery operation. Battery operation time: face for fm anaes- >...
-
Page 6: Operation
Operation Infusion 1. Ensure reliable installation Never position infusion bottle below pump level. ➤ Connect staff call. ➤ Insert spike vertically into infusion bottle. Fill lower part of drop chamber to max. 2/3. ➤ free flow clamp Open roller clamp. 2. -
Page 7: Additional Settings
Additional Settings To Change the Delivery Rate volume has to be set. ➤ Press START/STOP. Green operating indicator goes out. ➤ Press C. Target Time (Time Pre-selection) Display reset to 000.0 ➤ Press key below TIME. ➤ Enter new delivery rate. (No setting possible, Enter target time via keypad (50 min = 50;... -
Page 8: Special Functions
Additional Settings KOR-Mode (KVO) Status request After expiring of the pre-selected time or infusi- Only when infusion is running. on of the pre-selected volume automatic reduc- ➤ Press 1 x resp. 2 x key below INFO for actual tion to keep-open rate (KOR). values. - Page 9 Special Functions Select Special Mode SF Interval bolus Depending on the version, several functions may Automatic bolus in set time interval. In case of be deactivated. Contact service. manual bolus administration the interval bolus is skipped. ➤ To set special functions press key below SF ➤...
- Page 10 Special Functions ➤ Drug Display Exit from selection: Press key below END. 9 selectable drug names can be stored (input via service program only). Check Battery Capacity Remaining battery life time is displayed, ➤ Select with key below (+). Drug is displayed, e.g.
- Page 11 Dosage Calculation (Overview) values (rate or dosage) are displayed. The dosage calculation automatically calculates ➤ First check rate displayed for plausibility, the delivery rate in ml/h. then confirm RATE. Value is displayed. Setting parameters: ➤ Start infusion. 1. Concentration Note: Dosage value with unit is displayed (down - per ml or on the right).
- Page 12 Special Functions ➤ Check entered or calculated rate for plausi- Secondary infusion bility and confirm with key below RATE. Rate is e.g. 100 ml Primary Infusion bag volume with displayed. e.g. 1000 ml delivery rate bag volume with ➤ 150 ml/h Start infusion.
-
Page 13: Alarm Conditions
Alarms Operating alarms - audible alarm every 4 sec., - operating indicator off, - staff call. Remedy failure and restart infusion. ➤ Switch off device. Drop Alarm / Pressure Alarm ➤ Connect to mains/power or 12 V DC power Infusion bottle empty? source. - Page 14 Interface Operation Connection to interface input via MFC-plug. ➤ Plug in mains/power lead at rear (screw in Interface descriptions available from B. Braun. 12 V DC lead in ambulance car). ➤ In case of mains/power failure or if 12 V DC ➤...
-
Page 15: Start-Up Graphs And Trumpet Curves
Start-up Graphs and Trumpet Curves Start-up Graphs Trumpet Curves 2 (ml/h) flow deviation Delivery rate = 1 ml/h Delivery rate = 1 ml/h Epmax Epmin t (min) 120 p∆t (min) 31 50 (ml/h) flow 10 deviation Delivery rate = 25 ml/h Delivery rate = 25 ml/h 37,5 Epmax... -
Page 16: Technical Data
Technical Data Type of unit Volumetric infusion pump Classification (acc. to IEC/EN 60601-1) defibrillator-proof, CF equipment Protection Class I; IP 22 (Moisture protection: drip protected) Class (acc. to Directive 93/42 EEC) II b Rated voltage / current 230 V AC~ (0.06 A), 50/60 Hz Mains fuse T 0.16 A or 200 V/230 V/240 V AC~ (0.06 A), 50/60 Hz... - Page 17 Air detector Technical sensitivity Air bubbles > 0.01 ml Alarm triggering: With air bubble size of typ. 0.3 ml (limit value 0.4 ml) or 1.5 ml/h (cumulative value of 1 h as of air bubble volume 0.01 ml) Can be set from 0.01 to 0.3 ml via service program only Can be set from 0.5 to 3.5 ml/h via service program only Accuracy of set delivery rate typ.
-
Page 18: Warranty / Tsc* ) / Service / Cleaning
Warranty provided concerning waste disposal and hygiene for batteries and disposables. B. Braun provides 24 months warranty, as from the date of delivery, for every Infusomat® P. This covers repair or replacement of parts damaged as a result of design/manufacturing errors or material defects. -
Page 19: Ordering
Ordering Art.-Nr. Infusomat® P 230 V 871 2379 Infusomat® P 200 - 240 V 871 2212 Infusomat® P 100 – 120 V 871 2387 Recommended accessories for Infusomat® P Connecting lead for potential equilization 870 1628 MFC-Connecting lead for staff call 871 1682 MFC-Connecting lead for ambulance car (12 V) 871 1674... - Page 20 HOSPITAL CARE B. Braun Melsungen AG P.O.Box 11 20 D-34209 Melsungen Tel. +49 (0) 56 61 – 71-0 Fax + 49 (0) 56 61 – 71-20 44 Material-No. 3891 1620, Drawing No. M665010010F04 11/01 • Printed on pulp bleached 100 % chlorine-free...
