Ecomiser SR-04 Manual

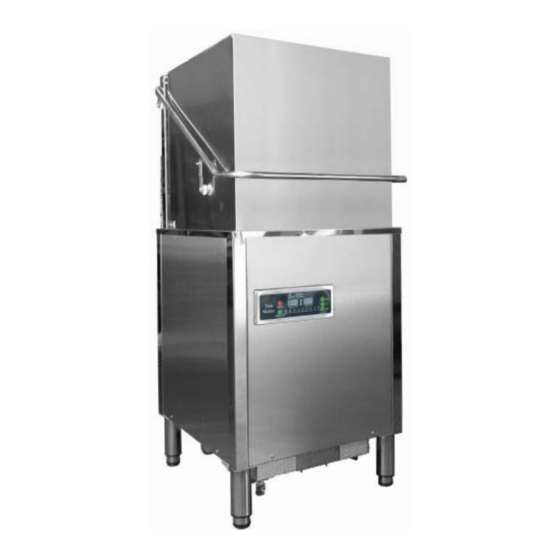

Door type dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DOOR TYPE DISHWASHER
Purchase Date _______________
Serial No. ___________________
Ecomiser SR-04 / SR-04T
Safety Instruction ---------- 4-5
Machine Operation ------- 14-19
Care & Cleaning ----------- 20
Common Dishwashing
Problems -------------------- 21
Trouble Shooting ---------- 22
Customer Service --------- 23
Wiring Diagram ------------ 24-25
Ecomiser SR-04 / SR-04T Manual 1/25 Page Rev.06

Advertisement

Table of Contents
loading

Related Manuals for Ecomiser SR-04

Summary of Contents for Ecomiser SR-04

  • Page 1: Table Of Contents

    Machine Operation ------- 14-19 Care & Cleaning ----------- 20 Common Dishwashing Problems -------------------- 21 Trouble Shooting ---------- 22 Customer Service --------- 23 Wiring Diagram ------------ 24-25 Purchase Date _______________ Serial No. ___________________ Ecomiser SR-04 / SR-04T Manual 1/25 Page Rev.06...
  • Page 2 Ecomiser SR-04 / SR-04T Manual 2/25 Page Rev.06...
  • Page 3 Ecomiser SR-04 / SR-04T Manual 3/25 Page Rev.06...

  • Page 4: Safety Instruction

    Dishwasher. - The dishwasher must be electrically grounded. Read the Installation Instructions for details. - The SR-04 dishwasher is designed to operate on 208-230V, 60 Hz 1 P and the SR-04T on 208-230V, 60 Hz 3 P. - Do not operate dishwasher, unless all enclosure panels are in their proper place.
  • Page 5 - Don’t close the door before confirming the safety of other people or objects. - Don’t open the door while the machine is operating, because it can cause serious scalds. - Don’t wash dishware or containers stained with industrial fluid. Ecomiser SR-04 / SR-04T Manual 5/25 Page Rev.06...

  • Page 6: Dishwasher Features

    - Equipped with easily removable, large capacity, one-piece strainer that minimizes frequent removal and cleaning. - A low-noise and large output 1 Hp wash pump is installed for the Ecomiser models SR-04 / SR-04T for reliability and effective operation. - The door is guided with stainless steel bearings and has a S. S. spring counterbalanced handle.
  • Page 7 Weight Shipping(lbs) 258 (117Kg) 286 (130Kg) All specifications are subject to change without notice based on Ecomiser’s dedicated product improvement program. ACCESSORIES INCLUDED □ Combination rack (1 flat, 2 pin racks) □ 15A (1/2”) water inlet hose / 5feet (1.5 m) □...

  • Page 8: Installation Instructions

    Connect supply cable with a UL-listed strain relief bushing (if nonmetallic cable is to be used). A 208- 230 volt, 60 Hz, 1 phase for SR-04 and 3 phase for SR-04T circuit is required for this machine. Despite the fact that the rating plate shows 220 volts, the unit is designed function properly on 208 volts to 230 volts.
  • Page 9 59℉/15℃. Adjust water supply time to 1 gal per cycle, using the water flow control valve inside the machine. Adjust so the fill indicating light stays on for 30 seconds. Figure 1-2 Fresh water connection Ecomiser SR-04 / SR-04T Manual 9/25 Page Rev.06...
  • Page 10 3. DRAIN CONNECTIONS - The Ecomiser SR-04 / SR-04T models contain a 1 1/2” (38mm OD) drain hose for the end user’s convenience. - The Ecomiser SR-04 / SR-04T models are factory built with a drain pump. Recommended rough in height is maximum 18”...
  • Page 11 4. DISPENSING SYSTEM CONNECTION The Ecomiser SR-04 / SR-04T models are designed for use with a liquid rinse aid and detergent. The Ecomiser SR-04 / SR-04T models equipped with liquid internal detergent and rinse aid pumps each have a tube exiting the machine at the lower rear. These tubes can simply be attached to detergent and rinse aid containers.
  • Page 12 - After connecting the table to the machine, check that the door is moving up and down without any interference between machine and table. 6.2 The corner installation - For a corner installation only, move the rack guide rail from the front position to the side position. Ecomiser SR-04 / SR-04T Manual 12/25 Page Rev.06...
  • Page 13 Another option is the table manufacture could weld a shaped bracket to mount the control on under the table. Display bracket should be located 10” (250mm) away from the machine. Ecomiser SR-04 / SR-04T Manual 13/25 Page Rev.06...

  • Page 14: Machine Operation

    Some items may not be cleaned as effectively, resulting in the need for either a longer cycle or repeat washing. WASHING PROCESS DIAGRAM Washing Pump Detergent Supply Rinsing Pump Rinse Supply Start Washing Waiting Rinsing Ecomiser SR-04 / SR-04T Manual 14/25 Page Rev.06...
  • Page 15 * While door is closed, press START/STOP button to initiate the washing cycle. * While READY LED is turned off, machine will not operate. * After each cycle is completed, it will move in sequence. Ecomiser SR-04 / SR-04T Manual 15/25 Page Rev.06...
  • Page 16 3) When the system is not set in MODE, UP/DOWN key will display time remaining of the cycle. 4) When the machine is not running, UP/DOWN button will configure washing time duration (65/90/120 seconds). 4-5 TEMPERATURE LOCK/UNLOCK Ecomiser SR-04 / SR-04T Manual 16/25 Page Rev.06...
  • Page 17 2) Press START/STOP key during water drain stage to stop the cycle and the machine completely. 7. ERROR MESSAGE 1) Er1: Washing temperature sensor  If OPEN or SHORT, temperature is above 110 ℃(230 ℉) Ecomiser SR-04 / SR-04T Manual 17/25 Page Rev.06...
  • Page 18 1) When the machine is turned off, all pre-set data will be saved. 2) Pre-set data consists of washing time/detergent time/waiting time/rinsing time/rinse agent time, temperature setting, buzzer sound, temperature unit, and model number. Ecomiser SR-04 / SR-04T Manual 18/25 Page Rev.06...
  • Page 19 It will increase the machine’s performance. When dishware is well organized, better performance in productivity can be achieved per rack. Ecomiser SR-04 / SR-04T Manual 19/25 Page Rev.06...

  • Page 20: Care & Cleaning

    The interior of The Ecomiser SR-04 / SR-04T models are made of quality stainless steel that has been electro polished to make it the smoothest surface available. The smooth surface prohibits the accumulation of dirt and bacteria inside the unit. If the water in your area is especially hard, however, lime deposits could form inside the machine.
  • Page 21 - Check the amount of rinse aid is proper and it is fresh. WASHING ITEMS The Ecomiser SR-04 / SR-04T models have no control over what is put in dishwasher once installed in a user’s place. You are solely responsible for what you wash in your Ecomiser SR-04 / SR-04T models dishwasher.

  • Page 22: Problems

    Even though the product is under warranty, if the problem is not caused by defective product workmanship or materials, you will be charged for a service call. If you’re still not sure, contact Ecomiser regional agent before you call a service technician. NORMAL PROBLEMS - Always, fresh detergent should be used.

  • Page 23: Customer Service

    Two-year parts, one-year labor from date of purchase. The Ecomiser SR-04 / SR-04T model replace parts for the stainless steel tank if it fails to hold water due to a manufacturing defect, such as rusting or cracking. The Ecomiser SR-04 / SR-04T model replacement parts and/or repair labor to correct defect in materials or workmanship.

  • Page 24: Wiring Diagram

    Annex 1: SR-04 Wiring Diagram Ecomiser SR-04 / SR-04T Manual 24/25 Page Rev.06...
  • Page 25 Annex 2: SR-04T Wiring Diagram Ecomiser SR-04 / SR-04T Manual 25/25 Page Rev.06...
