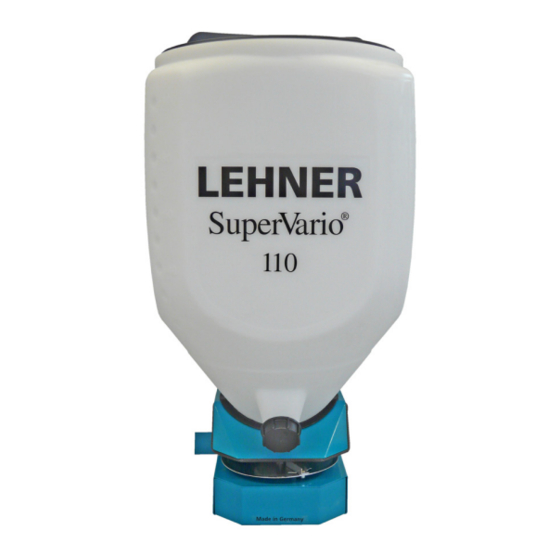

- Page 1 LEHNER SuperVario® Operating manual Spare parts list Version 3.0 onwards...
- Page 2 Description: The SuperVario® consists of a solid steel frame, a spreader vessel and the electrical components. The spreading disc and the slider / proportioning device are a part of the steel frame. The spreader vessel can be removed easily, which helps cleaning and maintenance of the proportioning device.
-
Page 3: Electrical Connections
Assembly: The SuperVario® can be installed in the front- as well as the rear wheel drive of a vehicle. May it be a tractor, a cross-country vehicle or a farm motorcycle / ATV. Installation on soil preparation equipment or a field sprayer is also possible. Since the SuperVario®... - Page 4 If your driving vehicle is not equipped with a generator, make sure that the battery is in a charged sufficiently. In case of poor electric supply, it may happen that the desired rotational speed is not attained. Before yourself getting down to extending the cables, you should consult the manufacturer.
-
Page 5: Automatic Starting
Regulating the speed: The rotational sped of the distributor plate can be adjusted in the range 200 – 300 revolutions/min. The value shown in the display is the set value, to which the speed of the spreading disc is tuned. If as a result of heavy load of the motor or poor electric supply, the speed of the motor cannot be attained, then on switching the motor on, the speed actually attained, is displayed. - Page 6 Fault : possible cause : There is crackling in the control panel: Defective contact with the power supply. No indication on the display: + and – keys are interchanged or The distributor plate does not rotate: the fuse is out of order Defective contact in the cable or the Allen screw under the distributor plate slackened...
-
Page 7: Operation
Operation: The spreading width is dependent on the quality of the material to be spread and also on the speed of the distributor plate. The possible spreading width is directly proportional to the coarse grained structure of the material. A spreading width of 24 m (depending on the manufacturer) can be achieved with spiral corn but cannot be achieved with light spreading materials such as seeds due to their low weight. -
Page 8: Safety Regulations
The spreading quantity is determined using the following formula: Desired quantity of spreading (kg/a) X Speed (km/h) X Spreading width Example: 5.0 kg /ha 12 km/h 12 m Now the correct value can be obtained by fresh turning in case of changed scale settings. - Page 9 Box circuit diagramm...
- Page 10 Declaration of EU-conformity corresponding to the EU-guidelines 89/392/EWG and 89/336/EWG LEHNER Agrar GmbH Häuslesäcker 5-9 D-89198 Westerstetten Tel.: +49 7348 9596-0 Fax: +49 7348 95 96-40 www.lehner.tv info@lehner.tv declare with the sole responsibility that the product SuperVario® to which this declaration is related, meets the appropriate, essential safety- and health standards of the EU-guidelines 89/392/EWG und 89/336/EWG as well as the standards of the other relevant EU-guidelines.
- Page 11 SuperVario® UNIT amount 1 frame 2 plastic square plate 150/150 mm 3 washer 4 fixed washer 5 slide plate 6 connector link 7 slide motor 8 screw 9 motor angle 10 steel square plate 150/150 mm 11 hopper base plate...
