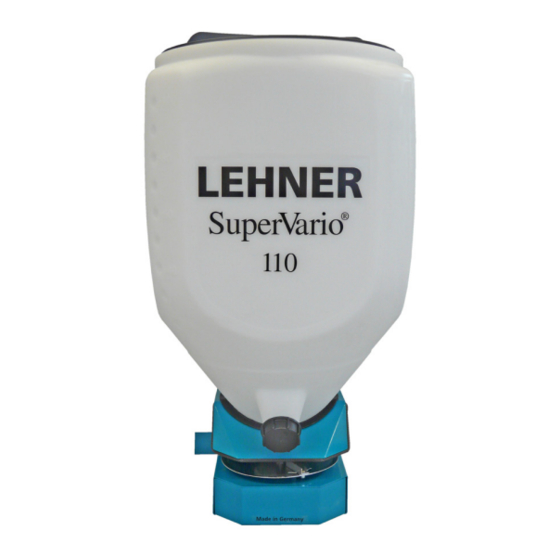

LEHNER SuperVario Operating Instructions With Replacement Parts List

Hide thumbs Also See for SuperVario:

Operating manual (12 pages)

Operating instructions with spare parts list (85 pages)

Table Of Contents

Table of Contents

Quick Links

LEHNER

SuperVario

Operating instructions with

replacement parts list

Control unit LAS 3

Software from version 2.5 onwards

Status: April 2012

Serial number: .................................................................

Software version: ...............................................................

Translation of the original operating manual

Table of Contents

Need help?

Do you have a question about the SuperVario and is the answer not in the manual?

Questions and answers

Rupert

April 12, 2025

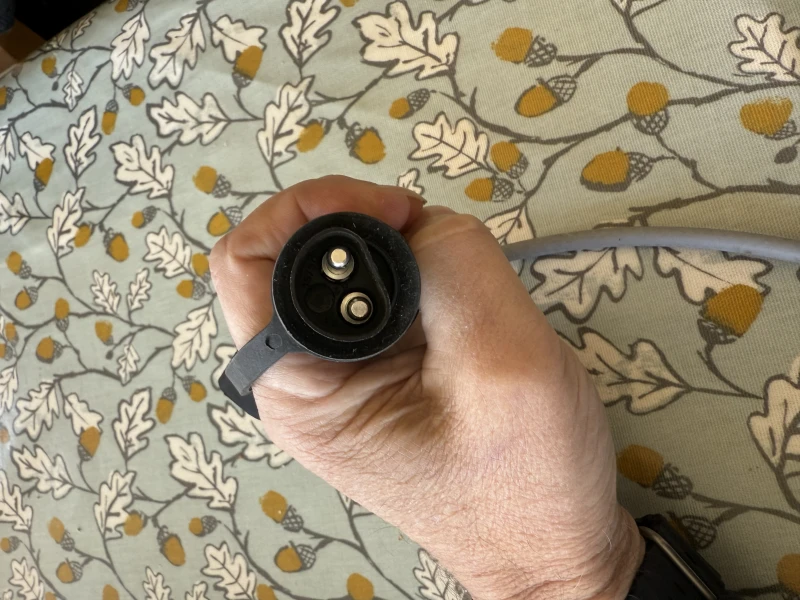

I need a new battery cable to fit t the two male pins to the control box(see photo below) Also do you sell the three point linkage frame to connect onto the three point linkage on the back of the tractor?

1 comments:

Mr. Anderson

April 12, 2025

Yes, LEHNER supplies a battery cable for the SuperVario that connects to the control box and the tractor battery. It is used when no three-pin socket is available. However, there is no information provided about a three-point linkage frame for attaching the SuperVario to the tractor.

This answer is automatically generated

Summary of Contents for LEHNER SuperVario

Page 1 LEHNER ® SuperVario Operating instructions with replacement parts list Control unit LAS 3 Software from version 2.5 onwards Status: April 2012 Serial number: ..............Software version: ............... Translation of the original operating manual...
Page 2 Operating manual LEHNER Agrar GmbH Häuslesäcker 5-9 D-89198 Westerstetten Tel.: +49 7348 959 622 Fax: +49 7348 959 640 www.lehner.eu info@lehner.eu It is not permitted for this document to be distributed or reproduced, or for its content to be utilised and disseminated unless these activities have been expressly allowed.
Page 3: Table Of Contents
1.2 About this operating manual ............5 1.3 Intended use ................6 1.4 Warranty ..................6 1.5 About your safety ............... 7 ® 2. Commissioning the SuperVario ........8 2.1 Mounting the frame ..............8 2.2 Electrical connection ..............8 2.3 Mounting the SuperVario ®.......................
Page 4 4.10 Headland manager (optional accessory) ........24 4.11 Checks ..................26 4.12 Spreading width and turning procedure ........26 4.13 Setting the auto-dose (optional accessory) ......28 4.14 Operating SuperVario in automatic mode ....... 30 ® 5. Maintenance and cleaning ..........33 5.1 Service ..................
Page 5: What You Should Know
Maintaining and servicing in accordance with the operating manual ensures the safety of the device and maintains the value of your SuperVario ® 1.2 About this operating manual...
Page 6: Intended Use
The SuperVario is used exclusively for spreading granules and seeds. ® 1.4 Warranty We offer a 24 month warranty on the SuperVario ® Caution! Faulty or incorrectly sized plugs and cables can lead to malfunctions. Only use original plugs and cables, or ones approved by the manufacturer.
Page 7: About Your Safety
Comply with the regulations of the spreading material manufacturer. • It is essential to comply with the instructions of the spreading material manufacturer in question. • LEHNER Agrar GmbH does not accept any liability for storage and use of the spreading material.
Page 8: Commissioning The Supervario
Operating manual Commissioning the SuperVario® ® Commissioning the SuperVario 2.1 Mounting the frame The SuperVario can be screwed on directly or an auxiliary bracket can be ® used. Mounting holes have been provided on the back of the frame. Please refer to the spreading charts for the delivery height (1.00 - 1.30 m).
Page 9: Mounting The Supervario
® 2.3 Mounting the SuperVario 1. Check whether the hopper ﬁ ts well in the hopper platform. 2. Using screws, attach the included bafﬂ e plate (arrow) perpendicular to the spreader. 3. Check that the SuperVario is securely attached. ®...
Page 10: Mounting The Control Panel
Operating manual Commissioning the SuperVario® 2.4 Mounting the control panel Caution! Ensure that the cable is not routed over any sharp edges. 1. Mount the support for the control panel in the vehicle cabin. 2. Always use the supplied battery cable even if there is a socket, because our battery cable is 4 mm².
Page 11: Operating The Supervario
Operating manual Operating the SuperVario® ® Operating the SuperVario 3.1 Controls on the control panel 1. On/off switch 2. Display 3. Open and close slide Slide open: green LED lights up Slide closed: yellow LED lights up 4. Empty indicator 5.
Page 12: The Display
Operating the SuperVario® Operating manual 3.2 The display 1. Arrow denotes the active line 2. Spreading disc speed 3. OK symbol for open slide 4. Slide opening Disc blockage Slide not open Error messages, see also chapter "6.4 Troubleshooting" on page 39.
Page 13: Switching On / Off
Operating manual Operating the SuperVario® 3.3 Switching on / off Danger! The drive motor starts immediately when switching on. Make sure that no-one is in the danger area when switching on. Press the button. > RPM The spreading disc speed and slide Slide opening are displayed.
Page 14: Setting The Speed
Operating the SuperVario® Operating manual Clearing the blockage: 1. Switch off the motor. 2. Manually turn the spreading disc or empty the hopper. 3.4 Setting the speed Press the button if necessary to select > RPM the speed, Slide the arrow points to the ﬁ rst line in the display.
Page 15: Setting The Slide Opening
Operating manual Operating the SuperVario® 3.5 Setting the slide opening If necessary, press the button to select Speed the slide; the arrow points to the second line in the display. > Slide Press the + or - button to set the slide opening.
Page 16: Setting The Spreading Width
Operating the SuperVario® Operating manual Switch off the machine. Press and hold the button for switching between speed and slide and the + button to switch the machine on. Keep all three buttons pressed for about 3 seconds. The slide performs its reference run.
Page 17: Setting The Agitator
Operating manual Operating the SuperVario® 3.9 Setting the agitator Because grasses, in contrast to seeds with a grain structure, have very poor ﬂ ow properties, the agitator must be adjusted accordingly. Setting for grasses: Upper stirring shaft on one side...
Page 18: Adapting The Empty Indicator To The Motor Output
Operating the SuperVario® Operating manual 3.11 Adapting the empty indicator to the motor output Note: Only make adjustments if the empty indicator setting was unsuccessful, see "4.6 Setting the empty indicator" on page 23. Empty the hopper. Then, in the main menu, use the + and - buttons to set the empty indicator to zero.
Page 19 Operating manual Operating the SuperVario® Press the + button to conﬁ rm; the actual idling speed output (LL) is transferred to the idling speed output table (LLT) in three numbers. This means the empty indicator has been readjusted.
Page 20: Settings And Displays
Settings and displays Operating manual Settings and displays The control element can be used to make the following settings: Language Empty indicator selection EHR signal EHR cycle Empty indicator setting Spreader type Spreader number Motor selection 4.1 Making settings Switch off the machine. Press the + and - buttons at the Language same time and hold them until...
Page 21: Selecting The Empty Indicator
Operating manual Settings and displays 4.3 Selecting the empty indicator Press the + or - button to select the Empty indicator empty indicator. One disc From spreading disc resistance via agitator motor with soft agitator and external empty indicator - not programmed or empty indicator switched off.
Page 22: Setting The Ehr Cycle
Settings and displays Operating manual 4.5 Setting the EHR cycle In the headland manager (optional accessory), you can set how often the slide should open and close depending on the lifting and lowering of the hydraulics. The EHR cycle can be set to max. 10 times. 4.6 Setting the empty indicator Depending on the requirement and spreading material, the empty indicator can be set to respond earlier or later.
Page 23: Displaying The Spreader Type
Settings and displays 4.7 Displaying the spreader type The control unit is intended for a variety of spreaders. The SuperVario is programmed at the factory. Various LEHNER spreaders ® can be operated with this control panel. Press toggle switch: Setting saved,...
Page 24 Settings and displays Operating manual 7-pin socket 1. Connect the connecting cable of the control panel to the 7-pin signal socket of the tractor. 2. Set the EHR signal of the spreader depending on whether the tractor emits the hydraulic signal when lifting or lowering. Sensor signal 1.
Page 25: Checks
Operating manual Settings and displays 4.11 Checks Voltage check In order to check the operating voltage (in V), the spreader must be on and the hopper ﬁ lled. Press the button for 5 seconds. The operating voltage is displayed for Voltage 14.0 V 8 seconds.
Page 26 Settings and displays Operating manual Turning 1. Put the spreader in the box or put the box over the spreader to catch the spreading material. 2. Set the speed of the spreading disc, the speed must be the speed used in practice, due to the suction effect.
Page 27: Setting The Auto-Dose (Optional Accessory)
Operating manual Settings and displays 4.13 Setting the auto-dose (optional accessory) Press the buttons. > Speed The speed of the spreading disc and Slide the slide opening are displayed. The slide is always closed when switching on the drive motor. Press the button.
Page 28 Settings and displays Operating manual Press the button to conﬁ rm the choice of spreading width. Output kg/ha "ﬂ ashes". Press the + or - button to set the output amount. Press the button to conﬁ rm the output kg/ha. The control panel is programmed for automatic operation.
Page 29: Operating Supervario In Automatic Mode
® 4.14 Operating SuperVario in automatic mode Connect the speed signal (GPS receiver or 7-pin signal socket). The stored table value continues to appear in the display. The quantity...
Page 30 Settings and displays Operating manual Press the button. > Speed The speed of the 'spreading disc and Slide the slide opening ar displayed. The slide is always closed when switching on the drive motor. Press the button. AUTO The set spreading material, the spreading width and the output kg/ha are displayed.
Page 31 Operating manual Settings and displays If the speed travelled at is lower than Yellow mustard 2 km the value stored in the spreading chart in the control unit, the message Too slow "Too slow" appears in the display. The minimum speed stored in the spreading chart is included in the calculation, not the speed actually being travelled at.
Page 32: Maintenance And Cleaning
Maintenance and cleaning Operating manual Maintenance and cleaning 5.1 Service The dosing device and slide should be inspected and cleaned from time to time. In particular, spreading material with a high dust content can cause the slide unit to clog. 1.
Page 33: Cleaning
Operating manual Maintenance and cleaning 5.2 Cleaning The hopper can be almost completely emptied by means of the residue discharge. 1. Unscrew the hopper. 2. Clean spreader and hopper with a broom.
Page 34: Appendix
SuperVario ® Product: 70/110/170 Type: Function: The SuperVario is a spreader for spreading slug pellets and ® seeds for grasses and intermediate crops such as mustard, phacelia, fodder radish and turnip rape. It is produced in three sizes. These differ in the hopper capacity;...
Page 35 EN ISO 14982:2009 and forestry machinery Source of the other technical standards and speciﬁ cations applied: EN ISO 12100-1:2003-11 Safety of Machinery – Basic concepts; general principles for design – Part 1: Basic terminology, methodology Westerstetten, 12.04.2009 Signature Place, date Helmut Lehner...
Page 36: Identiﬁ Cation
Note the serial number in this operating manual so that it is readily available for inquiries. The hardware and software versions are LEHNER GmbH brieﬂ y displayed when the control panel is switched on. LAS3 V2.5...
Page 37: Distribution Box Reference List
Operating manual Appendix 6.3 Distribution box reference list...
Page 38: Troubleshooting
Appendix Operating manual 6.4 Troubleshooting...
Page 39: Replacement Parts
Operating manual Appendix 6.5 Replacement parts...
Page 40 Appendix Operating manual Status 04/2012 LEHNER Designation Quantity Article no. 1 Steel frame 80356 2 Dosage slide, bottom "white" 80281 3 U disc 4 Adjusting washer 5 Slide 80234 6 Double spherical bearings with ball stud 73213 7 Slide motor...
Page 41: Spreading Charts
Operating manual Appendix 6.6 Spreading charts...
Page 42 Appendix Operating manual...
Page 43 Operating manual Appendix...
Page 44 Appendix Operating manual...
Page 45 Operating manual Appendix...
Page 46 Appendix Operating manual...
Page 47 Operating manual Appendix...
Page 48 Appendix Operating manual...
Page 49 Operating manual Appendix...
Page 50 Appendix Operating manual...
Page 51 Operating manual Appendix...
Page 52 Appendix Operating manual...
Page 53 Operating manual Appendix...
Page 54 Appendix Operating manual...
Page 55 Operating manual Appendix...
Page 56 Appendix Operating manual...
Page 57 Operating manual Appendix...
Page 58 Appendix Operating manual...
Page 59 Operating manual Appendix...
Page 60 Appendix Operating manual...
Page 61 Operating manual Appendix...
Page 62 Appendix Operating manual...
Page 63 Operating manual Appendix...
Page 64 Appendix Operating manual...
Page 65 Operating manual Appendix...
Page 66 Appendix Operating manual...
Page 67 Operating manual Appendix...
Page 68 Appendix Operating manual...
Page 69 Operating manual Appendix...
Page 70 Appendix Operating manual...
Page 71 Operating manual Appendix...
Page 72 Appendix Operating manual...
