Operating manual with parts list

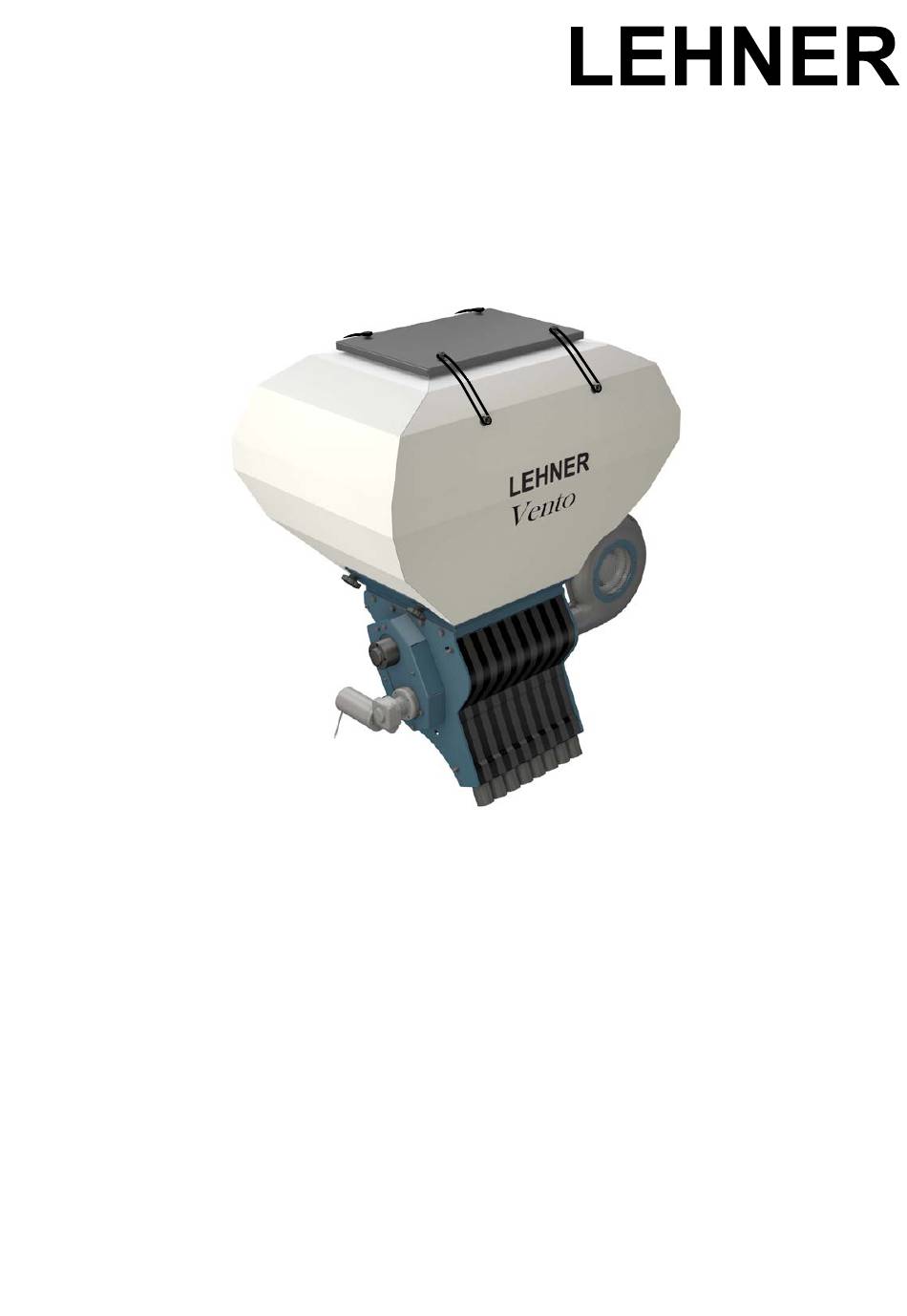

Vento
®
Controller:
Software:
Last updated:
Serial number:
Software version:
LAS PSM
from Version 8.08 onwards
February 2015
..................................................
..................................................
Translation of original operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vento and is the answer not in the manual?

Questions and answers

Related Manuals for LEHNER Vento

Summary of Contents for LEHNER Vento

  • Page 1 Operating manual with parts list Vento ® Controller: LAS PSM Software: from Version 8.08 onwards Last updated: February 2015 Serial number: ..........Software version: ..........Translation of original operating manual...
  • Page 2 Publisher's information Publisher's information LEHNER Agrar GmbH Häuslesäcker 5-9 D-89198 Westerstetten Tel.: (+49) 7348 95 960 Fax: (+49) 7348 959 640 www.lehner.eu info@lehner.eu This document is not allowed to be distributed, duplicated or utilised, nor is its content allowed to be communicated, without express permission.

  • Page 3: Table Of Contents

    About your safety.................5 Notices used..................5 Intended use..................6 Reasonably predictable misuse............6 Scope of supply................... 6 Warranty....................7 Technical data of Vento®..............7 1.10 Description of function................. 7 2 Mounting and start-up................8 Implement holder................. 8 Installing hoses..................8 Electrical connection................9 Filling the Vento®................
  • Page 4 Rotary feeder shaft................26 Drive belt....................27 Brushes....................28 Blower....................29 5 Storage and disposal................30 6 Appendix....................31 Identification..................31 Dimensions..................31 Overview of rotary feeder shafts............33 Formulas.................... 33 Spreading material lists..............34 Spare parts and accessories............. 39 4 / 52 Vento ®...

  • Page 5: What You Should Know

    Spreading tables and additional information about the fertiliser used can be requested from the manufacturer in • question. LEHNER Agrar GmbH does not accept any liability for storage and use of spreading material (seeds and fertilis- • er). 1.4 Notices used...

  • Page 6: Intended Use

    The seeds and fertiliser used must be free-flowing and, due to technical reasons, permit application by dosing. In case anything is unclear, please contact the product specialists at Lehner. The pneumatic granulate doser is only allowed to be used within the scope of its designated use.

  • Page 7: Warranty

    At the time of manufacture, we are not aware of any negative effects from the seed and fertiliser on the materials of the spreader. 1.8 Warranty Subject to use in accordance with the designated use, LEHNER Agrar GmbH offers a 24-month warranty on the spreader. Caution! Danger of short circuit! Faulty or incorrectly sized plugs and cables can lead to malfunctions.

  • Page 8: Mounting And Start-Up

    Before start-up, make sure that the implement, spreading material hopper and hopper cover have • been correctly attached. 2.1 Implement holder The Vento is supplied mounted on the universal holder ® as standard. The mounting is specifically dependent up- on the carrier vehicle provided, and must be adapted to its conditions.

  • Page 9: Electrical Connection

    1. Mount support for the control panel in the vehicle cabin. 2. Plug the control panel cable into the 3-pin socket (1) of the supplied battery cable. Connect connection (2) to the negative terminal of the battery (not to the bodywork). Vento 9 / 52 ®...

  • Page 10: Filling The Vento

    Advice! To ensure an optimum electrical power supply, use the supplied battery cable. The spreader is ready for use. 2.4 Filling the Vento ® Warning! Risk of injury during operation if the spreading material hopper is open, due to spread- ing material being thrown out and rotating parts.
  • Page 11 Mounting and start-up Before start-up, make sure that the hopper on the Vento has been firmly bolted in place. To do this, check the four ® knurled screws (1). Filling 1. Make sure that the spreader and blower are switched off.

  • Page 12: Operation

    The blower starts when set to at least 20% of the blower power. 3.3 Information shown on the display Automatic dosing 1. Selected spreading table 2. Working width 3. Output rate in kg/ha 12 / 52 Vento ®...

  • Page 13: General Setting Possibilities And Displays

    Use the On/Off key to exit the menu. 3.4.2 Displaying product lists and deleting products Switch off the spreader. L ng key, the +key, the - key and the On/Off key simultaneously. Keep all three keys pressed for about 3 seconds. Engli Vento 13 / 52 ®...
  • Page 14 Please note that at this item is only available in the automatic area. The spreading value stored in the spreading table can be changed temporarily. This change is not stored when the spreader is switched off. 14 / 52 Vento ®...
  • Page 15 Sensor signal Advice! Please note that the contact surfaces (1) of the sensor are only located on the left and right sides. Vento 15 / 52 ®...
  • Page 16 Press the toggle switch three times. Press the toggle switch to display the setting for the speed sen- sor of the EHR signal. Adapt the speed signal with the +/- keys. Factory setting: 130 /m 16 / 52 Vento ®...
  • Page 17 The spreader starts the calibration procedure. The calibration procedure has finished as soon as the spreader stops, and a weight value is shown on the display. 4. Weigh the spreading material dispensed and input this weight: Vento 17 / 52 ®...

  • Page 18: Automatic Dosing

    The output rate, working width and product can be set directly, see Chapter 3.4.3, "Changing the settings". Display with automatic dosing: The following appears on the display: Product name (spreading table used) • Distance between plant or seed rows • Output rate • 18 / 52 Vento ®...

  • Page 19: Setting The Blower

    Using the dial, it is possible to set the blower power according to the product type and output rate, until achieving satisfactory material transport. Advice! Setting a high blower power increases energy consumption. Lateral distribution can be varied by means of the blower power. Vento 19 / 52 ®...

  • Page 20: Changing The Settings

    Manual operation is possible with or without electronic lifting gear control (EHR). Manual operation without EHR Setting the speed Press the +/- keys to change the speed. Warning! Risk of injury! Make sure that no other persons or animals are in the danger zone during operation. 20 / 52 Vento ®...

  • Page 21: Residual Discharge

    The residual amount of granulate must be collected in containers with a sufficient capacity. Empty out larger amounts through the residual discharge opening. Residual discharge for smaller amounts: mp yi g Press the toggle switch twice within 1 second. Vento 21 / 52 ®...

  • Page 22: Error Message

    Chapter 4.3, "Rotary feeder shaft". Rotary feeder shaft does not turn Hopper, rotary feeders or brushes Check hopper, rotary feeders or heavily contaminated brushes for contamination and clean if necessary, see Chapter 4, "Main- tenance and cleaning". 22 / 52 Vento ®...
  • Page 23 Check the distance and set if neces- netic sensor magnet too large sary. Distance should be less than or equal to 8 mm. Sensor installed in wrong direction Note the installation direction of the sensor. Check the cables. Vento 23 / 52 ®...

  • Page 24: Maintenance And Cleaning

    After 100 operating hours or every 4.4 "Drive belt" month and at the end of the season Check all felt seals for wear After 100 operating hours or every month and at the end of the season 24 / 52 Vento ®...

  • Page 25: Spreading Material Hopper

    Emptying the hopper through the residual dis- charge hatch The hopper can be emptied through the hatch (1). 1. Switch off the Vento ® 2. Place a collecting container under the hatch (1). 3. Unscrew the knurled screws (2) and open the hatch.

  • Page 26: Rotary Feeder Shaft

    4.3 Rotary feeder shaft Advice! Different spreading material may require special rotary feeders. For changing, it is recommended that you keep pre-assembled shafts available according to the size of the rotary feeders, and always exchange the entire shaft. 26 / 52 Vento ®...

  • Page 27: Drive Belt

    Checking/renewing the drive belt 1. Unscrew 4 screws (1). 2. Remove drive (2) completely. 3. Checking the drive belt and renewing if necessary 4. Reinstall drive (2). Vento 27 / 52 ®...

  • Page 28: Brushes

    7. Push the brushes back in, at least until they are flush. Caution: Different brushes, make sure the arrange- ment is correct! 8. Reattach the holder with the 3 screws (1). 9. Reinstall the drive and rotary feeder shaft. 28 / 52 Vento ®...

  • Page 29: Blower

    If there is a malfunction, check the blower for blockages due to contamination. Clean the blower in dry condition if necessary, and check it can turn freely. The blower cover with the intake grille can be removed for cleaning if necessary, by unscrewing the screws. Re- new the self-locking screws when reinstalling the cover! Vento 29 / 52 ®...

  • Page 30: Storage And Disposal

    Make sure that no fertiliser is spilled onto the ground. Comply with the instructions from the fertiliser manufacturer regarding handling, storage and disposal of the fertilisers. Dispose of the spreader and pesticide or fertiliser according to local regulations and laws. 30 / 52 Vento ®...

  • Page 31: Appendix

    The serial number of the spreader is shown at the rear right on the inside of the frame. Note the serial number in this operating manual so that it is readily available for inquiries. 6.2 Dimensions Vento 8-row with 120 l hopper Vento 31 / 52...
  • Page 32 Appendix Vento 8-row with 230 l hopper (All dimensions are subject to technical modifications.) 32 / 52 Vento ®...

  • Page 33: Overview Of Rotary Feeder Shafts

    1 x green per hose (73316) 2 x green per hose (73319) 1 x blue per hose (73317) 2 x blue per hose (73320) 1 x red per hose (73318) 2 x red per hose (73321) 6.4 Formulas Vento 33 / 52 ®...

  • Page 34: Spreading Material Lists

    553.60 g/min 1087.20 g/min 692.00 g/min 1359.00 g/min 830.40 g/min 1630.80 g/min 968.80 g/min 1902.60 g/min 1107.20 g/min 2174.40 g/min 1245.60 g/min 2446.20 g/min 1384.00 g/min 2718.00 g/min 1522.40 g/min 2989.80 g/min 1660.80 g/min 3261.60 g/min 34 / 52 Vento ®...
  • Page 35 115.60 g/min 239.20 g/min 144.50 g/min 299.00 g/min 173.40 g/min 358.80 g/min 202.30 g/min 418.60 g/min 231.20 g/min 478.40 g/min 260.10 g/min 538.20 g/min 289.00 g/min 598.00 g/min 317.90 g/min 657.80 g/min 346.80 g/min 717.60 g/min Vento 35 / 52 ®...
  • Page 36 409.20 g/min 818.80 g/min 511.50 g/min 1023.50 g/min 613.80 g/min 1228.20 g/min 716.10 g/min 1432.90 g/min 818.40 g/min 1637.60 g/min 920.70 g/min 1842.30 g/min 1023.00 g/min 2047.00 g/min 1125.30 g/min 2251.70 g/min 1227.60 g/min 2456.40 g/min 36 / 52 Vento ®...
  • Page 37 256.80 g/min 508.00 g/min 321.00 g/min 635.00 g/min 385.20 g/min 762.00 g/min 449.40 g/min 889.00 g/min 513.60 g/min 1016.00 g/min 577.80 g/min 1143.00 g/min 642.00 g/min 1270.00 g/min 706.20 g/min 1397.00 g/min 770.40 g/min 1524.00 g/min Vento 37 / 52 ®...
  • Page 38 2 x red Speed [rpm] 516.00 g calibration sample 25.80 g/min 51.60 g/min 103.20 g/min 154.80 g/min 206.40 g/min 258.00 g/min 309.60 g/min 361.20 g/min 412.80 g/min 464.40 g/min 516.00 g/min 567.60 g/min 619.20 g/min 38 / 52 Vento ®...

  • Page 39: Spare Parts And Accessories

    Appendix 6.6 Spare parts and accessories 6.6.1 Vento spare parts ® Vento 8-row ® Component number Description 73323 Vento blower ® 73326 Agitator bearing unit comprising 81842, 81762, 81867 81842 Agitator bearing holder 81762 DIN 625 SKF - SKF 6001-2RS1...
  • Page 40 Appendix Vento 8-row ® Component number Description 81872 Round belt 81868 Felt ring 37-25-5 81598 Hose grommet 40 / 52 Vento ®...
  • Page 41 Description 81764 120 litre hopper sheet metal 81765 Tank cover for 120 litre hopper 81786 Rubber clamping band 20 cm for Vento hopper 81787 Button (back) isosceles for Vento hopper 81788 Button (black) for Vento hopper cover 80116 Star-knob screws 50 mm M8x14 mm...
  • Page 42 Description 81772 230 litre hopper Vento 81773 Tank cover for 230 litre hopper 81786 Rubber clamping band 20 cm for Vento hopper 81787 Button (back) isosceles for Vento hopper 81788 Button (black) for Vento hopper cover 80116 Star-knob screws 50 mm M8x14 mm...
  • Page 43 Rotary feeder shaft felt ring holder pressure piece end Hexagon nut DIN 439 - M18 x 1.5 Washer DIN 125 - A 19 81644 Rotary feeder 0 ccm 81638 Rotary feeder 2.5 ccm 81791 Rotary feeder distance 7 mm Vento 43 / 52 ®...
  • Page 44 Rotary feeder shaft felt ring holder pressure piece end Hexagon nut DIN 439 - M18 x 1.5 Washer DIN 125 - A 19 81644 Rotary feeder 0 ccm 81638 Rotary feeder 2.5 ccm 81791 Rotary feeder distance 7 mm 44 / 52 Vento ®...
  • Page 45 Rotary feeder shaft felt ring holder pressure piece end Hexagon nut DIN 439 - M18 x 1.5 Washer DIN 125 - A 19 81644 Rotary feeder 0 ccm 81791 Rotary feeder distance 7 mm 81639 Rotary feeder 5.0 ccm Vento 45 / 52 ®...
  • Page 46 Rotary feeder shaft felt ring holder pressure piece end Hexagon nut DIN 439 - M18 x 1.5 Washer DIN 125 - A 19 81644 Rotary feeder 0 ccm 81791 Rotary feeder distance 7 mm 81639 Rotary feeder 5.0 ccm 46 / 52 Vento ®...
  • Page 47 Rotary feeder shaft felt ring holder pressure piece end Hexagon nut DIN 439 - M18 x 1.5 Washer DIN 125 - A 19 81644 Rotary feeder 0 ccm 81640 Rotary feeder 10 ccm 81791 Rotary feeder distance 7 mm Vento 47 / 52 ®...
  • Page 48 Rotary feeder shaft felt ring holder pressure piece end Hexagon nut DIN 439 - M18 x 1.5 Washer DIN 125 - A 19 81644 Rotary feeder 0 ccm 81640 Rotary feeder 10 ccm 81791 Rotary feeder distance 7 mm 48 / 52 Vento ®...
  • Page 49 Transport and storage frame 81804 Component locking plate Hexagon bolt ISO 4018 - M12 x 55 80410 U-bracket M12x50 galvanised Washer DIN 125 - 2-B 13 Hexagon nut DIN 934 - M12 Washer DIN 125 - 2-B 13 Vento 49 / 52 ®...
  • Page 50 Baffle plate Compo- Object Number Description nent 81824 Baffle plate Vento base sheet 81727 Stauf pipe clip size 5-38 Cheesehead screw DIN 912 - M6 x 60 Hexagon nut DIN 985 - M6 Washer DIN 125 - 1-B 6.4 81907 U-bracket for baffle plate 40x40 M8 galvanised Washer DIN 125 - A 8.4...
  • Page 51 Vento 51 / 52 ®...
  • Page 52 LEHNER Agrar GmbH Häuslesäcker 5-9 D-89198 Westerstetten Tel.: (+49) 7348 95 960 Fax: (+49) 7348 959 640 www.lehner.eu info@lehner.eu 52 / 52 Vento ®...
