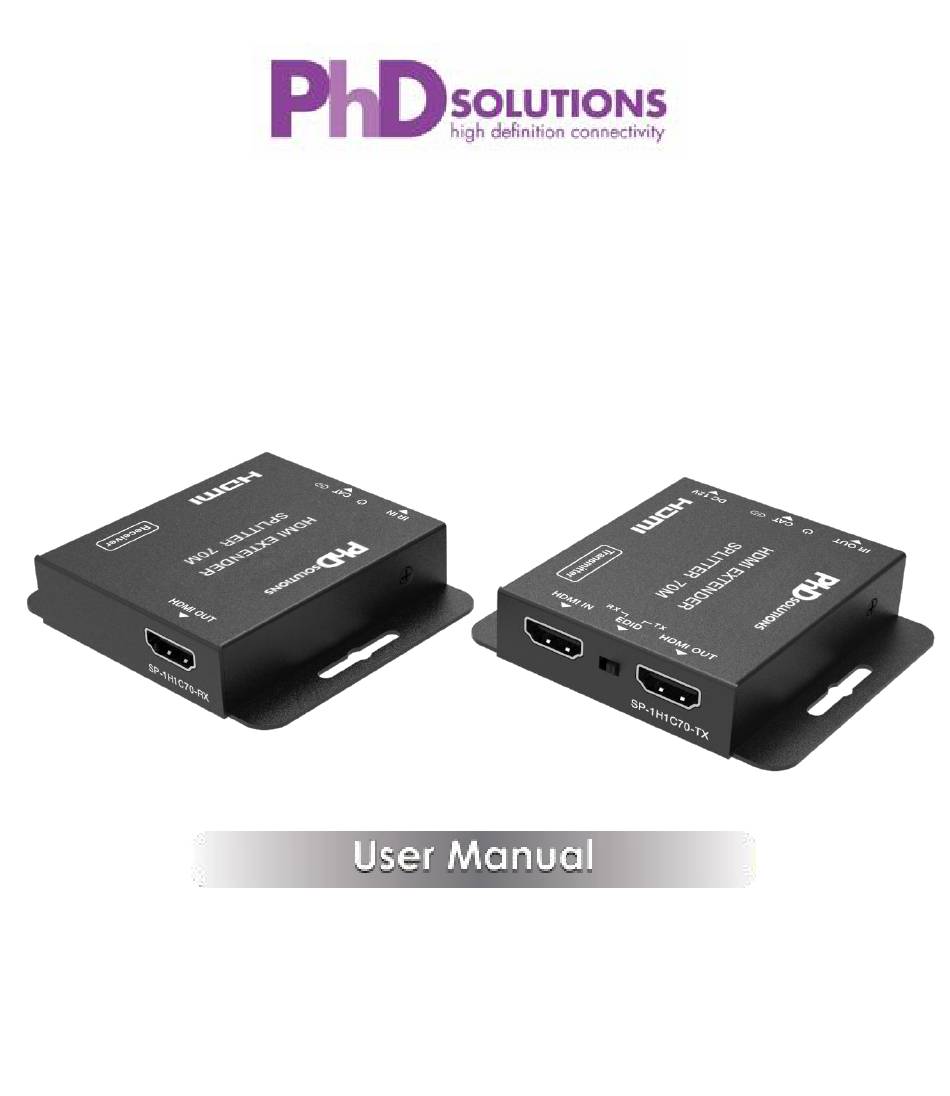

- Page 1 SP-1H1C70-KIT HDMI over CAT Extender-Splitter with IR (70m) VER 1.0...
- Page 2 Thank you for purchasing this incredible product For best performance and safety, please read these instructions carefully before connecting and operating this product. Please keep this manual for future reference. Surge protection device recommended This product contains This product contains sensitive electrical components that may be damaged by electrical spikes, power surges, electrostatic discharge (ESD), lightning strikes or transients.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction..................... 1 2. Features....................1 3. Package Contents................2 4. Specifications..................2 5. Operation Controls and Functions..........4 5.1 Transmitter Panel................4 5.2 Receiver Panel................5 5.3 IR Pinout Diagram................6 Application Diagram. -
Page 4: Introduction
1. Introduction This HDMI Extender-Splitter can extend 4K30 high-definition video and audio signals up to 131Ft /40m and 1080P up to 230ft / 70m over a single CAT cable. It supports resolutions of up to 4K2K@30Hz 4:4:4 and HDCP 1.4 An HDMI loop output port will split the HDMI Input to a local Display. -
Page 5: Package Contents
3. Package Contents ① 1 × HDMI Transmitter ② 1 × HDMI Receiver ③ 1 × IR Emitter Cable (1.5 meters) ④ 1 × IR Receiver Cable (1.5 meters) ⑤ 1 × 12V/1A DC Power Adapter ⑥ 1 × User Manual 4. - Page 6 Connection Input: 1 x HDMI Type A [19-pin female] Outputs:1 x HDMI Type A [19-pin female] Transmitter 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x CAT OUT [RJ45, 8-pin female] Inputs: 1x IR IN [3.5mm Stereo Mini-jack] Receiver 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI Type A [19-pin female] Mechanical Housing...
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description HDMI signal input port. Connect to HDMI HDMI IN source device such as DVD or Set-top box. The switch is used for selecting EDID: Switch to the right position, the extender will EDID copy HDMI loop out displays EDID DIP switch... -
Page 8: Receiver Panel
When the transmitter is connected to HDMI Link LED source, the LED will be on. DC 12V power supply port. DC 12V 5.2 Receiver Panel Name Function Description HDMI signal output port. Connect to HDMI HDMI OUT display device such as HDTV. Connect to the supplied IR receiver cable, IR IN the IR signal will emit to the IR OUT port of... -
Page 9: Ir Pinout Diagram
5.3 IR Pinout IR receiver and emitter pin’s definition is as below:... -
Page 10: Application Diagram
6. Application Diagram The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 11: Cat Cable Termination
7.CAT Cable Termination Diagram The CAT cable should be terminated properly with the correct RG45 connectors according to TIA568B termination standard shown below... -
Page 12: Product Warrantee
Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts. - Page 13 Before being able to claim under this Limited Warranty, the owner of the Product must (a) notify PHD Solutions of the intention to claim during the Warranty Period and providing a description of the alleged failure, and (b) comply with PHD Solutions’...
- Page 14 Unauthorized use of the Product or software can impair the Product’s performance and may invalidate this Limited Warranty. PHD Solutions does not warrant that operation of the Product will be error-free or uninterrupted or that the Product will in every case process all data correctly.
- Page 15 5.LIMITATION OF DAMAGES In addition to the above warranty disclaimers, in no event will PHD Solutions be liable for any consequential, incidental, exemplary, or special damages, including any damages for lost data or lost profits, arising from or relating to this limited warranty or the product, and PHD Solutions’...
- Page 16 (electronic, mechanical, magnetic, optical, chemical, manual, or otherwise) without express written permission and consent from PHD Solutions. © Copyright 2020 PHD Solutions. All Rights Reserved. Version 1.0 – December 2020 www.phdsolutions.co...
