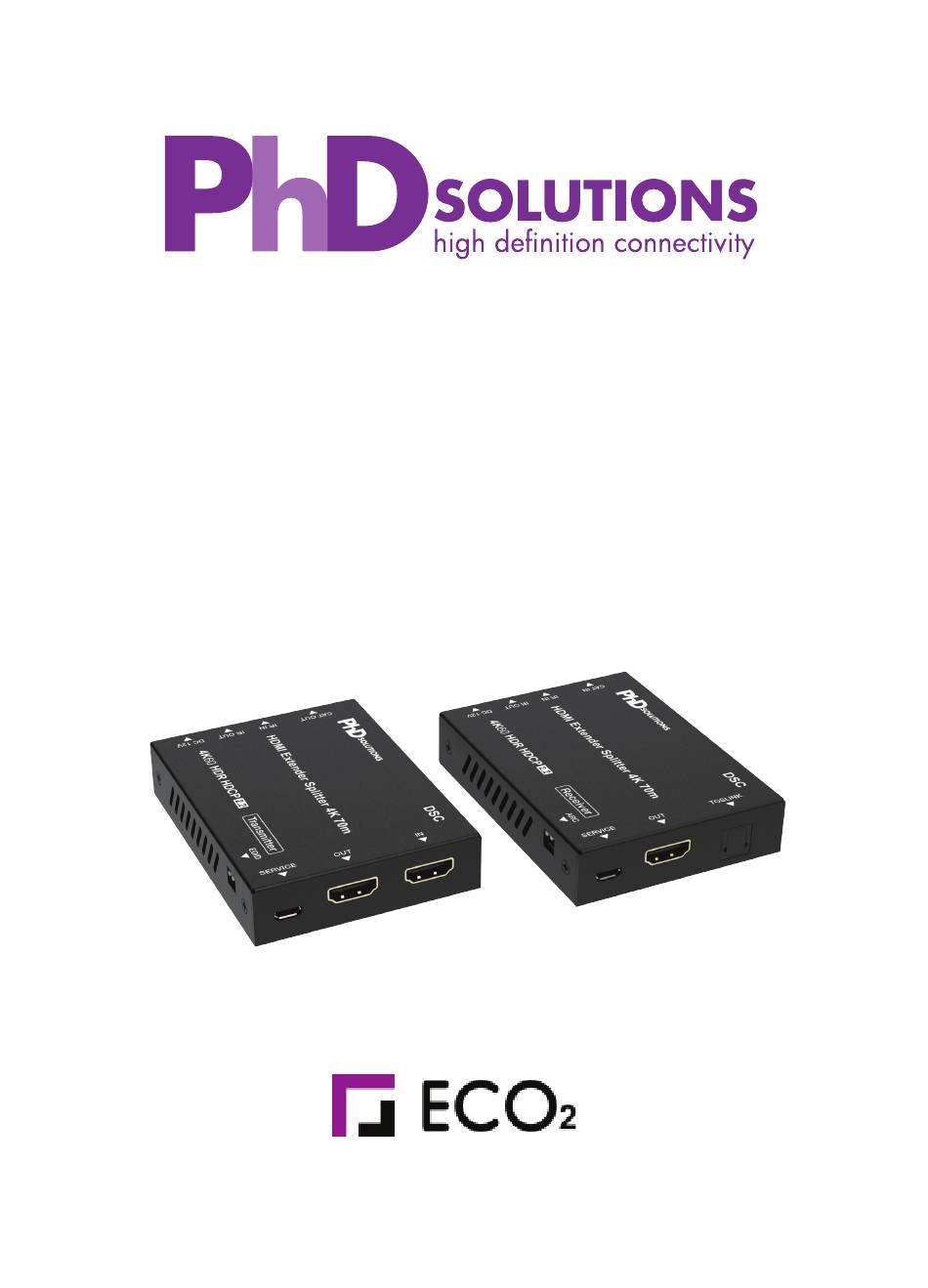

- Page 1 SP-4K1H1C70-KIT 18Gbps HDMI over Cat Extender-Splitter with Bi-directional IR (70m) VER 1.0_ 01-01-2025 SP-4K1H1C70-KIT manual...
-
Page 2: Table Of Contents
This will minimize interference of the unshielded twisted pairs in the CAT5e/6 cable, which can cause problems with the signal transmission. Only use the power supply supplied with the unit, or a PhD Solutions supplied replacement. Do not disassemble any of the equipment. This will void the manufacturer’s warranty. -
Page 3: Introduction
1. Introduction The 18Gbps HDMI Extender-Splitter utilises advanced Display Stream Compression (DSC) technology to extend high-definition video and audio signals up to 230ft/70m over a single CAT cable. Supporting resolutions up to 4K@60Hz 4:4:4, HDR10+, HLG, Dolby Vision, and HDCP 2.2, it delivers stunning visuals with visually lossless low latency lightweight compression technology. -
Page 4: Package Contents
3. Package Contents ① 1x 18Gbps HDMI Extender (Transmitter) ② 1x 18Gbps HDMI Extender (Receiver) ③ 1x IR Blaster cable (1.5m) ④ 1x IR Wideband Receiver cable (1.5m) ⑤ 4x Mounting Ears ⑥ 8x Machine Screws (KM3*4) ⑦ 1x 12V/1A Locking Power Adapter ⑧... - Page 5 Connection Input: 1× IN [HDMI Type A, 19-pin female] Output: 1× OUT [HDMI Type A, 19-pin female] 1× CAT OUT [RJ45] Transmitter Control: 1× SERVICE [Micro-USB jack] 1× IR IN [3.5mm Stereo Mini-jack] 1× IR OUT [3.5mm Stereo Mini-jack] Input: 1×...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel SERVICE IR OUT CAT OUT IR IN DC 12V EDID Name Function Description SERVICE Firmware update port. HDMI signal loop output port. Connect to HDMI display devices with HDMI cable. HDMI signal input port. Connect to HDMI source device with HDMI cable. -
Page 7: Receiver Panel
Name Function Description DC 12V/1A power input port. Note that the extender supports PoC function, it means that either transmitter or DC 12V receiver is powered by the 12V/1A power adapter. Power required on one side only. Use the DIP switch to set EDID. (Switching to the upper end indicates 1;... - Page 8 Name Function Description ▪ Illuminating: Transmitter and Receiver are in good connection Link Signal status. Indicator ▪ Flashing: Transmitter and Receiver connection status is poor. (Green) ▪ Dark: Transmitter and Receiver are not connected. ▪ Illuminating: HDMI signal with HDCP. Data Signal Indicator ▪...
-
Page 9: Ir Pin Definition
5.3 IR Pin Definition IR Receiver and Blaster pin’s definition is as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters;... -
Page 10: Application Example
6. Application Example SERVICE IR OUT CAT OUT IR IN DC 12V Transmitter Power Supply CAT 6/6a IR Blaster DVD or Blu-ray Player IR Receiver UHDTV SERVICE TOSLINK CAT IN IR IN IR OUT DC 12V Receiver IR Blaster IR Receiver Audio Amplifier UHDTV The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks... -
Page 11: Cat Cable Termination Diagram
Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions Limited (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts. - Page 12 If the Product fails to conform to this Limited Warranty during the Warranty Period, PHD Solutions will, at its sole discretion, either (a) repair or replace any defective Product or component; or (b) accept the return of the Product and refund the money actually paid by the original purchaser for the Product.
- Page 13 5. LIMITATION OF DAMAGES In addition to the above warranty disclaimers, in no event will PHD Solutions be liable for any consequential, incidental, exemplary, or special damages, including any damages for lost data or lost profits, arising from or relating to this limited warranty or the product, and PHD Solutions’...
- Page 14 6. LIMITATION OF LIABILITY PHD Solutions disclaims all liability of any kind of PHD Solutions’ suppliers. The PHD Solutions online services (“services”) may provide you information (“product informa- tion”) regarding your products performance and/or peripherals connected to your product (“product peripherals”). The type of product peripherals that may be connected to your product may change from time to time.
- Page 15 www.phdsolutions.co...
